TBS5590 Multi-standard TV Tuner USB2.0 + TSReader Professional MPEG-2 Transport Stream Analyzer


Model#: TBS5590 + TSReader

List Price: 698.00
Price:
568.00
19%
Save:US$130.00 ( 19% OFF )
Weight: 800 g(s)
Ship From: China
You will earn 568 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

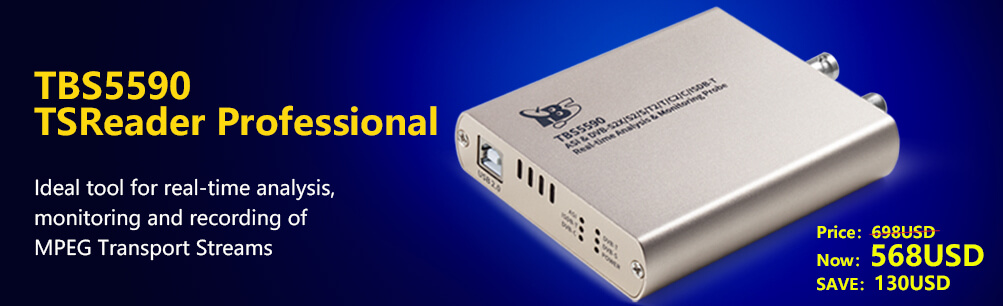

TBS5590 is a DVB multi-standard external TV tuner box with USB2.0 interface. It is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T. Through the USB interface, you can easily plug the TBS5590 Universal TV Tuner box to your desktop or laptop PC for watching or recording different standards digital TV channels.

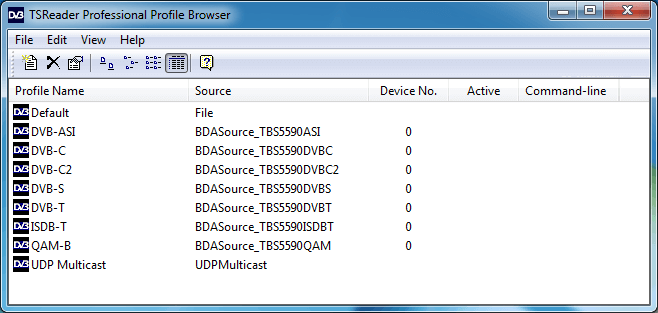

Coupled with TSReader software, TBS5590 is an ideal tool to do real-time analysis, monitoring and recording of MPEG Transport Streams. TBS5590 is supported in TSReader 2.8.53 and later version, which includes source modules for each mode and will automatically reprogram the demodulator when changing modes.

Features:

  • DVB-S2X/S2/S/T2/T/C2/C/ASI/ISDB-T, Multi-standard digital TV supported.
  • Universal USB TV tuner Box for watching or recording live TV channels.
  • Supports real-time TV stream analysis & monitoring
  • Supports bitrate measurement
  • Supports elementary stream information analyzing.

Specification:

Digital TV Standards:
ISDBT COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVBT2 and T2-Lite Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC: QPSK, 16QAM, 64QAM.256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
DVBC2 COFDM Demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVBC and ITU-T j.83ANNEX B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/DVBS2/DVBS2X Symbol rates: 1-45Msps

FEC:

DVB-S/S2

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2x
QPSK: 13/45, 9/20, 11/20
2_4_2_APSK: 100/180, 104/180
8PSK: 23/36, 25/36, 13/188_8_APSK: 90/180, 96/180, 100/180, 18/30, 20/30
16APSK: 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
4_12_16rb_APSK: 2/3
4_8_4_16_APSK: 128/180, 132/180, 140/180
DVB-ASI Up to 200Mbps
Power consumption
Input/power 12V/2A
Temperature 0~60℃
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available USB 2.0 slot
Digital TV signal ISDB-T/DVB-T2/C2/S2X/S2/T/C/S, and DVB-ASI
Dimension:
TV tuner box size 103*88*22mm
Net weight 260g
Gift Box Size 210*174*55mm
Gross Weight 800g
Package Contents 1x TBS5590
1X USB Cable
DC 12V Adapter
TSReader Digital download within 24 hours of order

More about TSReader, click here!
