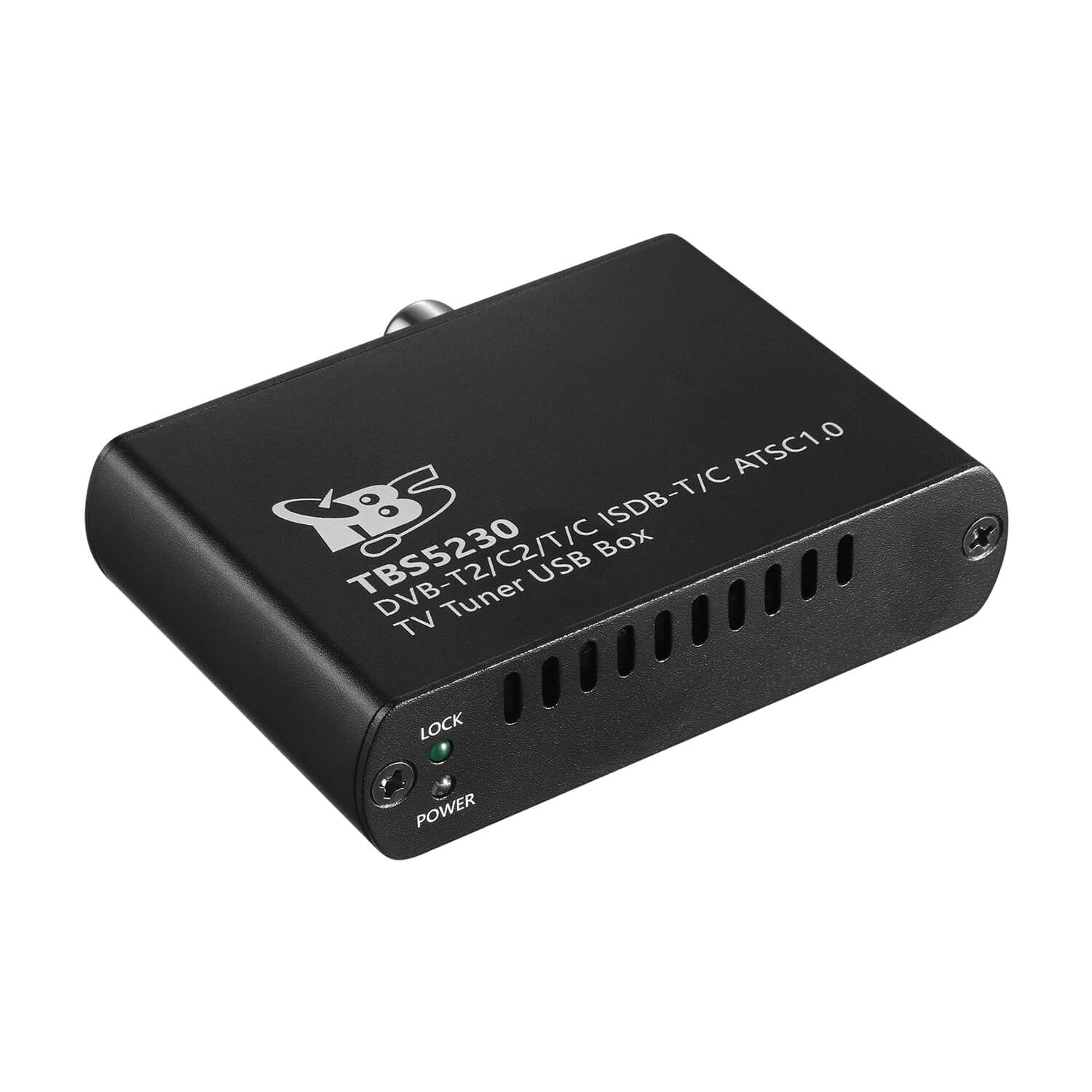

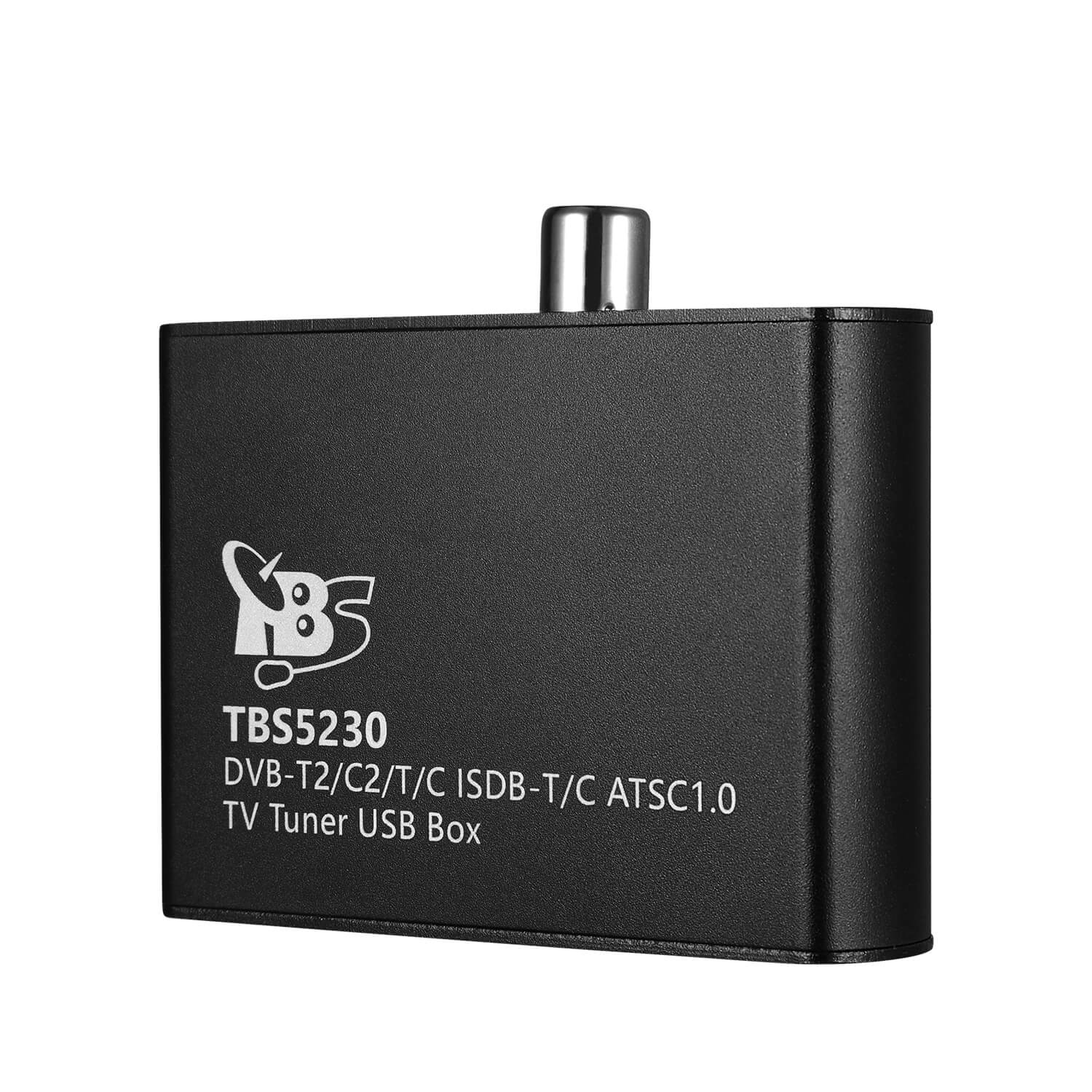

TBS5230 DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 TV Tuner Box

Model#: TBS5230
Price:
US$
79.00
Weight: 350 g(s)
Ship From: China
You will earn 79 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

TBS5230 is a external TV tuner card with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0. Through the USB interface, you can easily plug the TBS5230 Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it's convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.

Main Features:

  • Multi-standard TV USB box
  • DVB-T2/C2/T/C(J.83A/B/C, ISDB-T/C, ATSC1.0. SD or HD TV receiving
  • High-definition video, real-Time and scheduled video recording
  • High sensitivity DVB-T2 Tuner for the best digital TV reception
  • Windows BDA driver and Linux Driver ready

Specification:

DVB-T2 and T2-tdte Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals
16, 32, 64, 128 and 256QAM modulations
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6
DVB-T 6, 7 and 8MHz channel bandwidths
2 and 8K FFT
QPSK, 16 and 64QAM
1/2, 2/3, 3/4, 5/6 and 7/8 code rates
DVB-C2 6 and 8MHz channel bandwidths
1/64 and 1/128 guard intervals
16, 64, 256, 1024, 4096 QAM
2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates
DVB-C 1.7 to 7.2 Msym/s
16, 32, 64, 128 and 256QAM
0.15 roll-off factor
ISDB-T 6, 7 and 8MHz bandwidth
2, 4 and 8K FFT
1/32, 1/16, 1/8 and 1/4 guard intervals
QPSK, 16QAM and 64QAM
ISDB-C 5.274 Msym/s
0.13 roll-off factor
64 and 256QAM
TSMF (Transport Streams Multiplexing Frame)
J.83B (ITU-T J.83 v3.0 Annex B) 5.056941, 5.360537, 5.6 Msym/s
0.18 and 0.12 roll-off factor
64 and 256QAM
ATSC1.0 6MHz channel bandwidths
8VSB modulation
2/3 code rate
Power consumption
Input/ Power:
temperature 0 ~ 60℃
System Requirements Windows XP / Vista/ 7/8/10, Linux
Digital TV signal DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0.
Dimension:
TV tuner card size 9 * 7.5 * 2.5(cm)
Net weight 120g

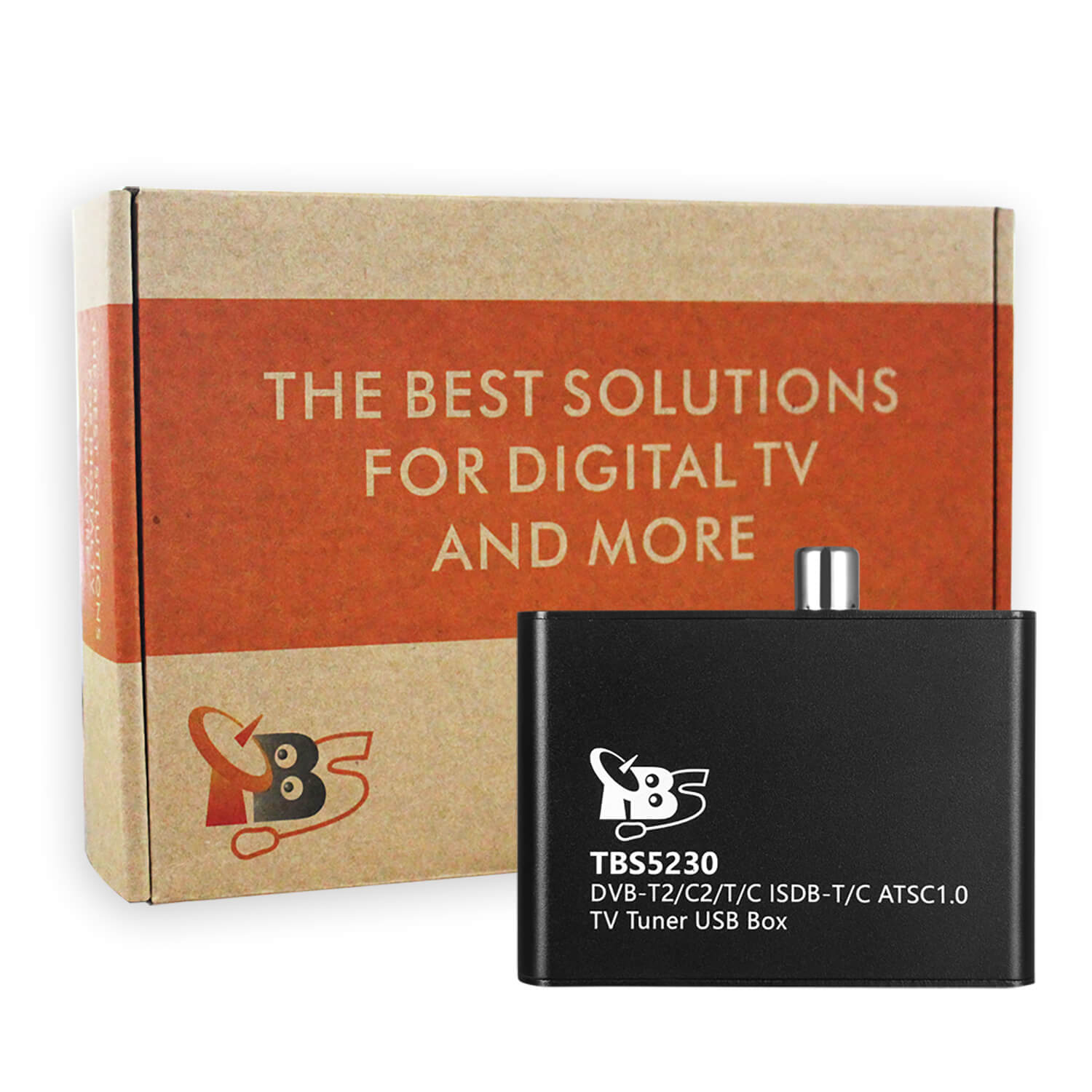

Gift Box Size 17 * 16.5 * 8.5(cm)
Weight 350g
Package Contents 1 x TBS5230
1 x USB cable
1 x F-IEC
∧
