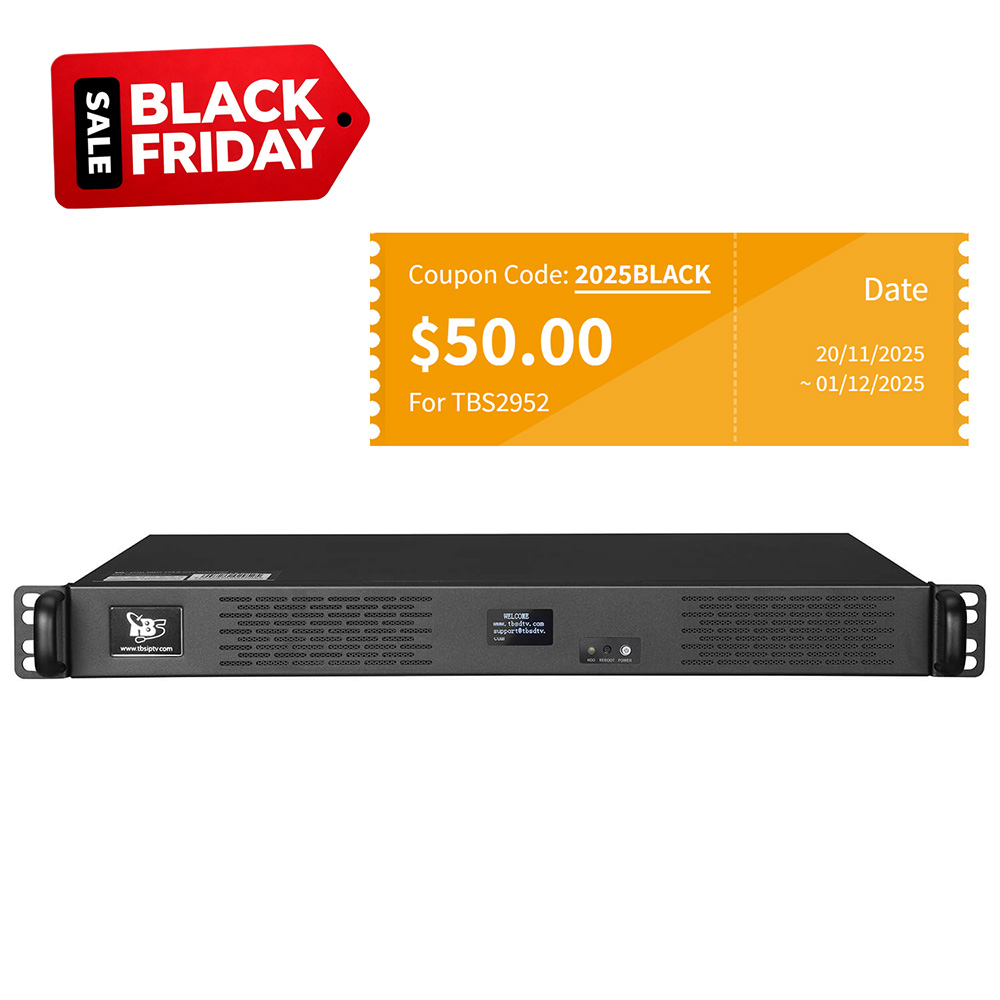

TBS2952 MOI Pro MAX IPTV Streaming Server


Model#: TBS2952

Price:
850.00
Weight: 12000 g(s)
Ship From: China
You will earn 850 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

Options:

Kylone
Kylone Basic Kylone professional streaming license ( +US$299.00 )
Tuner cards combination options:
basic version (without tuner) incl. 2x DVB-S2X/S2/S Octa Tuner Card ( +US$595.00 ) incl. 4x DVB-S2X/S2/S Octa Tuner Card ( +US$1,200.00 ) incl. 2x DVB-T2/C2/T/C/ISDB-T OctaTV Tuner ( +US$612.00 ) incl. 4x DVB-T2/C2/T/C/ISDB-T OctaTV Tuner ( +US$1,240.00 ) incl. 2x DVB-S2X/S2/S Quad Tuner Card ( +US$340.00 ) incl. 4x DVB-S2X/S2/S Quad Tuner Card ( +US$709.00 ) incl. 2 x DVB-S2X/S2/S Dual Tuner Dual CI ( +US$320.00 ) incl. 3 x DVB-S2X/S2/S Dual Tuner Dual CI ( +US$503.00 ) incl. 2 x DVB-T2/T/C Dual Tuner Dual CI Card ( +US$300.00 ) incl. 3 x DVB-T2/T/C Dual Tuner Dual CI Card ( +US$476.00 ) incl. 2x DVB-T2/T/C Quad Tuner Card ( +US$400.00 ) incl. 4x DVB-T2/T/C Quad Tuner Card ( +US$825.00 ) incl. 1x DVB-S2X/S2/S Quad Tuner Card & 1x DVB-T2/T/C Quad Tuner Card ( +US$495.00 ) incl. 2x DVB-S2X/S2/S Quad Tuner Card & 2x DVB-T2/T/C Quad Tuner Card ( +US$765.00 ) incl. 2 x DVB-S2X/S2/S Octa Tuner Card & 2 x DVB-T2/T/C quad Tuner Card ( +US$1,015.00 ) incl. 1 x DVB-S2X/S2/S Octa Tuner Card & 1 x DVB-T2/C2/T/C/ISDB-T OctaTV Tuner ( +US$605.00 ) incl. 2 x DVB-S2X/S2/S Octa Tuner Card & 2 x DVB-T2/C2/T/C/ISDB-T OctaTV Tuner ( +US$1,215.00 )

If you need more, please Contact us directly.

Description:

MOI Pro MAX is a new professional IPTV streaming server powered by Intel Quad Core solution. It can receive live TV signal using built-in TV tuners and stream the channels further through Ethernet to various clients' devices, such as PC, tablet PC, smartphone, and smartTV. With pre-installed Kylone streaming software, MOI Pro MAX provides more possibilities to IPTV system integrators and TV service operators.

Kylone software is designed by TBSDTV and is compatible with all TBS DVB tuner/modulator/ capture cards. It offers a comprehensive set of tools and features to empower users in efficiently organizing digital TV broadcasting service across cable, satellite, terrestrial and IP networks with advanced real-time monitoring. With Kylone, you can manage all your DVB sources. Know more details, please check https://www.tbsiptv.com/kylone-digital-content-managing-panel

Key Features:

  • Live SD/HD TV streaming
  • Based on Intel Quad Core
  • High-performance graphics processing
  • Low power consumption
  • Supports up to 32 TV tuners (4 TV tuner PCIe cards of different DVB standards)
  • Compatible with various DVB software
  • Versatile OS Support: Linux Ubuntu/ Rokcy8/ CentOS,Windows XP / Vista/ 7/8/10

Specifications:

Model MOI Pro MAX
Size 1U Chassis (430 * 320 * 46mm)
Processor Intel® Embedded Celeron J6412 (Quad Core, 2.6GHz)
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Ethernet 1x2.5Gbps, 1x1Gbps or 1x2.5Gbps & 2x1Gbps (optional)
Memory 8G DDR4-2666 (Up to 32G )
Storage 1 x SATA 6.0 Gb/s
SSD 250G M.2 SATA
Front Panel Power Button
Reboot Button
Power LED
HDD LED
Display Interface 1 x HDMI
USB Port 2x USB 2.0
2x USB 3.0
SBC dimension 128 * 104 mm
Operating Systems Rocky Linux System (default) , Linux Centos7, Ubuntu
Microsoft® Windows XP / Vista/ 7/8/10
DVB tuner card support Up to 32 TV tuners (4 TV tuner PCIe cards; recommend no more than 3pcs dual CI PCIe cards such as TBS6910SE)
Video capture card support HDMI / DVB-ASI capture PCIe cards
Pre-installed Software Kylone (default)
Tvheadend, VDR, MuMuDVB, DVBlast, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba etc. (Optional)
Power consumption 72W
Working Environment Operating Temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
Package Contents 1x TBS2952 MOI Pro MAX
1x AC Power Cable
Single Gross Weight 11.0kg

What is the difference between TBS2951 MOI Pro AMD and TBS2952 MOI Pro Max

TBS2951 TBS2952
CPU AMD® G-Series SoC GX-420GL (Quad Core, 2GHz) 15W Intel® Embedded Celeron J6412 (Quad Core, 2.6GHz) 10W
SSD 30G SSD (mSATA) 250G SSD (M.2 SATA 2242)
RAM 4G DDR3-1600 8G DDR4-2666 (Support upto 32G)
LAN 2x1Gbps 1x2.5Gbps+1x1Gbps +1x1Gbps (Optional)
PCIE 4*1xPCIE share with 2*PCIE 2.0 4*1xPCIE with 4*PCIE 3.0(Independence)
System CentOS7 Rocky8
Software Tvheadend, DVBlast, MuMudvb… Kylone (Preinstalled)
Input DVB-S/S2/S2x, DVBT/T2, DVBC/C2, ATSC, ISDB-T, DTMB, HDMI, ASI, DVB-S/S2/S2x, DVBT/T2, DVBC/C2, ATSC, ISDB-T, DTMB, HDMI, ASI, UDP(Unicast,Multicast), HTTP, HLS, RTSP, SRT, MPTS, Local TS File
Output HTTP, UDP HTTP, UDP, RTP, HLS, SRT, SPTS, MPTS
