TBS2922 DVB-S2 IP Router


Model#: TBS2922

Price:
798.00
Weight: 2500 g(s)
Ship From: China
You will earn 798 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

TBS2922 DVB IP Router is designed to ensure reliable reception of EUMETSAT weather data services. Based on TBS's latest generation hardware and enhanced system platform, TBS2922 provides a friendly and easy way to gain and stream EUMETSAT weather data.

A lot of work has been done in the streaming system, so that available frequencies for EUMETSAT weather data has been pointed in the web UI for selection directly. There is no need for users to configure the satellite parameter manually.

Furthermore, when the relevant data is sent to network, the EUMETSAT specified client program like TELICAST will be able to detect and monitor the data in real time.

Key Features

  • DVB-S/S2/S2X compliant.
  • Supports VCM/ACM operation, including multi-stream VCM with ISI filtering.
  • Supports DVB-S2 operation QPSK, 8PSK, 16APSK, and 32 APSK.
  • 2 x 1Gb network port for data streaming.

The friendly web UI has included all available frequencies for EUMETSAT weather data

The streaming data from TBS2922 router will be auto-detected by TELLICAST Multicast distribution system.

Specifications

RF Tuners:
Receiving Frequency: 950 ~ 2150MHz
Input Signal Level: -70 dBm to -25 dBm
Multi-standard Demodulation:
DVB-S/S2: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Nyquist Root Filter: 0.2, 0.25, 0.35 rolloff.
Data Throughput: 80 Mbps.
Status Monitoring:
  • Item number indication
  • IP address indication
  • Tuner number indication
  • Date indication.

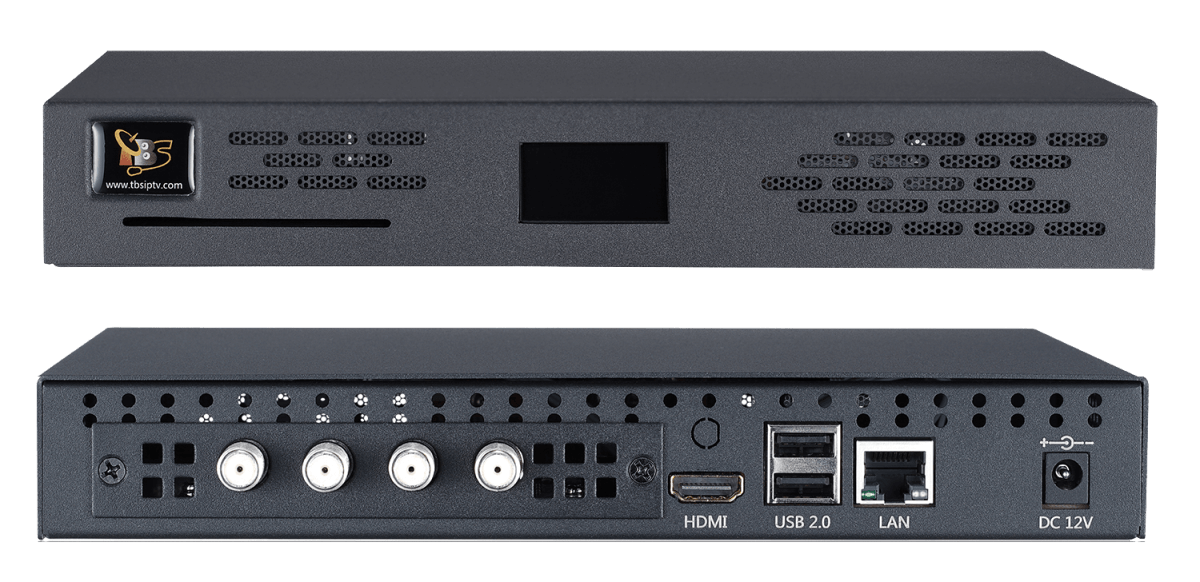

Physical Interfaces:
RF Input Connector: 4 x F-Type port, 75 ohms
Network port: 2 x 1Gb RJ45 port for data streaming
USB port: 2 x USB 2.0
HDMI port: 1 x HDMI 2.0
DC port: 1 x DC port for 12V/3A power adaptor
Common information:
Working Environment
  • Operating temperature: 0 ~ 40 deg C
  • Storage temperature: –20 ~ 70 deg C
  • Relative Humidity: 5% ~ 90% non-condensing
Dimensions(chassis) 230 * 180 * 34mm
