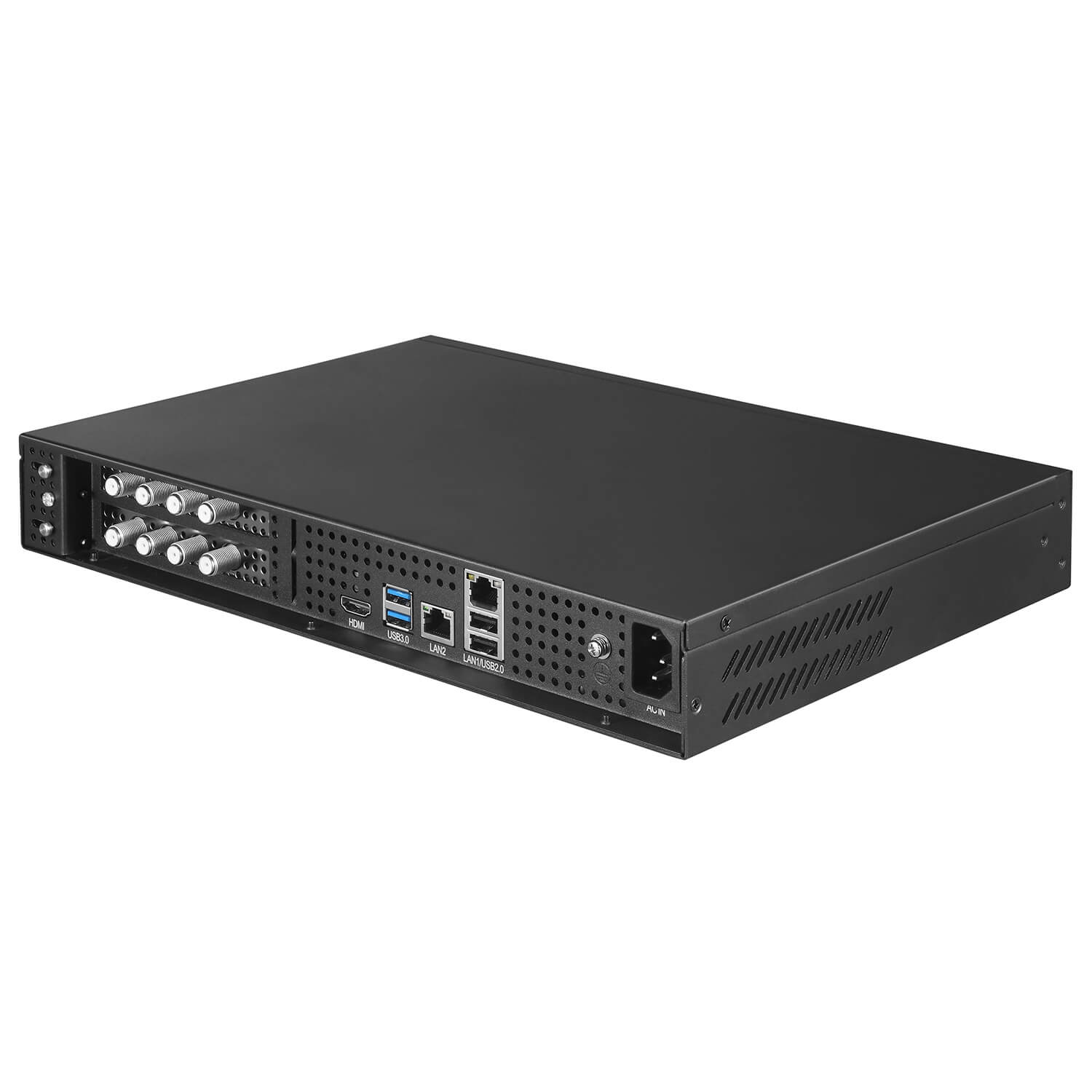

TBS2952 Lite Live TV to IP Streaming Server Chassis


Model#: TBS2952 Lite

Price:
750.00
Weight: 1500 g(s)
Ship From: China
You will earn 750 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

The Live TV to IP Streaming Server Chassis is a compact and powerful solution designed for live TV streaming over IP networks. Equipped with two PCIe slots, this chassis supports a variety of live TV tuner PCIe cards (DVB-S/S2/S2X, DVB-T/T2, DVB-C, ATSC, ISDB-T), enabling capture of live TV channels. With the Kylone streaming system as its built-in channel management platform, the server provides users with a versatile set of tools to organize, monitor, and distribute digital TV content across multiple networks in real time.

• Dual PCIe Slots for TV Tuner Cards

Be adaptable to different broadcast standards (DVB-S/S2/S2X, DVB-T/T2, DVB-C, ATSC, ISDB-T).

• Comprehensive Streaming with Kylone System

Efficient channel management and IP streaming.

• Efficient IP Streaming Output

Converts captured live TV channels into IP streams, supports HTTP, UDP, RTP, HLS, SRT, SPTS, MPTS

• Advanced Real-Time Monitoring

Full insight into channel performance, stream quality, and network health, ensuring uninterrupted service.

Specifications

Model TBS2952 Lite
Size 1U Chassis (430 * 320 * 46mm)
Processor Intel® Embedded Celeron J6412 (Quad Core, 2.6GHz)
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Ethernet Customized
Memory 8G -32G DDR4-2666 Customized
Storage Customized
SSD Customized
Display Interface 1 x HDMI Customized
USB Port 2x USB 2.0 Customized
2x USB 3.0 Customized
SBC dimension 128 * 104 mm
Available OS Rocky Linux System (default) , Linux Centos7, Ubuntu
Microsoft® Windows XP / Vista/ 7/8/10
Default Operating Systems Kylone IPTV streaming system Customized
DVB tuner card support Up to 32 TV tuners
Video capture card support HDMI / DVB-ASI capture PCIe cards
Power consumption 72W
Working Environment Operating Temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
Package Contents 1x TBS2952 Lite IPTV streaming server
1x AC Power Cable
