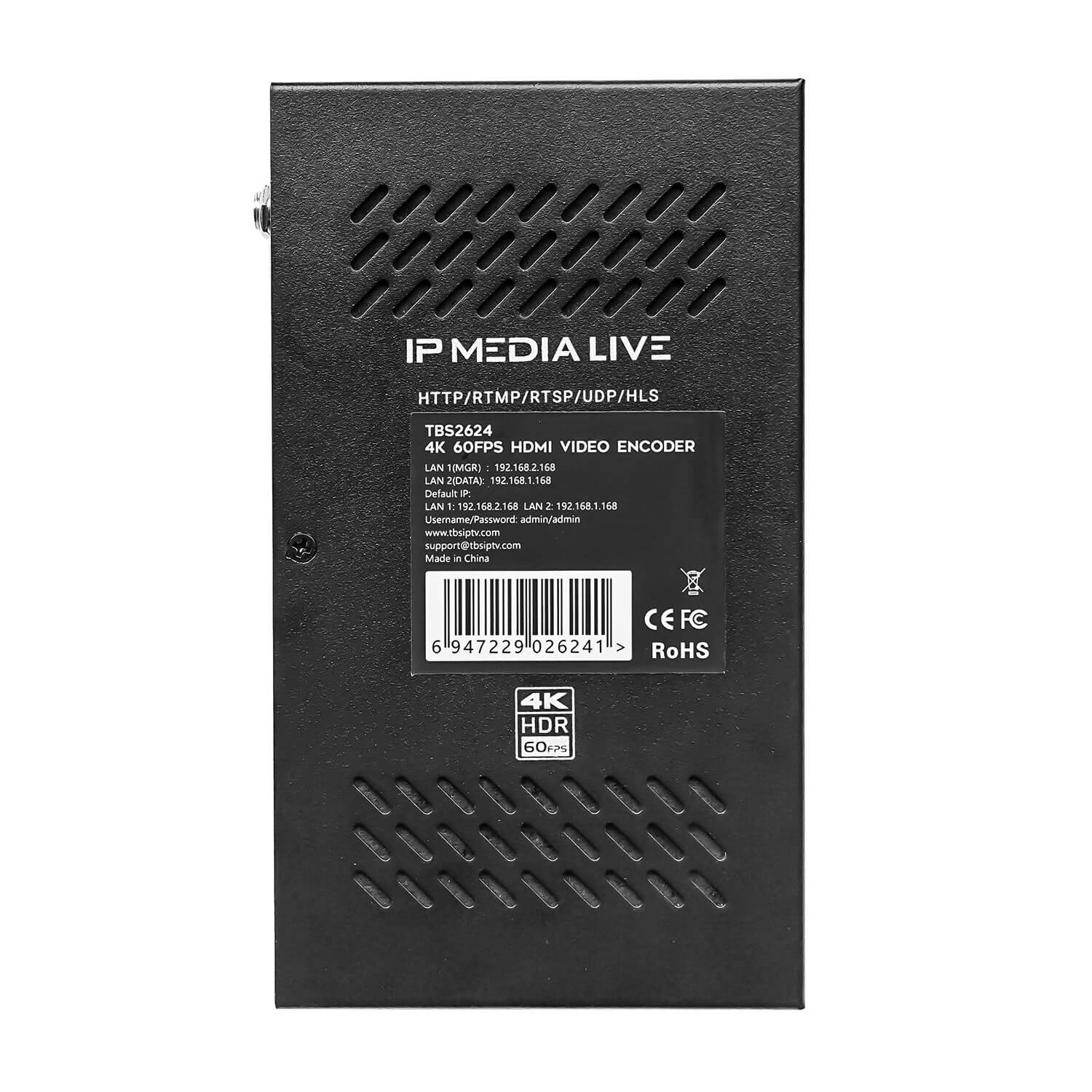

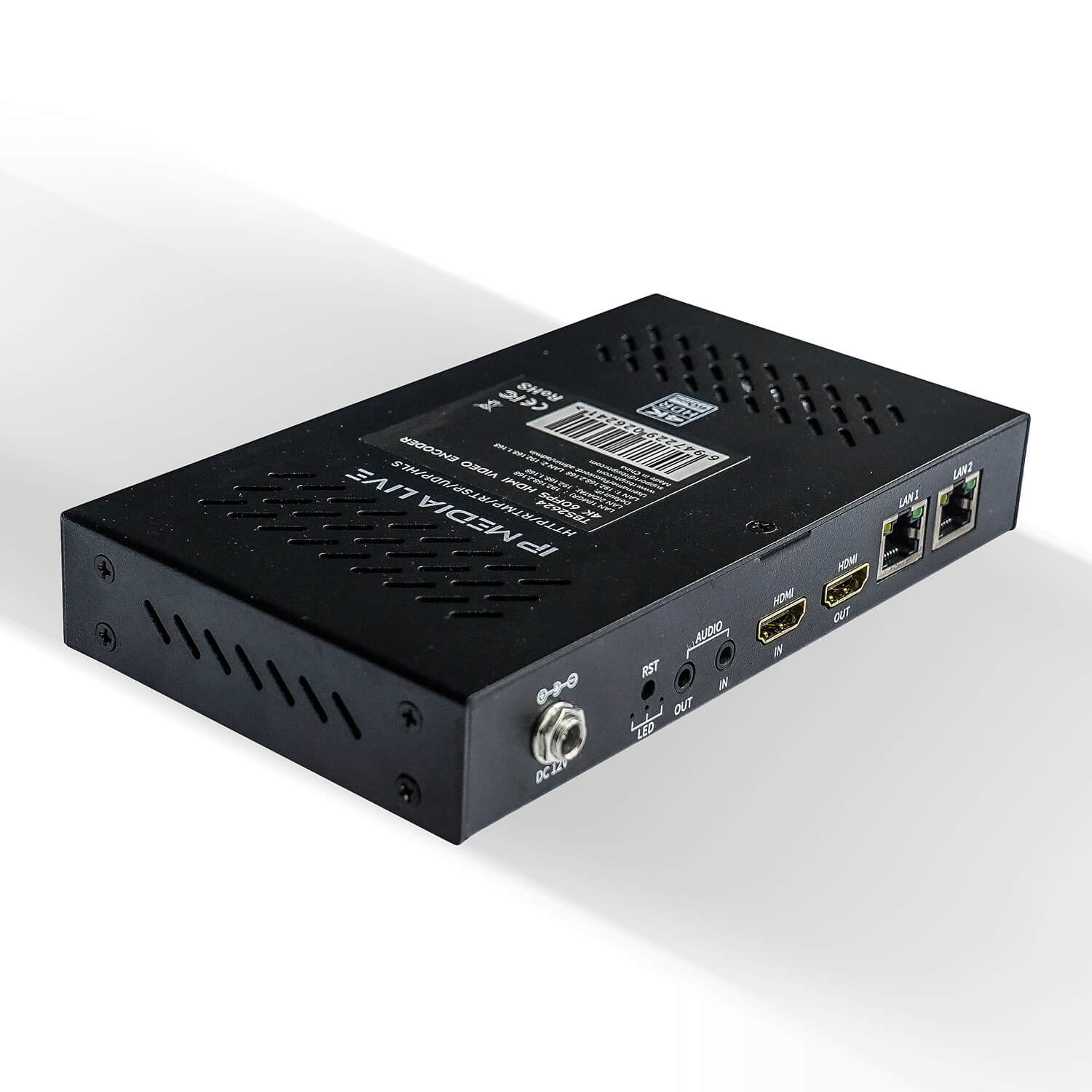

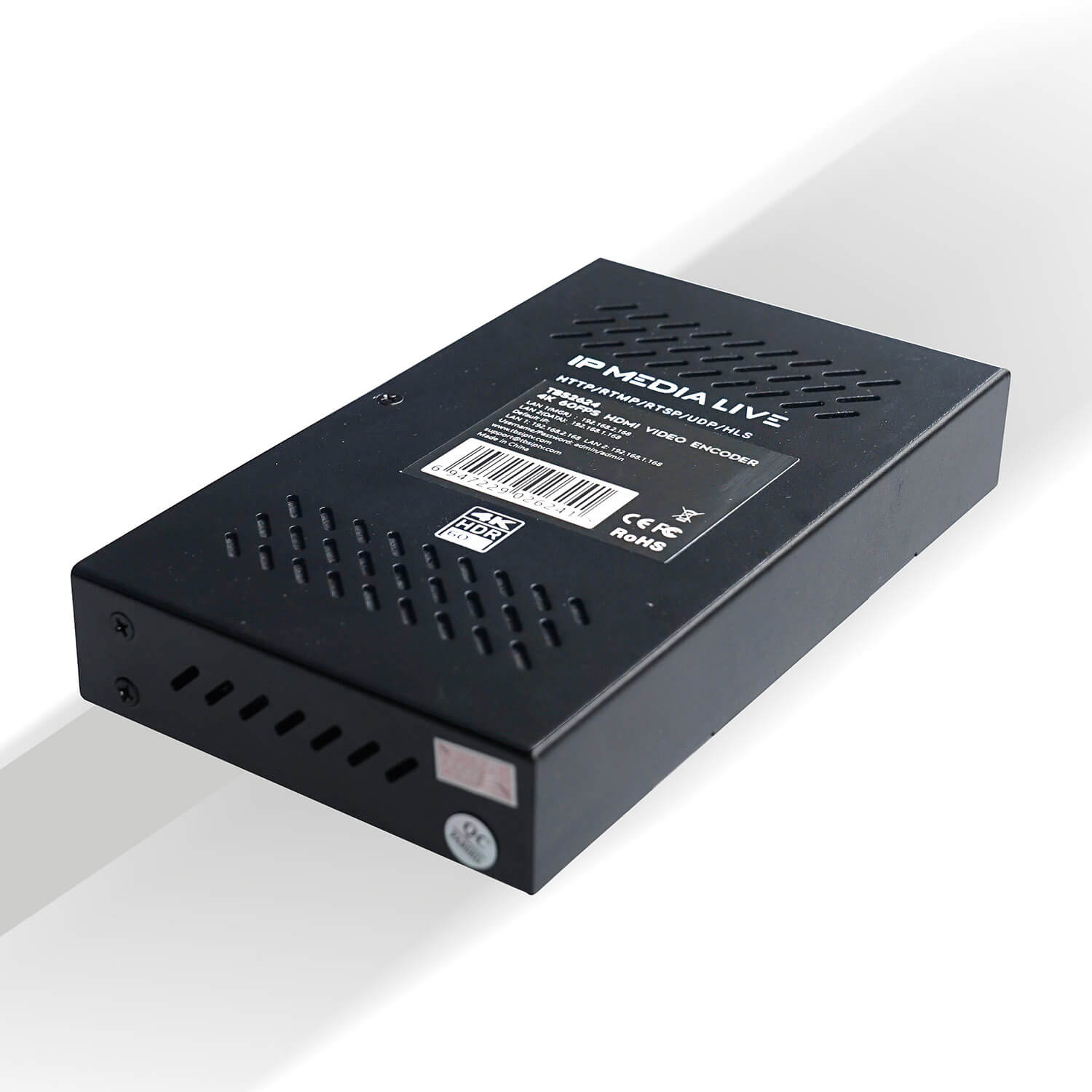

TBS2624 4K 60FPS HDMI Video Encoder, Professional HDMI video encoder for IPTV Live Stream Broadcast

Model#: TBS2624

Weight: 500 g(s)
Ship From: China
You will earn 900 Points for buying this product. How to Use ?

If you need more, please Contact us directly.


TBS2624 HDMI video encoder is a professional high-definition video encoder, which not only supports 4K 60fps encoding, but also supports dual streams output in H.265/H.264 format, main stream supports 4096*2160P 60fps, sub-stream support 1920*1080P 60fps output simultaneously. It also supports output of HTTP/HLS/RTMP(RTMPS)/RTSP/UDP/SRT protocols, which is ideal for customers who need to use different protocols output.

The product can be applied to Education, Health care, IPTV, Conference, Distance education, News interview, Banking, transportation, and other Industries.


  • Digital TV Broadcasting System
  • IPTV & OTT system
  • Digital Signage Project
  • Remote Video Conference
  • Live Streaming
  • Head-end system of Digital TV branch network
  • Monitoring for NVR/DVR

Key Features

  • 4096*2160/ 3840x2160/ 1680*1056/ 1920*1080/ 1280*720/ 1024*576/ 720*576/ 640*360 resolution
  • Support mainstream 4096 * 2160P 60fps, sub-stream 1920*1080P 60fps output simultaneously
  • Support multiple devices display on a computer at the same time
  • Supports dual ethernet ports 1000M/100M
  • Support HTTP, HLS (M3U8), RTSP, RTMP/RTMPS, RTP/UDP unicast & multicast, SRT: Listener, Caller
  • Support DHCP/, ONVIF protocol, support HD Blue-ray
  • Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
  • Rate Control CBR / VBR, Bitrate 16Kbps ~ 50Mbps
  • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
  • Support streaming add watermark (OSD), XY axis, the font can be set;
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection,


Model TBS2624

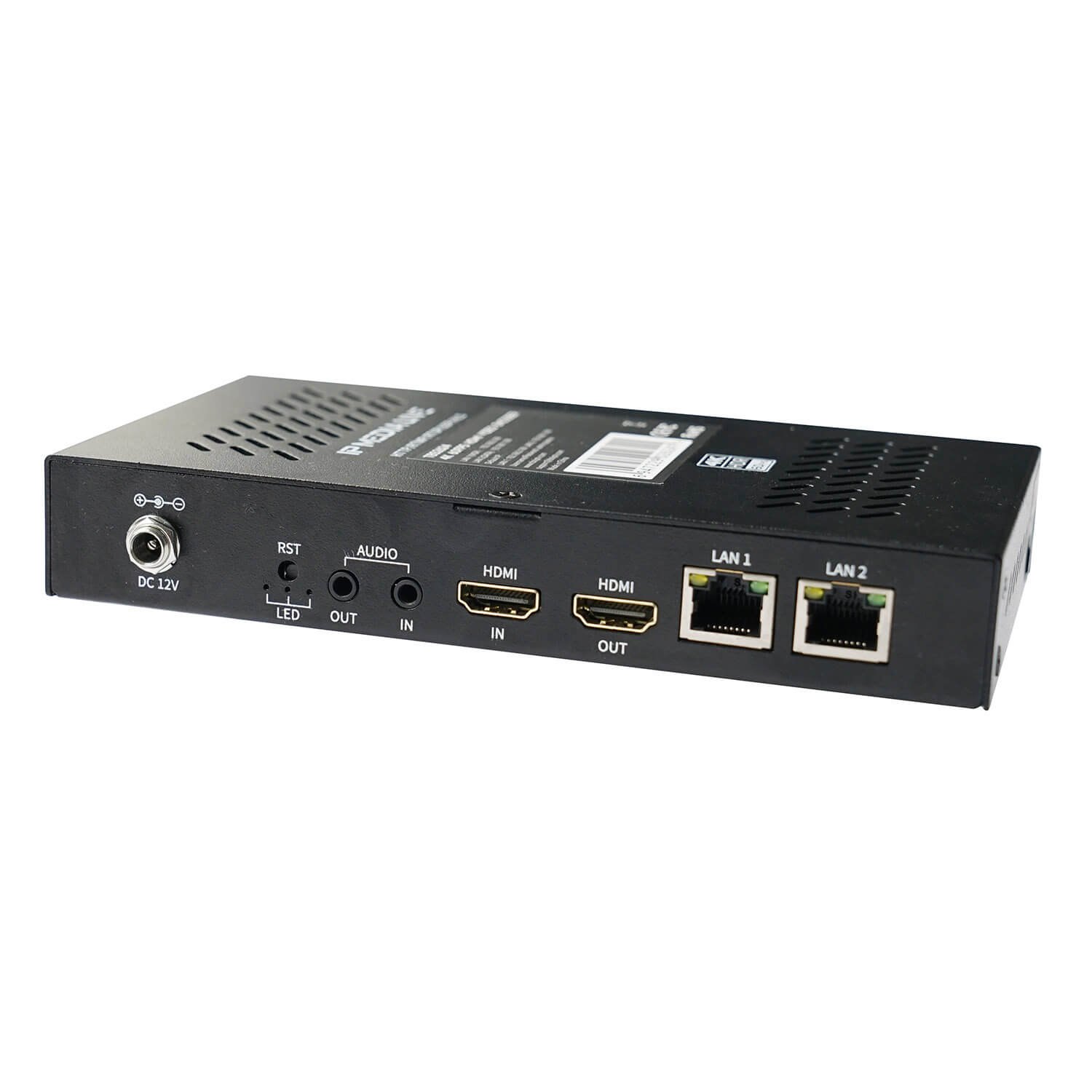

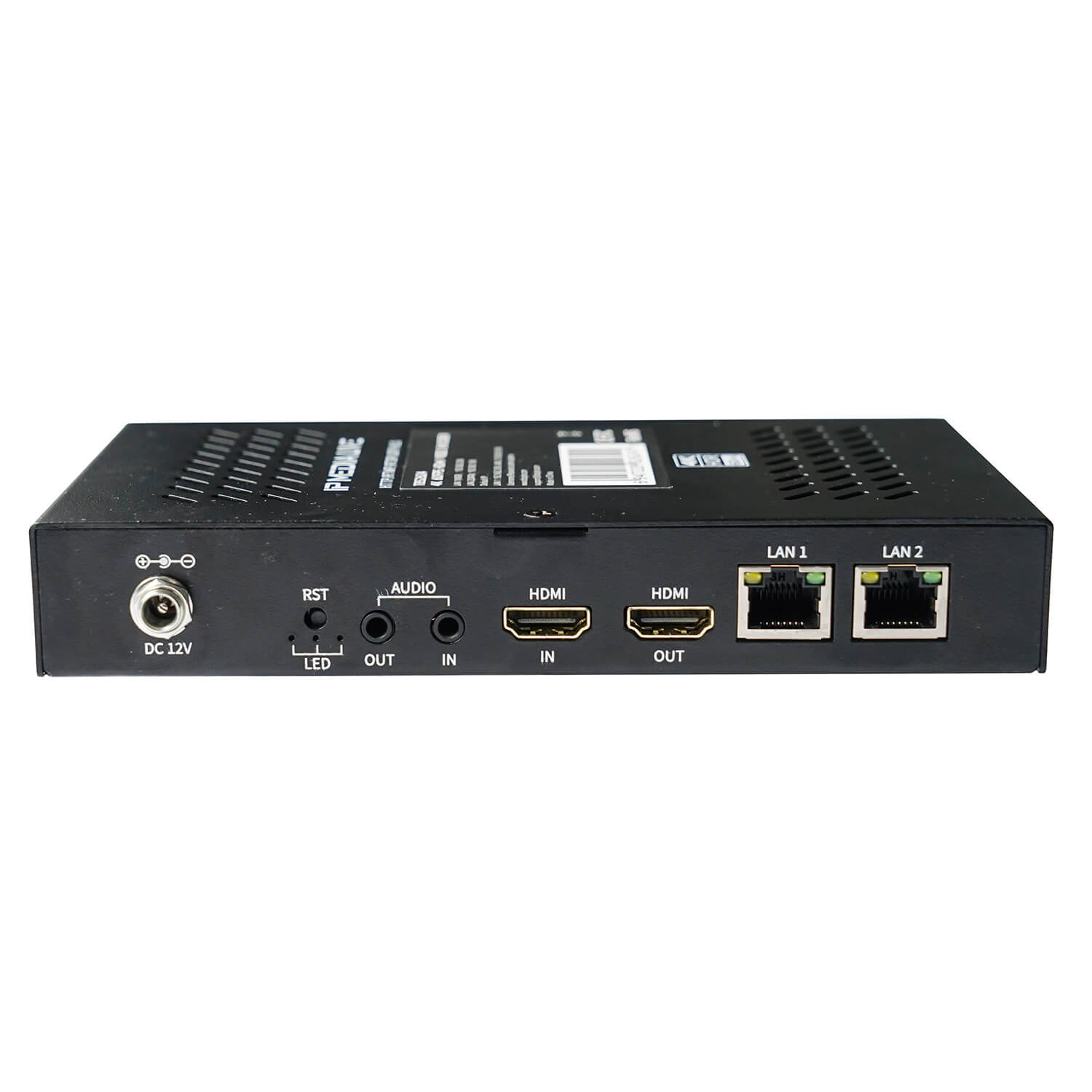

Input 1x HDMI 2.0, 1x3.5mm Jack Line In
Output 1x RJ.45, 1x HDMI Loop Out, 1x 3.5mm Jack Line OUT
Video Input Resolution 4096*2160/ 3840*2160/ 1680*1056/ 1920*1080/ 1280*720/ 1024*576/ 720*576/ 640*360 and ect.
Codec H.264/MPEG4-AVC Level 5.1 H265/HEVC Level 5.0
HDCP HDCP 2.2 supported
Fluctuate Level Level 1/2/3/4/5/6
Profile H.264 Baseline H.264 Main H.264 High H.265 Main
Out Resolution 4096*2160, 3840x2160, 1920*1080, 1680*1056, 1280*720, 720*576, 720*480, 640*480, 640*360 and ect.
Bitrate Control& CBR/VBR
Bitrate 16Kbps ~ 50Mbps
Frame rate 5 ~ 60fps
OSD Image (logo) overlay, Text overlay
Audio Input 1x HDMI embedded, 1x Jack 3.5mm Line In
Codec AAC HE, AAC_LC, G.711(RTSP)
Bitrate 24Kb/s ~ 320Kb/s
IP out 1x 100M Eth. port; 1x 100M Eth. Port; supports 2 stream encode: Main, & Sub-stream
System Protocol HTTP, HLS (M3U8), RTSP, RTMP, RTP/UDP unicast & multicast, SRT: Listener, Caller
Control Web UI Control
General Spec. Power DC 12V/2A
Consumption 5W
Size 178mm * 102mm * 28mm
Operation Temperature -20℃ ~ 60℃
Working humidity < 90%, Non-condensing
Weight 0.35KG
