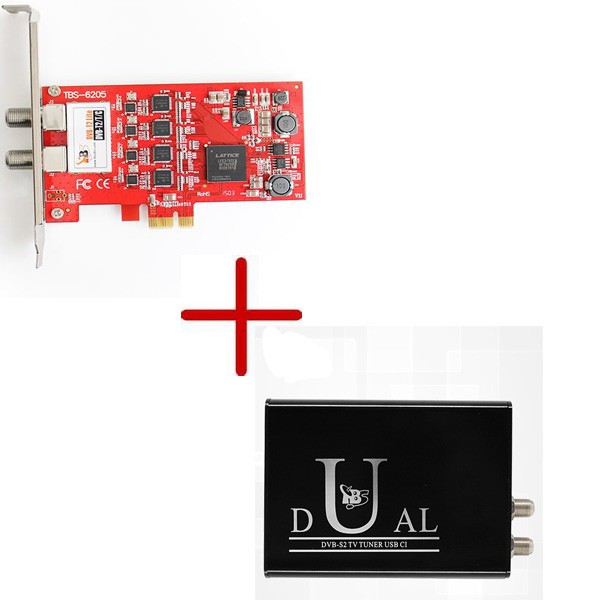

TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card+TBS5990 QBOX CI DVB-S2 TV Tuner USB

  • item#: TBS6205+TBS5990
  • Price:
    359.98
  • Start from: 1 Unit(s)
  • Weight: 1000 g(s)
  • Ship From: China
  • You will earn 360 Points for buying this product. How to Use ?
    Quantity: Unit(s)
      • Shipping Methods
      • Payment Methods

      Relative Products

      Description:

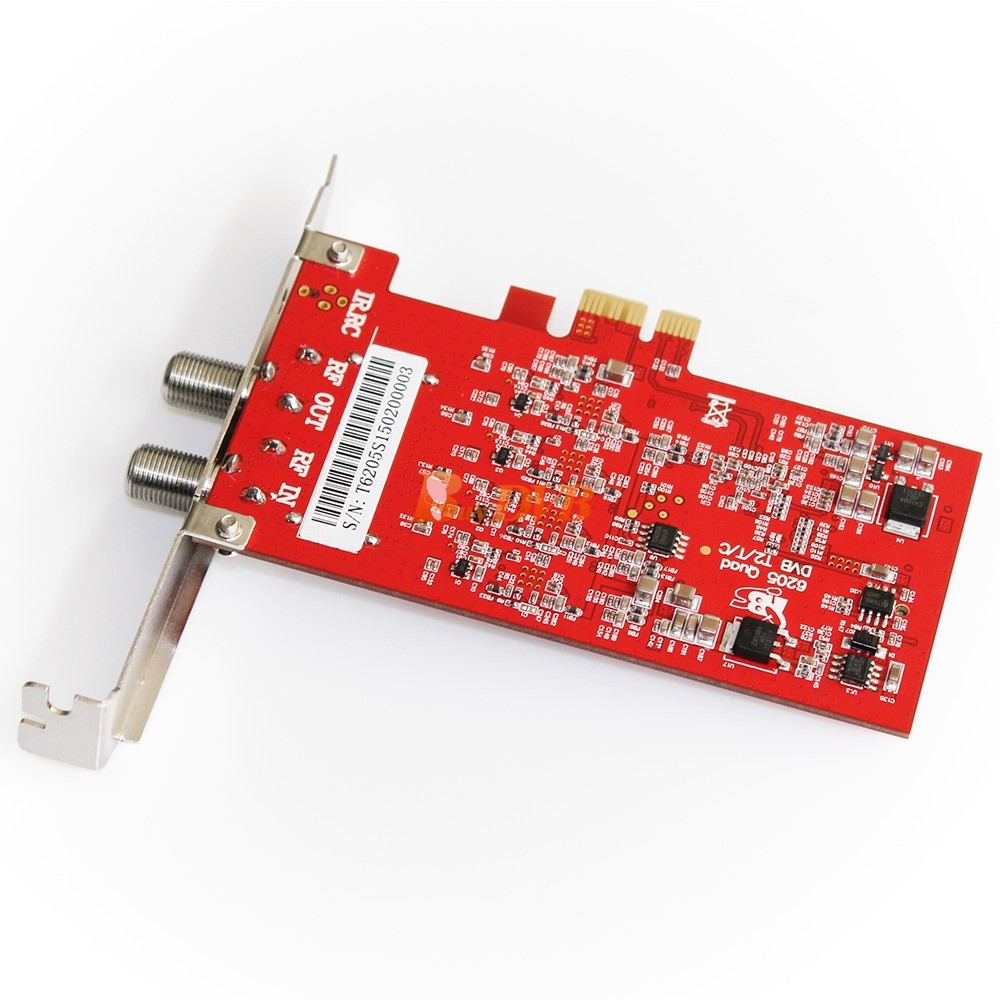

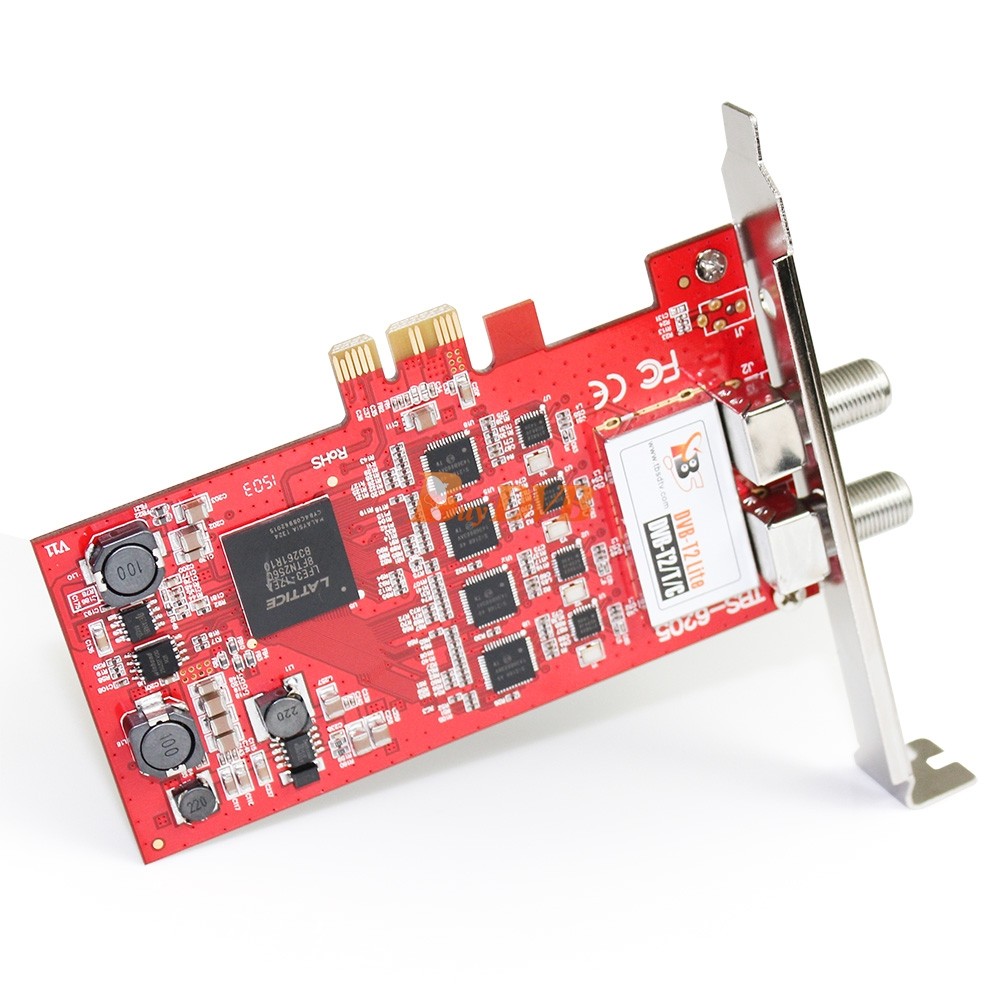

      (一)TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card

      Description:

      TBS6205 is a DVB-T2/T/C TV quad tuner card with PCI-Express interface, it can be used for watching four different channels from four different frequencies simultaneously, and it supports DVB-C standard at the same time.



      TBS6205 DVB-T2/T/C TV quad tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver. It's ideal for watching UK Freeview SD and HD channels on your desktop PC.

      *Please ensure you can receive the Digital Terrestrial Television (DVB-T, DVB-T2, Freeview) service in your region. The TBS6205 Quad Tuner Card requires you use a high-gain roof aerial to enable and enjoy reliable digital television reception throughout the UK.



      Main Features:
      Low profile design
      DVB-T2/T/C SD or HD TV receiving
      Quad channel receiving simultaneously
      High-definition video, real-Time and scheduled video recording
      High sensitivity DVB-T2 Quad Tuner for the best digital TV reception
      Windows BDA driver and Linux Driver ready



      Specifications:

      • Support PLP( Physical Layer Pipe)

      DVB-T2/T2 Lite/T
      • Receiving channel: VHF band and UHF band
      • Channel bandwidth: 6, 7, 8 MHz
      • DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
      • FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
      • Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
      • Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
      • Intermediate frequency
      • IF mode: low IF
      • Center IF Frequency: 3 ~ 5 MHz
      • Note: default 4MHz
      • RF-Input impedance 75Ω (IEC-DIN female)
      • RF-Output impedance 75Ω (IEC-DIN male)
      • TV card size: 115x68.7mm (length x height)
      • TV card weight: 78g
      • Power consumption: 6.7 – 9 W
      • Operating temperature: -10°C ~ 70°C

      DVB-C
      • Fully compliant with DVB-C and ITU J83 A/B/C specifications
      • Receiving Frequency: 47~862 MHz Tuning Range
      • Input level: -65~-10dBm
      • 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
      • Symbol Rate: 0.87 to 9Mbaud



      System Requirements:
      Windows 2000/XP/Vista/7/8/10 or Linux
      Pentium 4 2.0 GHz, Pentium M 1.3 GHz
      For HDTV: 2.6 GHz multi core processor
      Hard disk with min. 1 GB free capacity
      Sound and graphics card with support for DirectX 9 or higher
      Available PCI Express x1, x4, x8 or x16 slot
      CD/DVD drive for software installation



      Package Contents:
      1x TBS6205
      1x Low profile bracket
      1x F connector

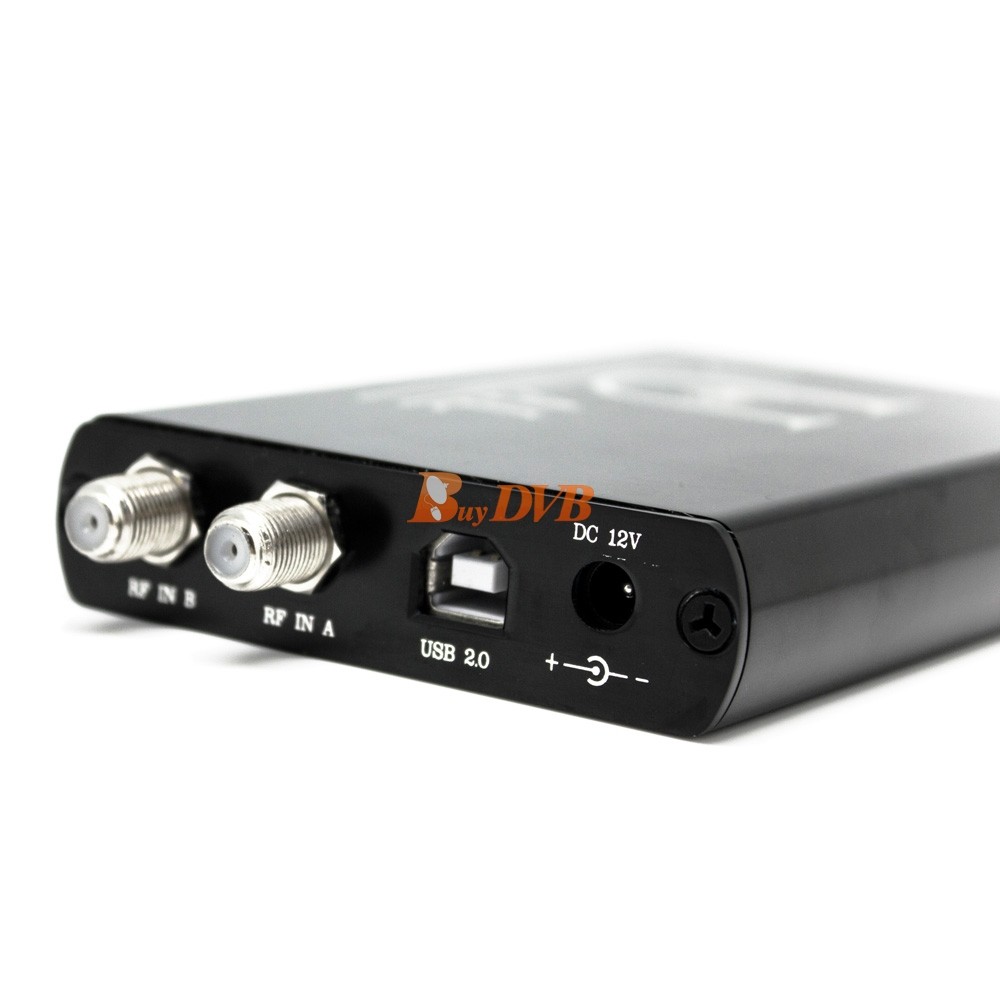

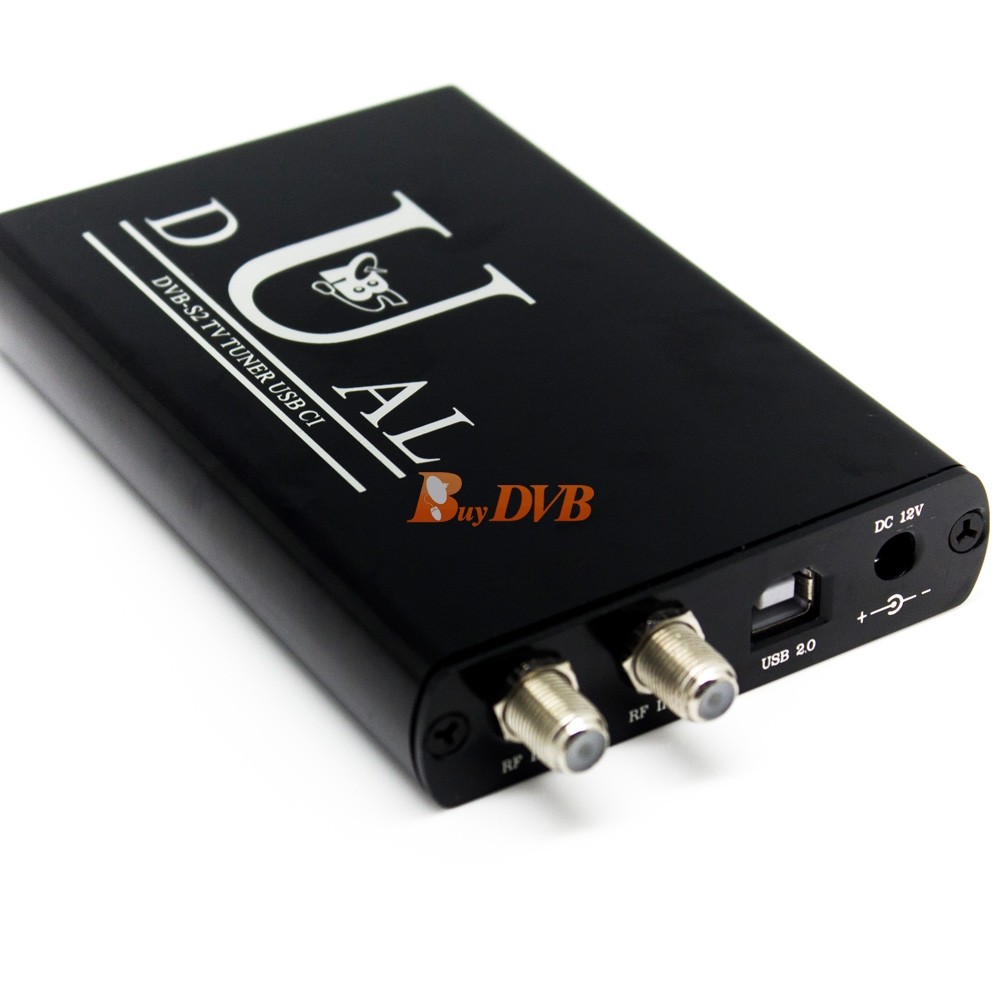

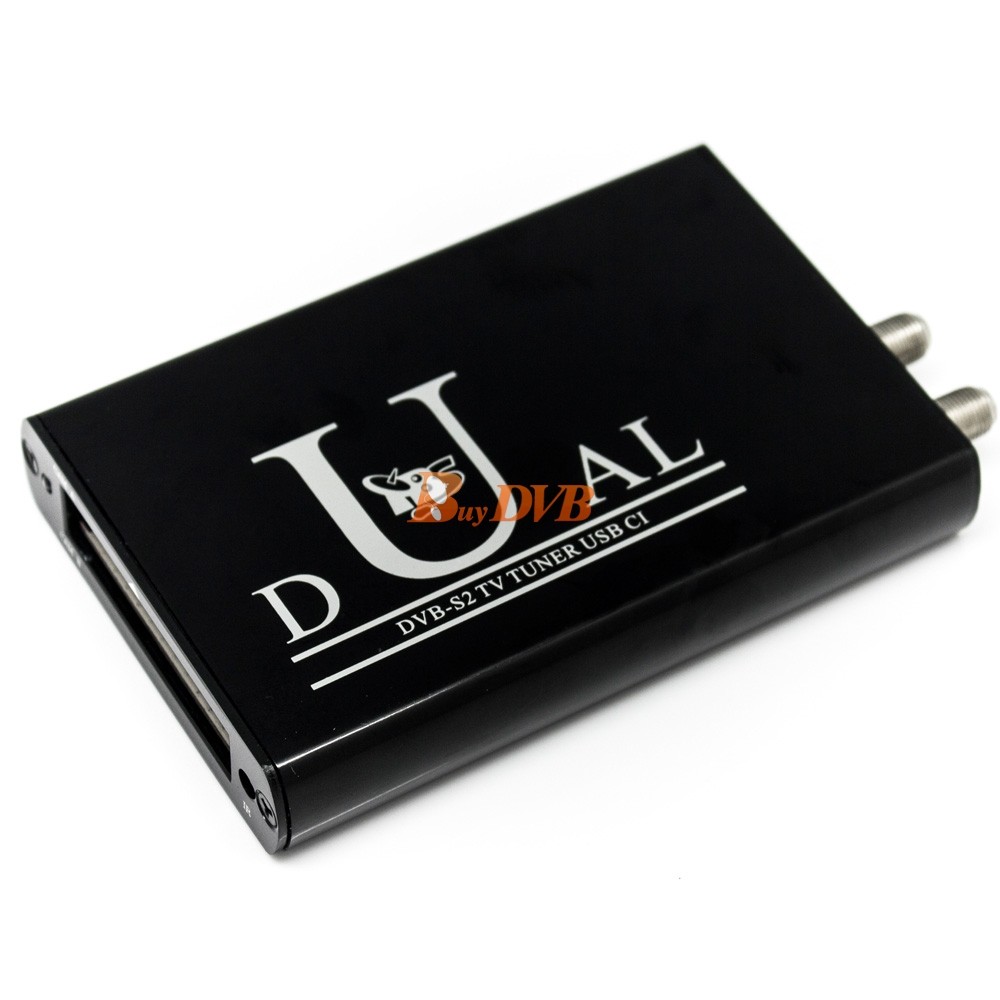

      (二)TBS5990 QBOX CI DVB-S2 TV Tuner USB

      Description:

      TBS5990 QBOX CI DVB-S2 TV Tuner USB is a dual tuner digital satellite TV external box with integrated dual CIslots for watching and recording digital satellite TV on PC. Its use USB connection to connect with laptop or desk PC , it can be used for watching and recoding Free to Air TV programmer and Pay TV programmer as well. inserting the correct CAM and subscription smartcard into the CI slot can encrypt pay TV programmer.



      So you may use one tuner to watch one digital satellite TV channel while using the other tuner to watch/recode another pay TV channel from another transponder/satellite at same time. Both Windows BDA driver and Linux driver up to the latest kernel are provided.The unique TBS MCE tool makes it possible to read CAM/Smartcard on Windows7 Media Center, thus your satellite subscription TV can be watched/recorded on Windows7 Media Center. On Linux platform, you can also watch paytv by using correct software.

      TBS5990 QBOX CI DVB-S2 TV Tuner USB is compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV, VDR and many other popular software.



      Main Feature:
      Watch satellite TV & listen to radio on PC
      Recode satellite TV programmer on PC
      Connect PC with USB
      DVB-S2/DVB-S SD or HD TV receiving
      Real time and scheduled program recording (PVR)
      Time shifting to pause live TV
      Unicable/one cable compatible
      Common interface support
      Blindscan support
      High reliability



      Specification:
      Receiving frequency: 950~2150 MHz tuning range
      Input level: -69~-23dBm
      Two DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator
      Dual CI Slot
      Symbol rate:
      DVB-S QPSK 1~45Msps
      DVB-S2 QPSK/8PSK 1~45Msps
      Carrier Capture Range: ±10MHz
      8PSK Puncture codes: 3/5,2/3,3/4,5/6,8/9,9/10
      QPSK Puncture codes: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10.
      Support data burst & tone burst
      Support DiSEqC2.X and motor
      Standard profile TV Card Size: 12.5 x 8cm (Length x Height)
      TV Card Weight: 195 Gram
      Package Gift Box Size: 207.5 x174 x 55MM mm (Length x Width x Height)
      Package Gift Box Weight: 680Gram



      System Requirements:
      Windows 2000/XP/Vista/7/8/10 or Linux
      DirectX9.0 or later Version
      Available USB2.0 Port
      Satellite dish and LNB

      For DVB-S:

      1GHz CPU or above
      256MB RAM or above
      Graphic card with at least 16MB RAM

      For DVB-S2 HDTV:
      Dualcore CPU
      1GB RAM or above
      Graphic card with at least 64MB RAM

      Package Contents:
      1 x TBS5990
      1 x Remote control
      1 x Power adapter
      1 x USB Cable
      1 x AC line
