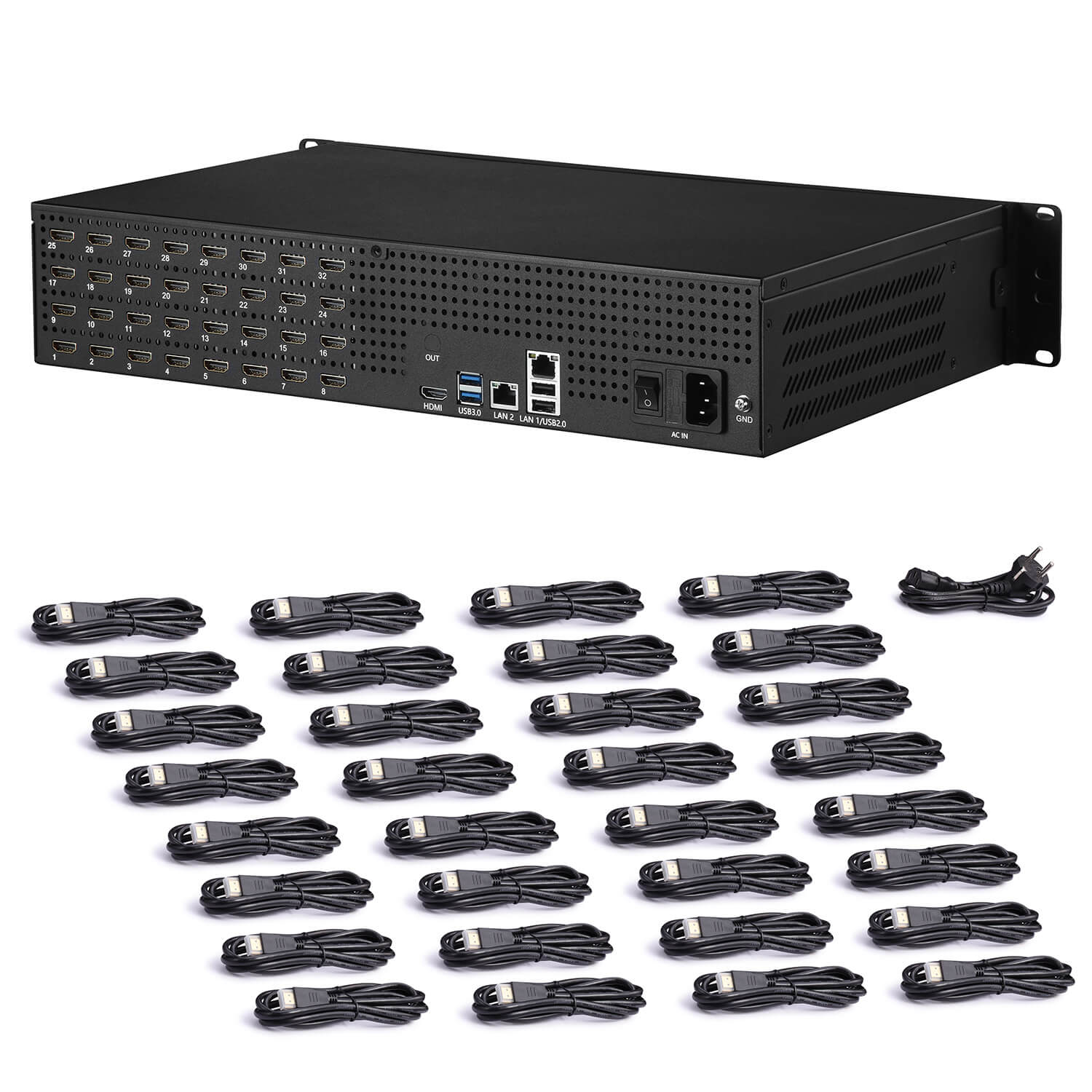

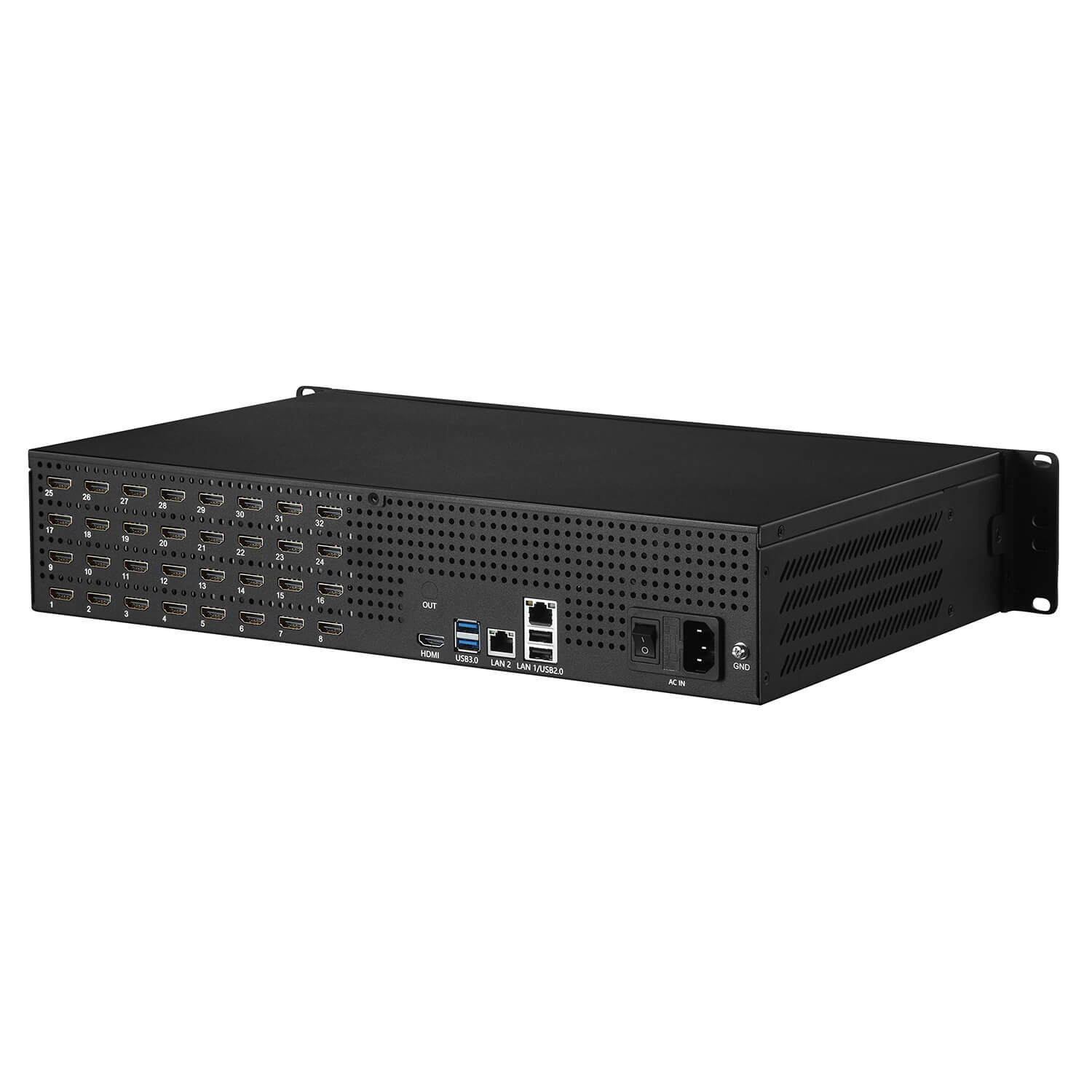

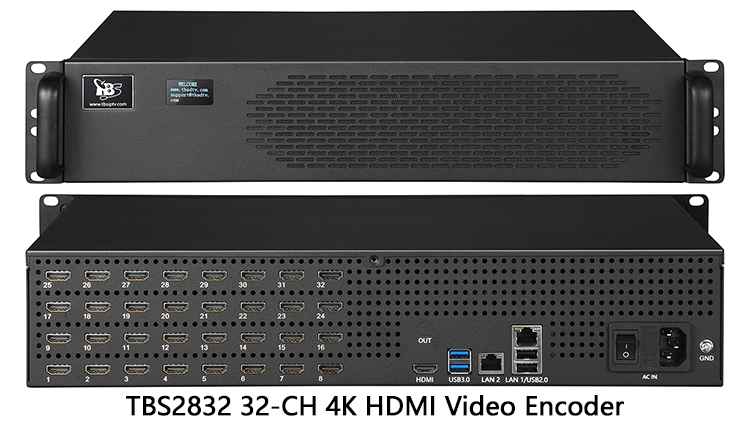

TBS2832 32 Channels 4K H.265 / H.264 HDMI Video Encoder

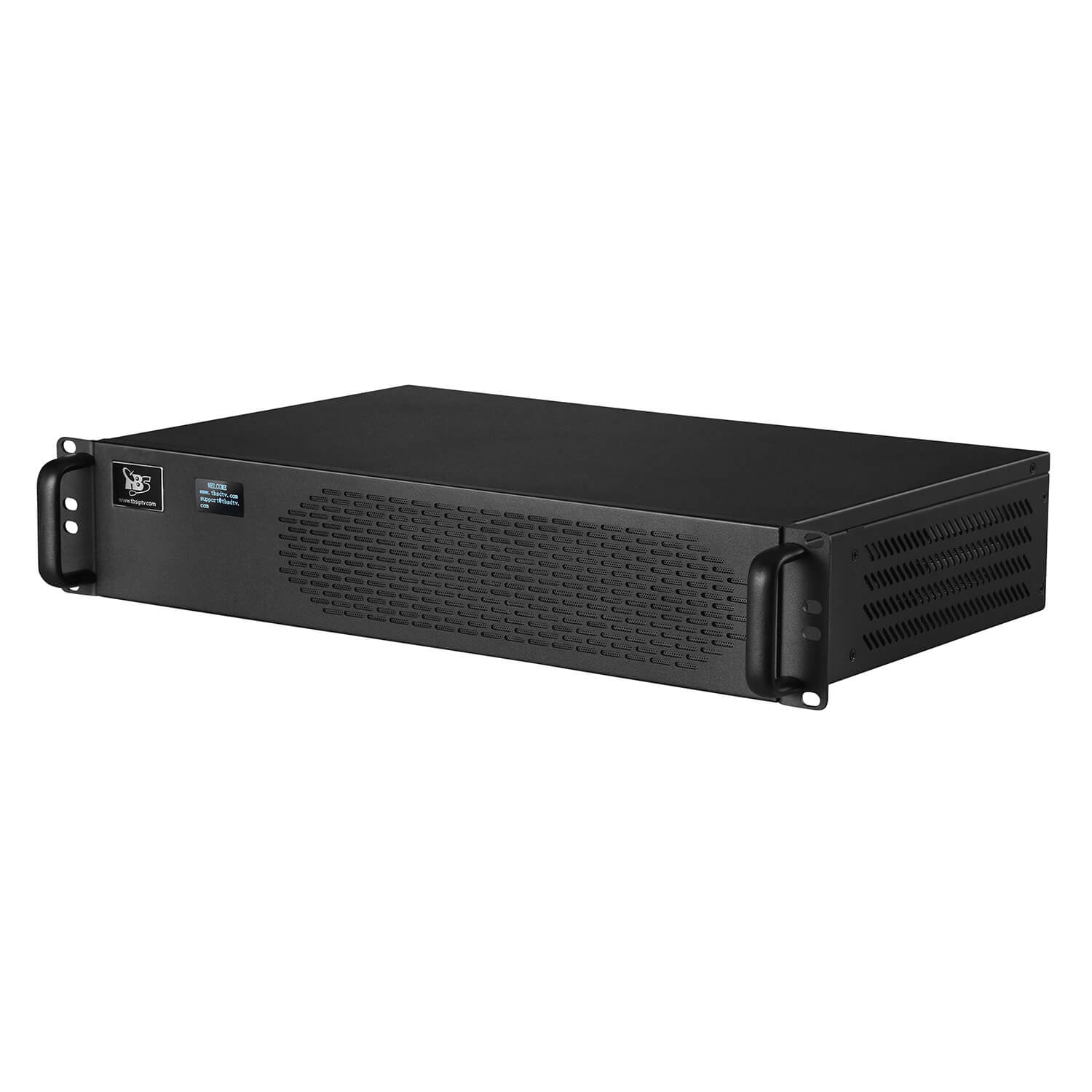

TBS2832 is a professional 2U, 32-channel 4K HDMI video encoder engineered for high-quality content streaming and display. It captures HDMI input at up to 4K@30Hz and can stream simultaneously to multiple popular platforms, such as YouTube, Facebook, and Twitch, as well as to custom RTMP/RTMPS servers. With support for a wide range of output protocols-including HTTP, HLS (M3U8), SRT (Listener/Caller), UDP multicast, and RTMP-it enables robust and flexible multi-platform broadcasting.

TBS2832 32-CH 4K HDMI video encoder captures and records HD content in H.265/H.264 format from various sources, including PlayStation consoles and digital video cameras. Furthermore, its intuitive web UI enables seamless channel switching and configuration adjustments, which streamlines operations and significantly improves the television viewing experience.

Features

• 32-CH 4K@30fps HDMI input and 32-CH 4K@30fps encode
• H.265/HEVC and H.264/AVC compression
• Supports HTTP, HLS(M3U8), SRT Listener & Caller, UDP multicast, RTMP/RTMPS output
• Multiple protocol outputs simultaneously
• Supports OSD overlay, including inserting logo/text into video
• Dual LAN port output with efficient management
• Supports HDCP 1.4
• Flexible and friendly webpage control
• OLED display shows basic information (e.g. product name and IP address.)

Applications

• Digital TV broadcasting system
• IPTV & OTT system
• Datacasting and monitoring
• Live TV encoding and streaming
• Digital signage project
• Remote video conference

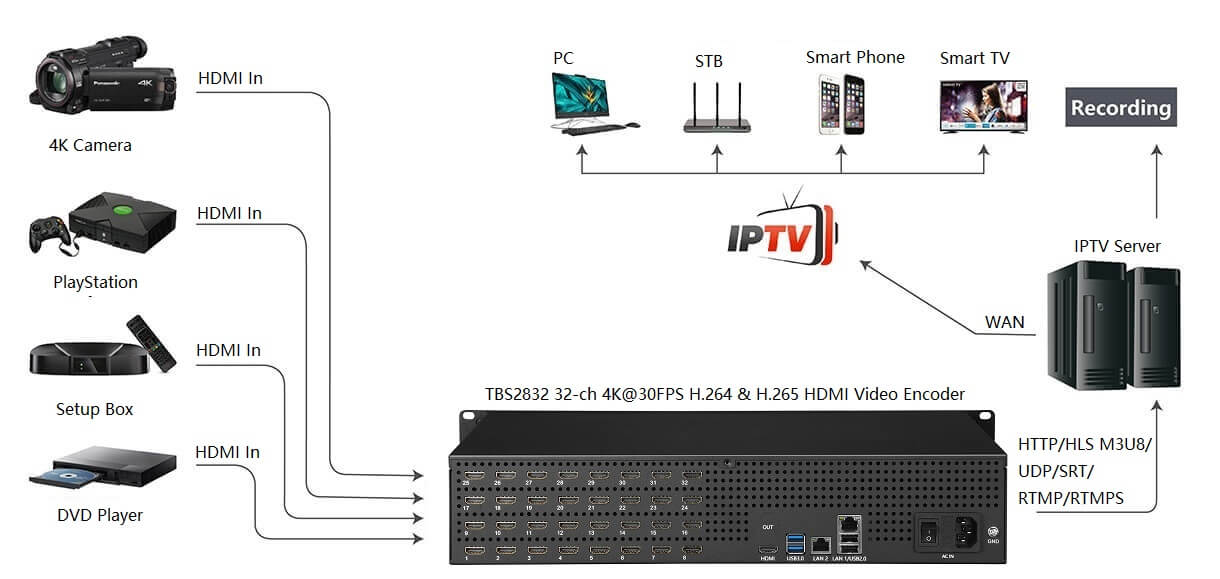

IPTV

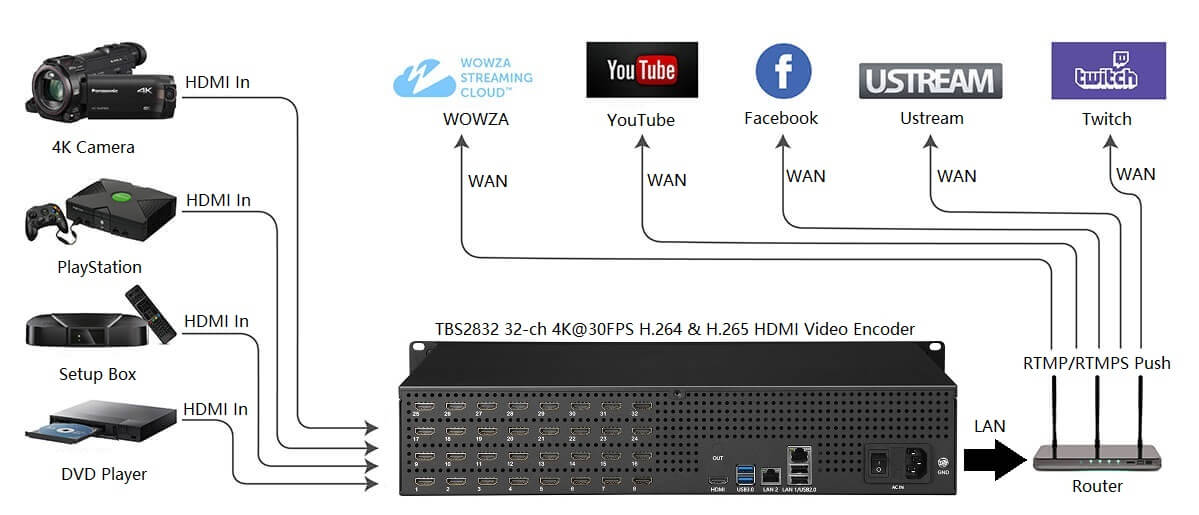

Live streaming to social media

Why choose TBS2832 32 Channels 4K HDMI Encoder?

Supports 32 Channels Real 4K@30Hz Encode

• 3840x2160p@30fps(H.265), real 4K encode

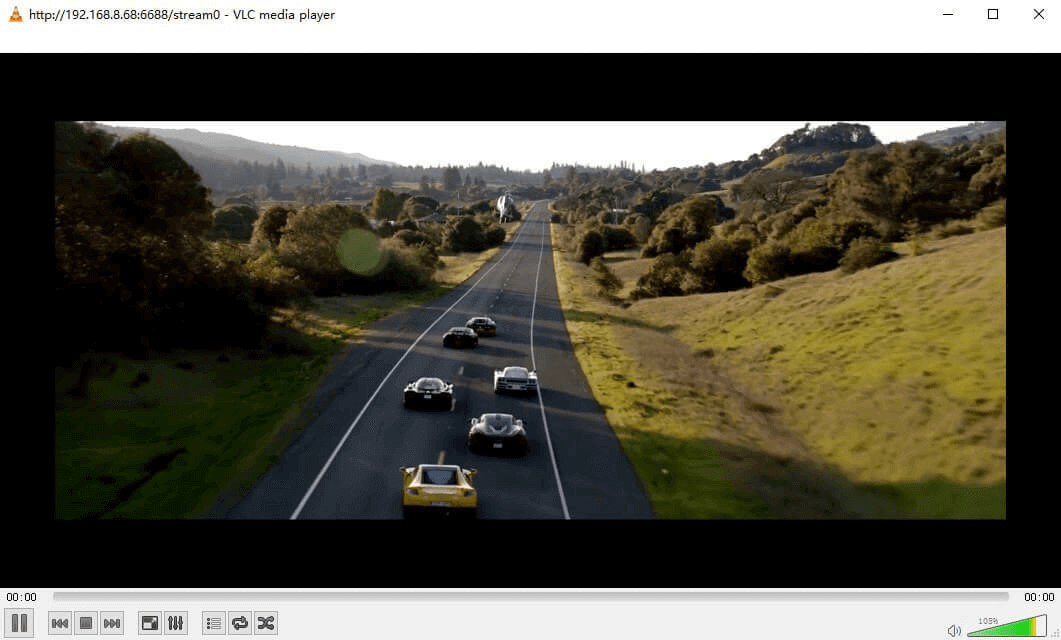

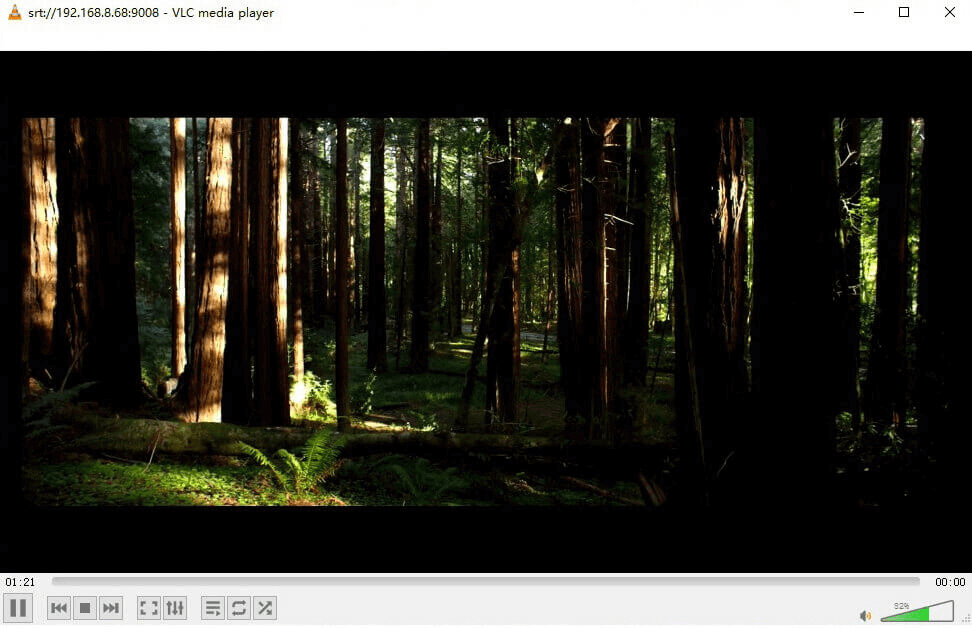

• Capture & deliver live video in 4K Ultra HD over Public Internet
• Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
• Efficient encoding results in the saving of bandwidth, even at high resolutions.

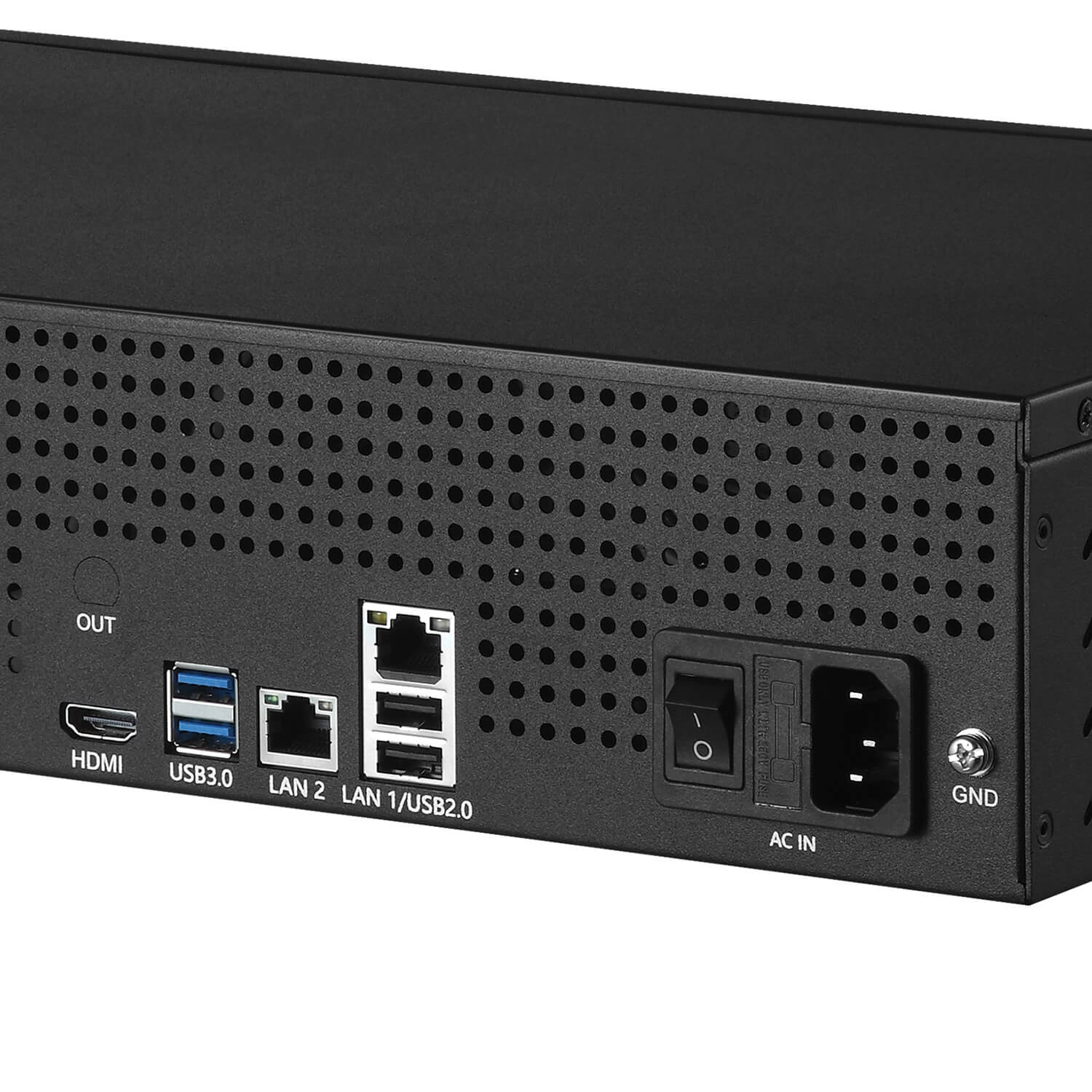

Dual LAN Output, Efficiently Managed

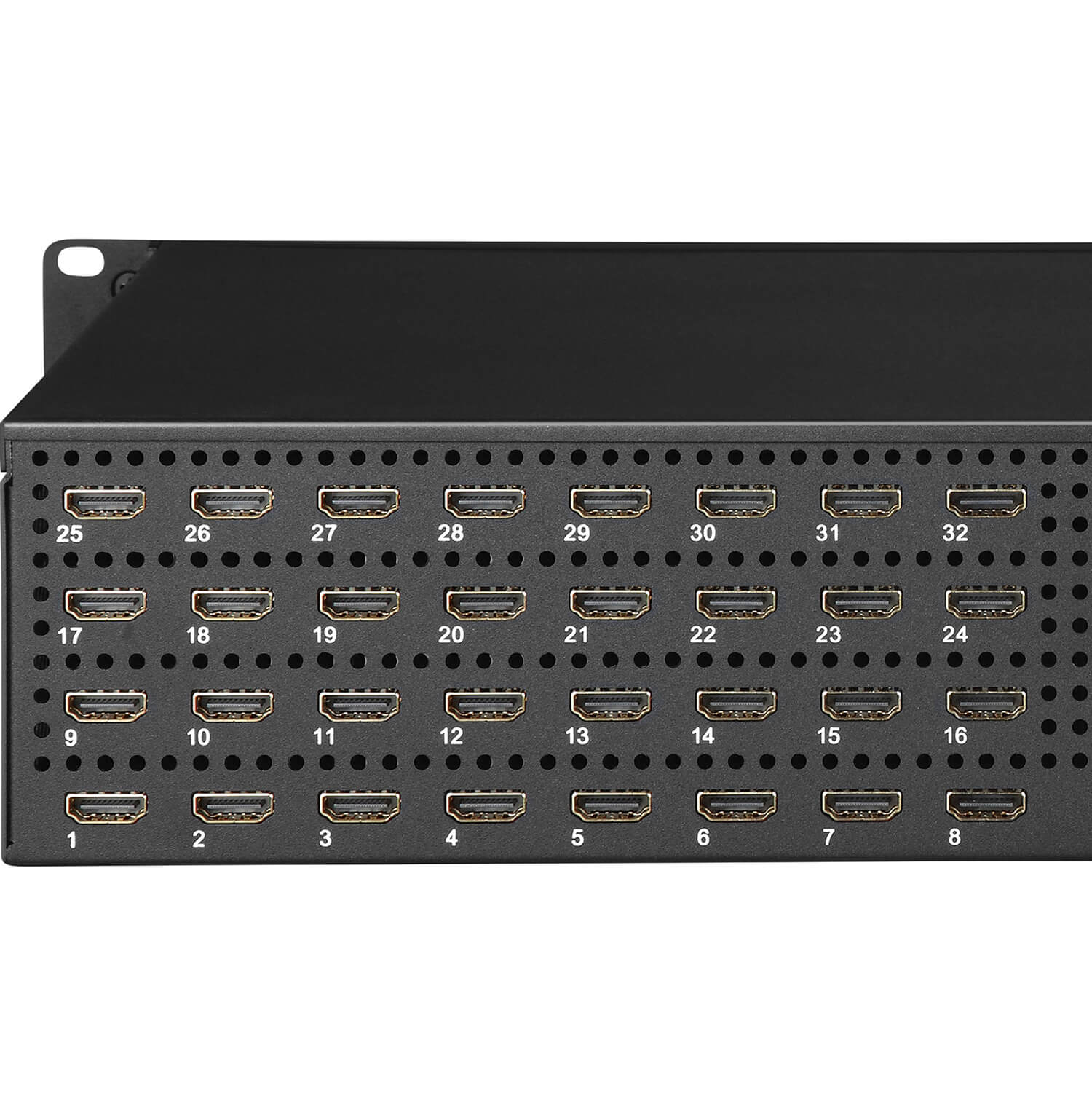

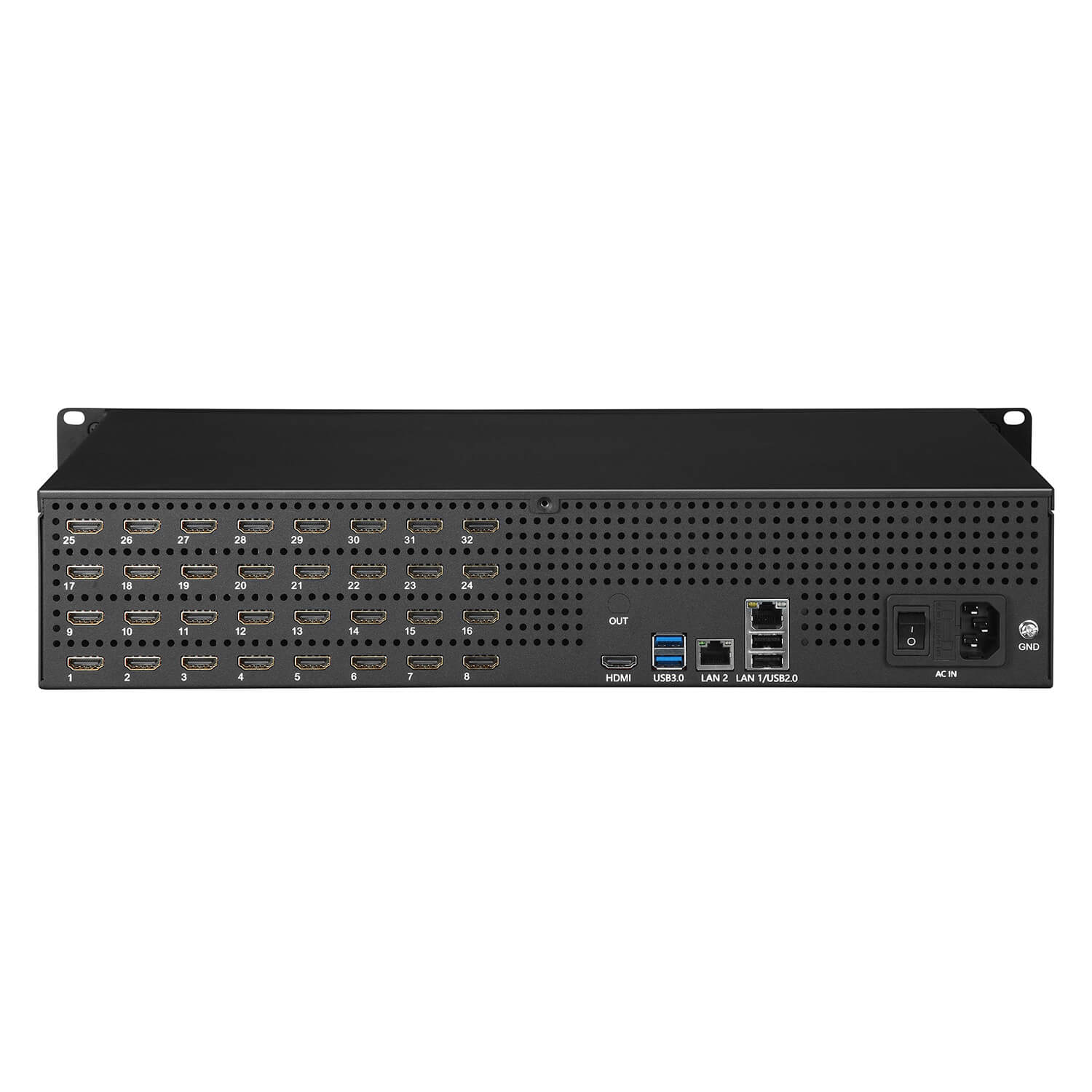

• TBS2832 4K HDMI video encoder supports 32 HDMI inputs with only two LAN ports for output and management, which greatly save source and space for you.

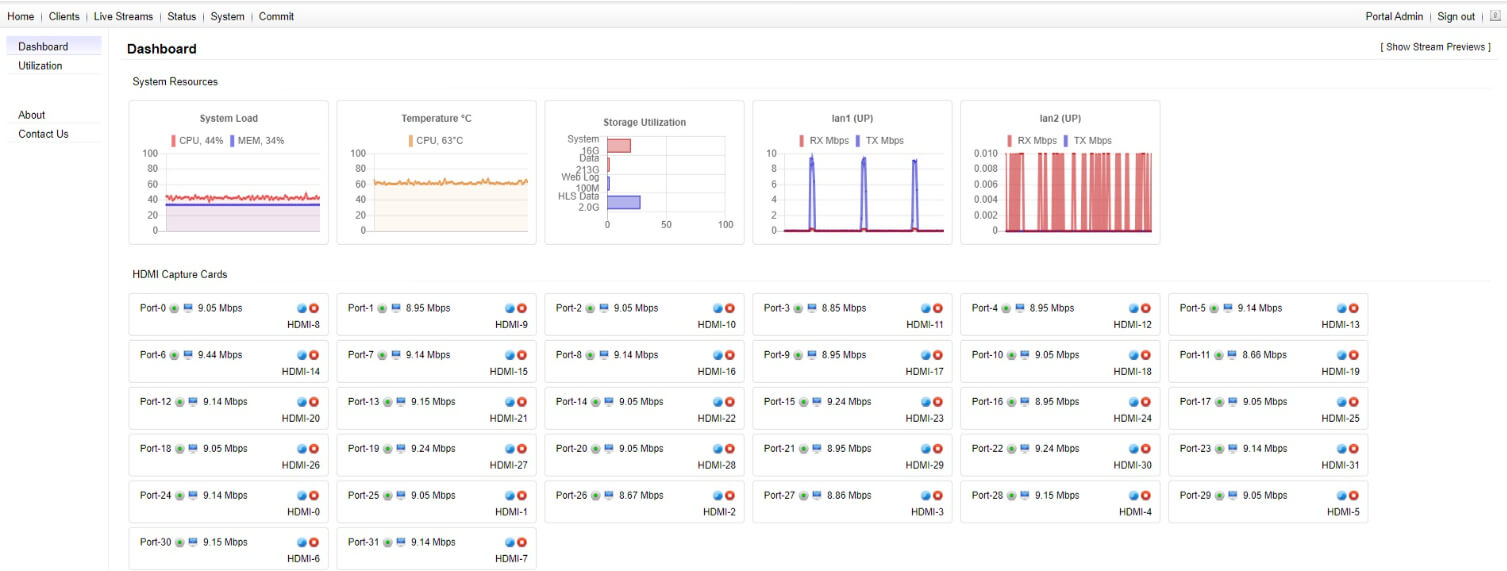

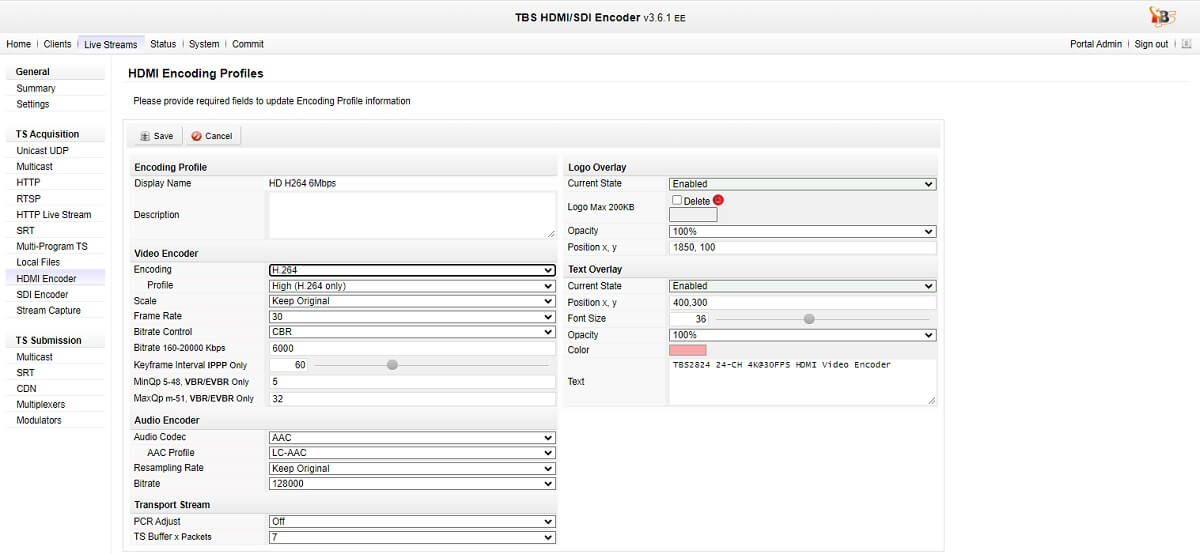

• The intuitive web UI allows you to manage the TBS2832 4K HDMI video encoder easily at any time.
