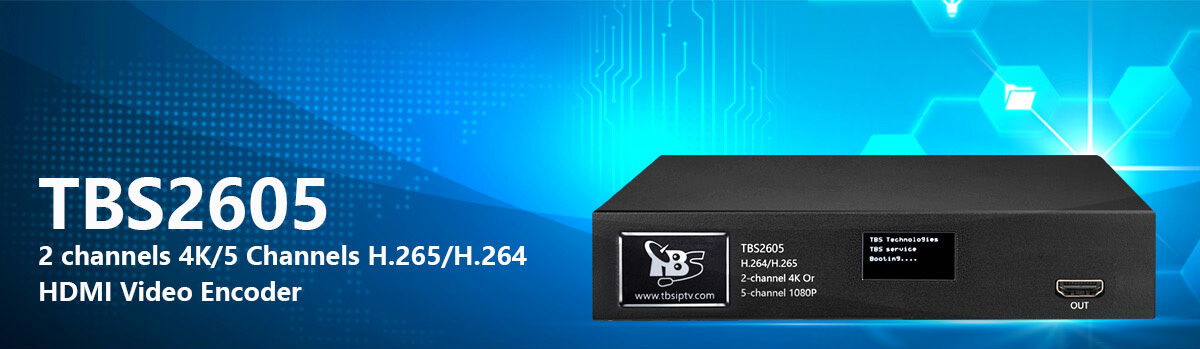

TBS2605 NDI®|HX2 supported 2 channels 4K/5 Channels 1080P 60hz HDMI Video Encoder - Pre Sale

Model#: TBS2605 NDI

Weight: 1800 g(s)

If you need more, please Contact us directly.



TBS2605 is a professional 4K/H.265 HDMI encoder, which is also our newest HD audio & video encoding device with powerful functions. It supports real 4K max 3840 x 2160P@30fps HDMI inputs.

TBS2605 HDMI Video encoder not only supports 2 channels 4K or 5 channels H.265 encoding, but also supports multiprotocol output. Each channel supports simultaneous output of HTTP/HLS/RTMP(RTMPS)/RTSP/UDP/SRT protocols, which is ideal for customers who need to use different protocols output.

TBS2605 is coupled with Web UI managing system and telnet remote access, and equipped with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime or anywhere.

The product can be applied to education, health care, IPTV, conference, distance education, news interview, banking, transportation and other industries.


TBS2605 has been upgraded to integrate with NewTek's royalty-free NDI®|HX2 technology, converts the HDMI input signals into full-bandwidth NDI streams separately, enabling users to connect HDMI-equipped sources to NDI-enabled media networks, devices and applications effortlessly.


  • 5 x HDMI 1.4 inputs
  • Support Network streams in for video mix or protocol converting
  • H.265/H.264 Encode
  • Multiple protocol outputs: HTTP/HLS/RTMP(RTMPS)/RTSP/UDP (Multicast, Unicast)/SRT
  • Support video mix and split screen function ( 1, 3, 4, 9 screens for your choices )
  • Native official Newtek SDK-based development ensuring TBS2605 access to last generation NDI®|HX2 SDK and updates.
  • NDI streams output thru local switch and web user interface
  • The output NDI®|HX2 streams can be automatically detected by any NDI-enabled media networks, devices and applications
  • Support OSD logo, text, mosaic
  • Single LAN port output and management

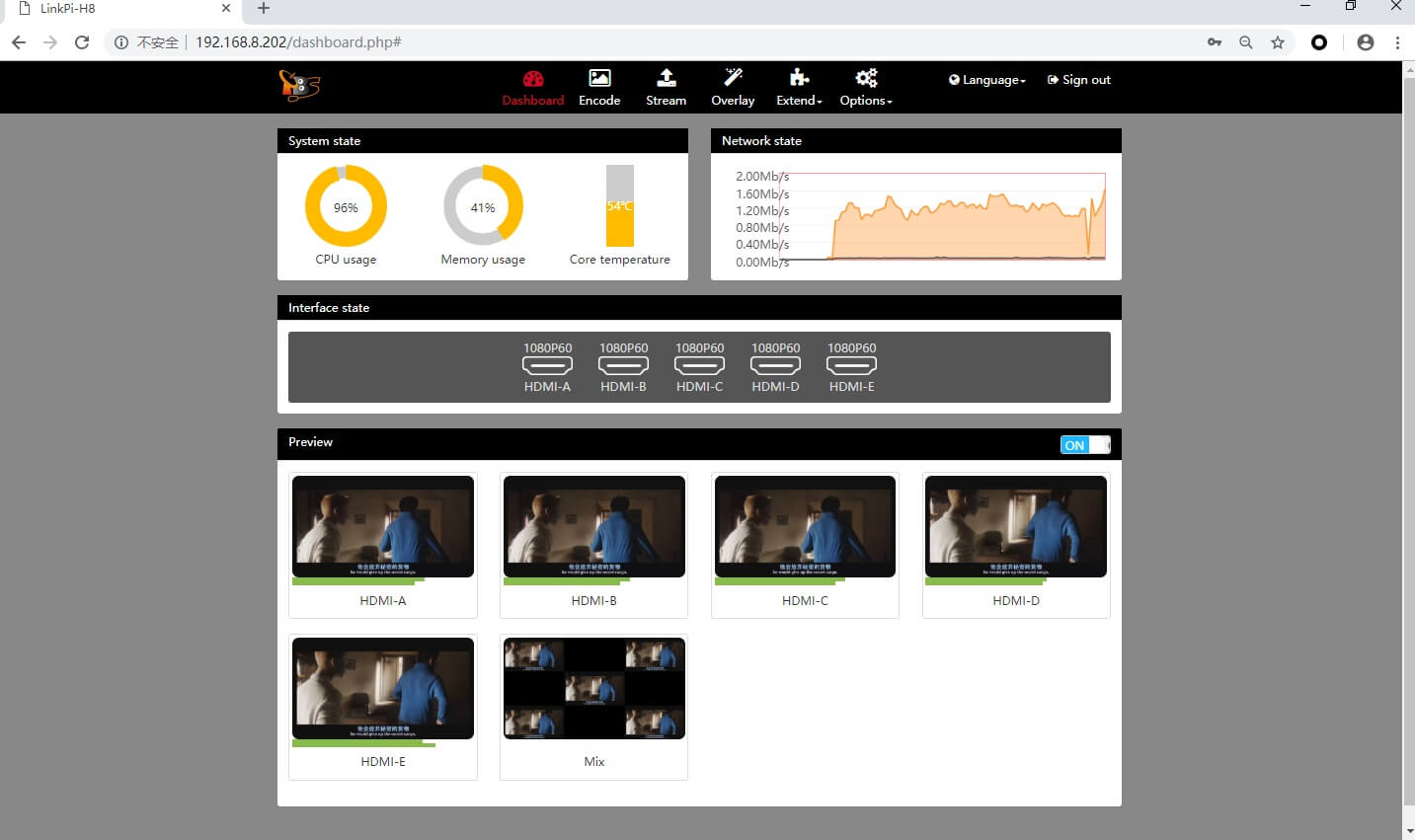

  • WebUI control
  • H5 Player
  • Video Rotator: 0 degree/90 degrees/180 degrees/270 degrees
  • LCD display for IP, encode status and bitrate info

Why you choose TBS2605 ?

Supports 5 channels 1080P 60hz encode or 2 channels 4K encode

  • 3840 x 2160P@30fps. Max Resolution (4K/UHD)
  • Real-time encoder supporting resolutions up to 4K with HEVC and H.264 encoding.
  • Efficient encoding leads to bandwidth savings, even at high resolutions.
  • Ideal for future-proofing workflows that need to move to 4K UHD and for those that require the highest video quality.

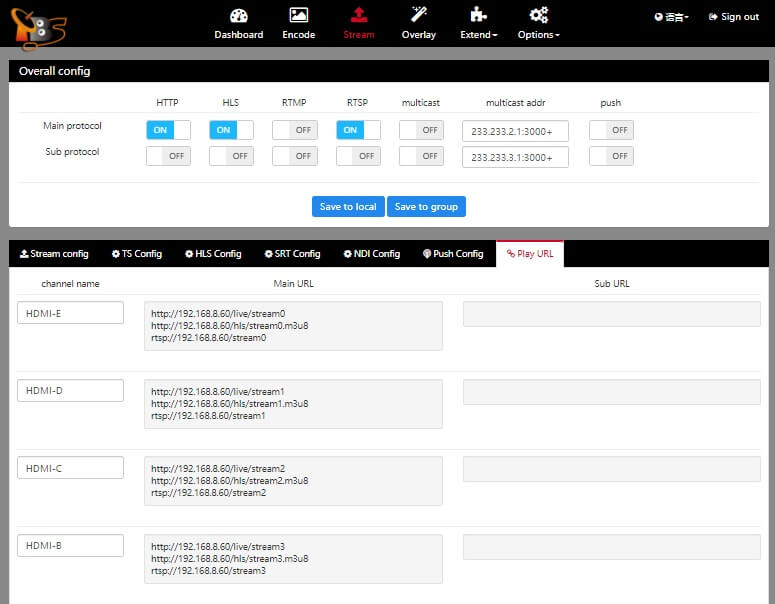

Multiprotocol output

  • Compliant with HTTP/HLS/RTMP(RTMPS)/RTSP/UDP/SRT protocols
  • Each channels have multiple protocols for outputting

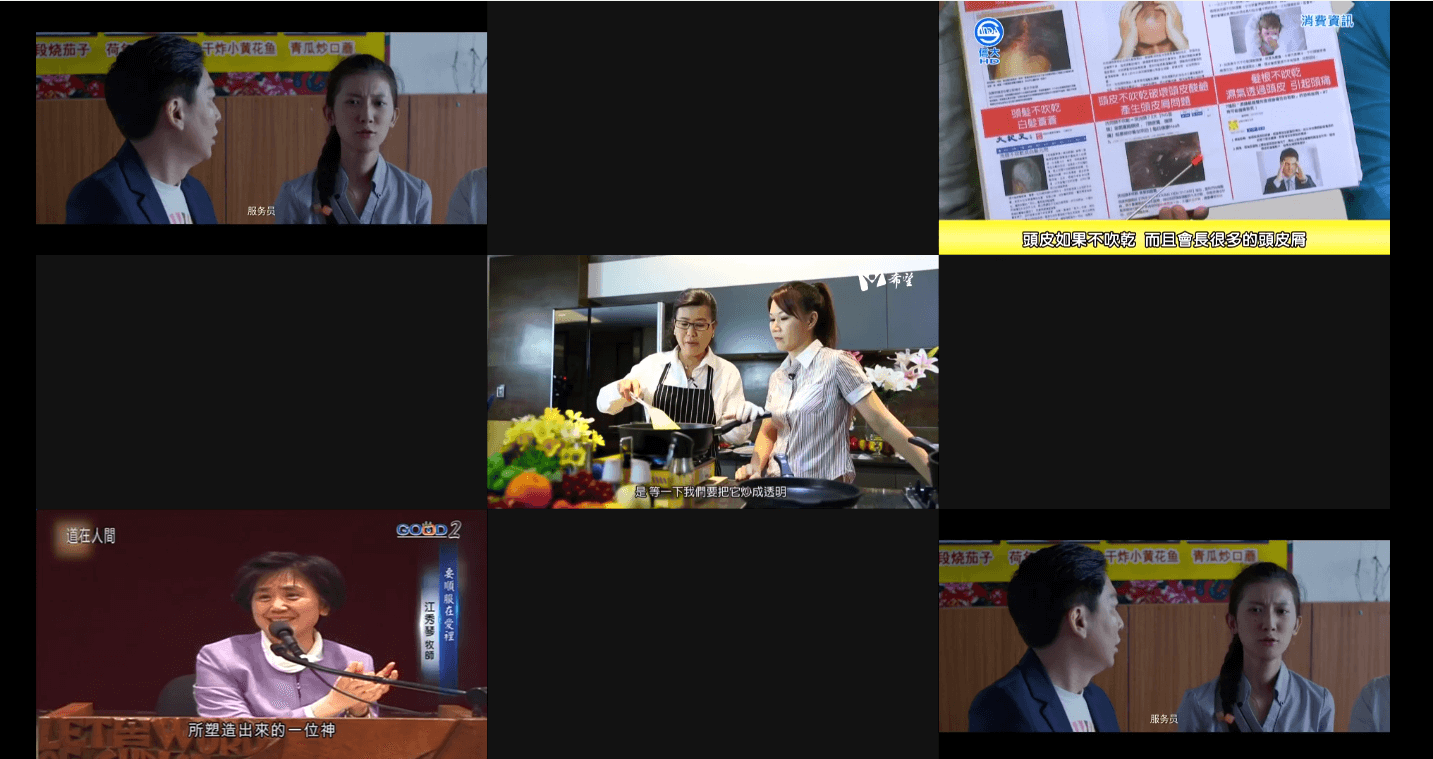

Video mix function, multiplex and split screen display

Video mix function allow you to choose the channels from HDMI and IP , merges them together and provide one new TS, then decode them , with the screen display function , offer users flexible choices to control and monitor the channels at anytime and anywhere.

Single LAN port output and management

TBS2605 supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you. And reliable Web UI let you easy to setup and manage.

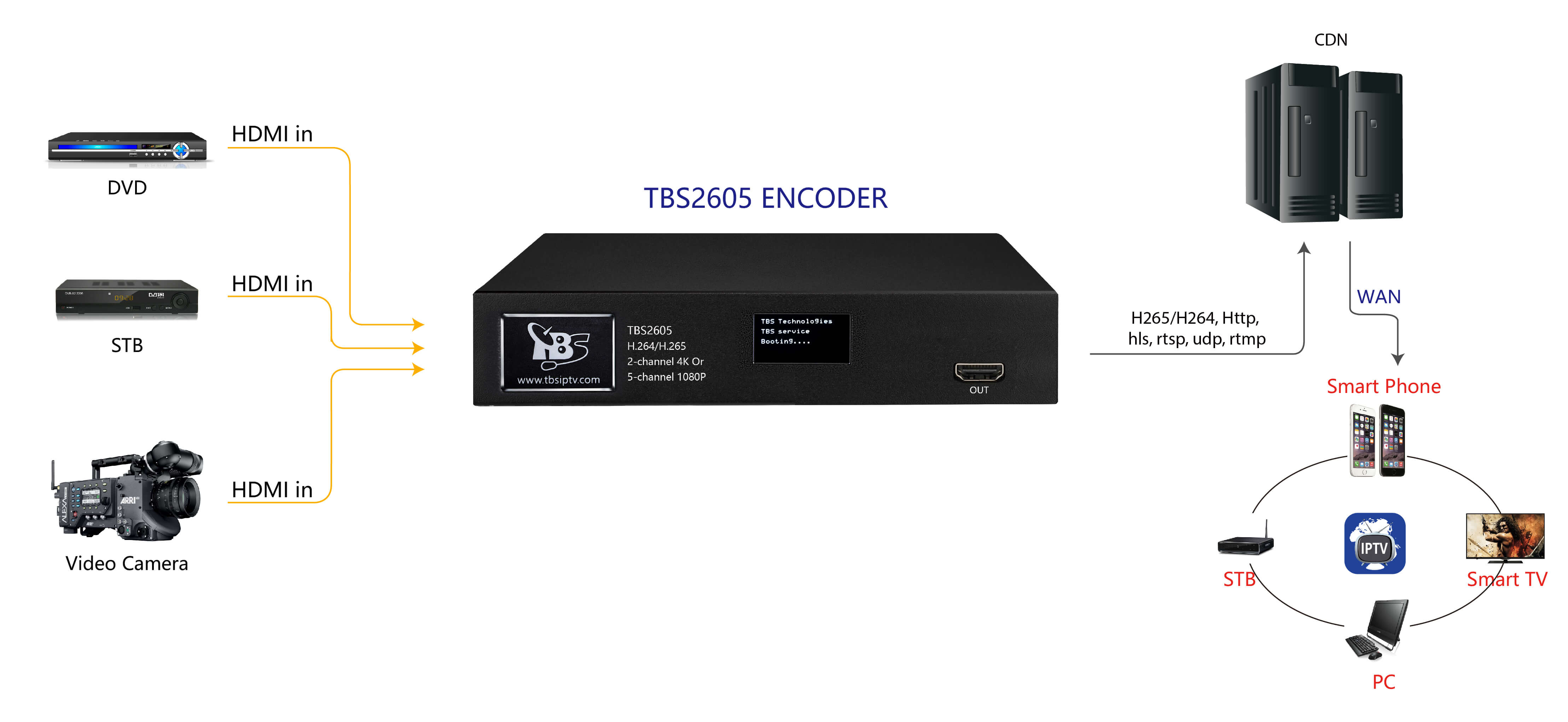

IPTV - Topology

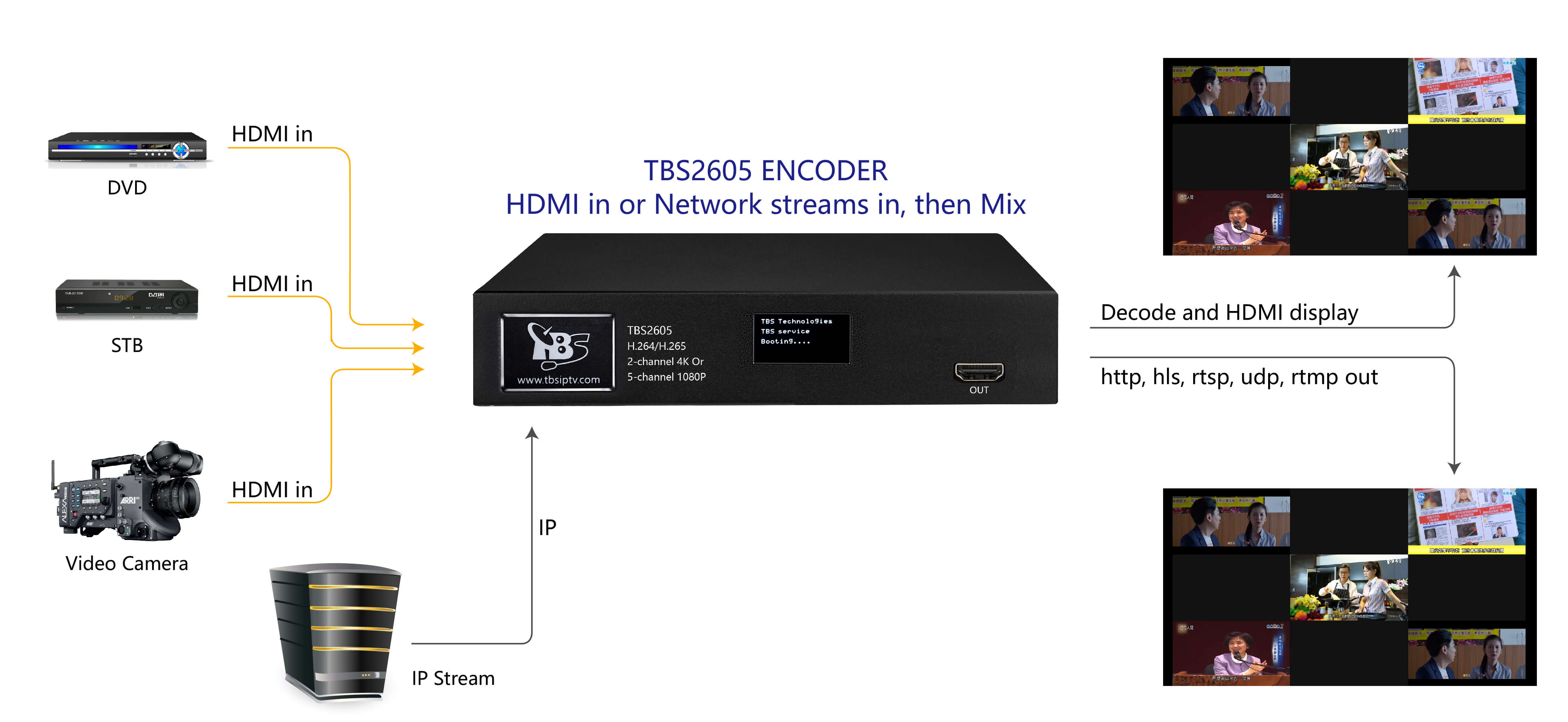

Video Mix and monitoring - Topology

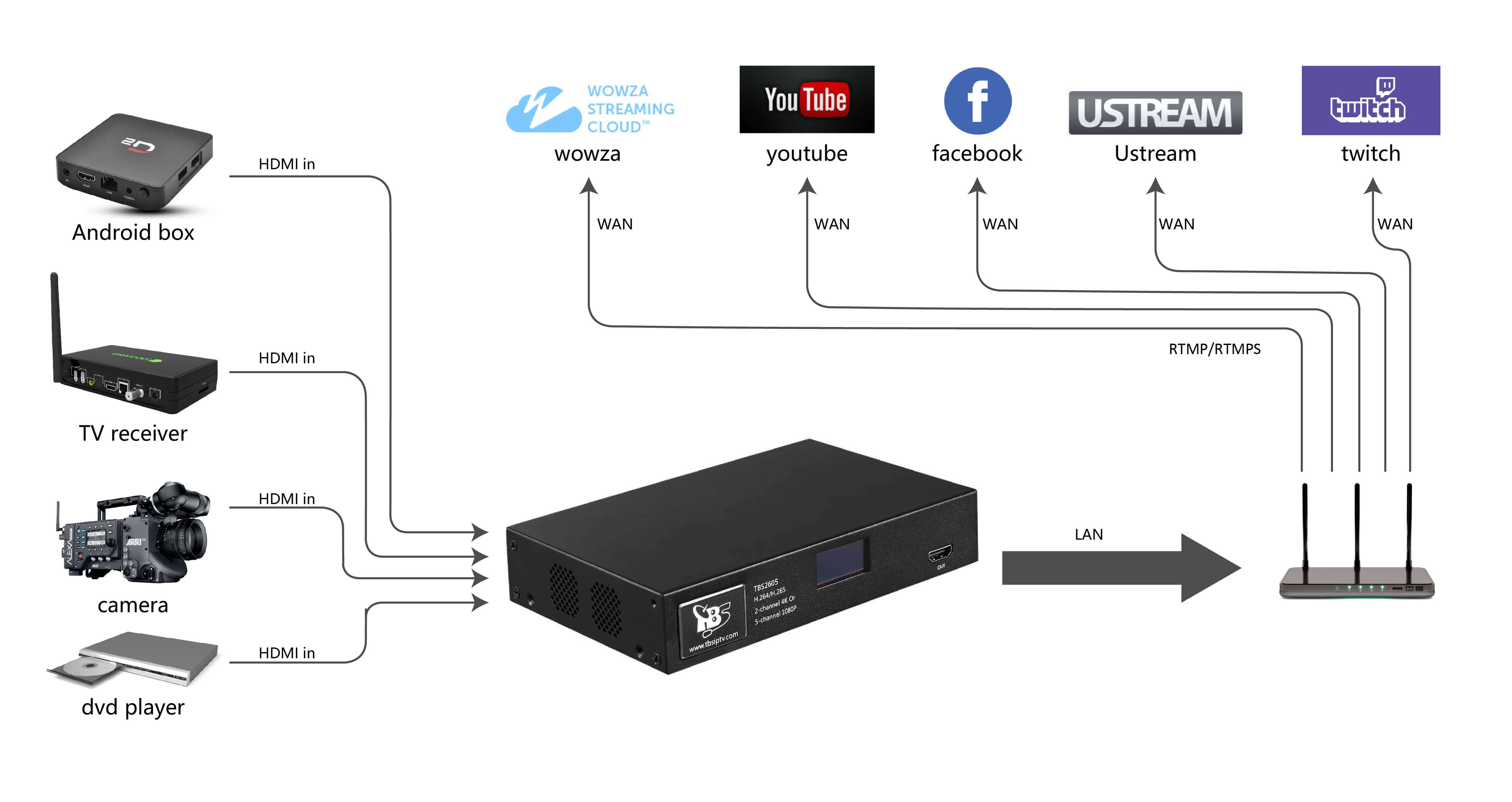

Live streaming to social media


Model Number TBS2605
Video Input 5x HDMI 1.4
Audio Input HDMI embedded audio
Resolution Input: 3840x2160p_30hz, 1920x1080p_60hz, 1920x1080_50hz, 1920x1080i_60hz, 1920x1080i_50hz, 1920x1080p_25hz, 1920x1080p_24hz, 720p_60hz, 720p_50hz, 576p, 480p, and ect.
Output: 3840x2160p@30fps, 1920x1080p@60fps, 1920x1080p@50fps, 1920x1080p@30fps, 1920x1080p@25fps, 720p@60fps, 720p@50fps, 1024x576, 850x480, 720x576, 640x480, 360x240, customized, and etc.
Encode H264 base line, H264 Main, H264 High, H265 Main
Data Rate 0.5Mbps~20Mbps
Rate Control CBR/VBR
Encoding AAC, MP3, MPEG2, PCMA
Sampling rate: 16K, 32K, 44.1K, 48K
Channel Stereo (R + L) or Mono (R/L)
Sampling precision 16 bit
Data Rate 32Kb/s ~ 256Kb/s
Network Stream Input
Video H.264 / H.265
Audio MPEG 1/2, MP3, AAC
Protocol NDI | HX / HTTP / RTSP / RTP / UDP (multicast, unicast) / RTMP(pull)
NDI® Interface:

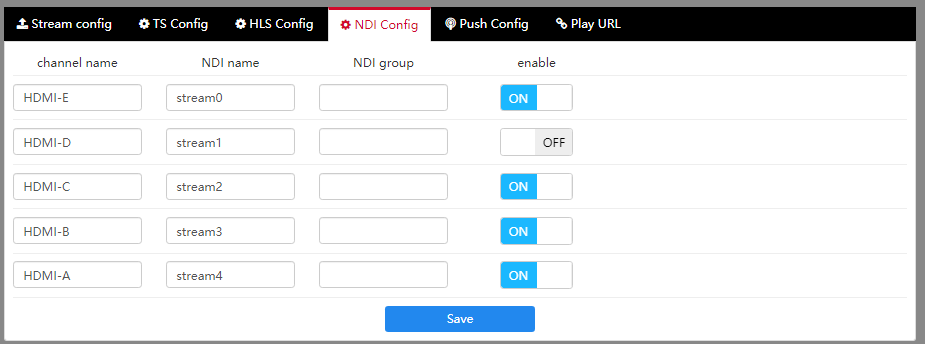

NDI® Channels enable
NDI®|HX2 output stream being detected automatically.
Ethernet / RJ45 1000 Base-T Ethernet interface
Control WEBUI
General Spec.
Dimension 185 * 119 * 36mm(length, width, height)
Power less than 15W

NDI® is a registered trademark of Newtek
