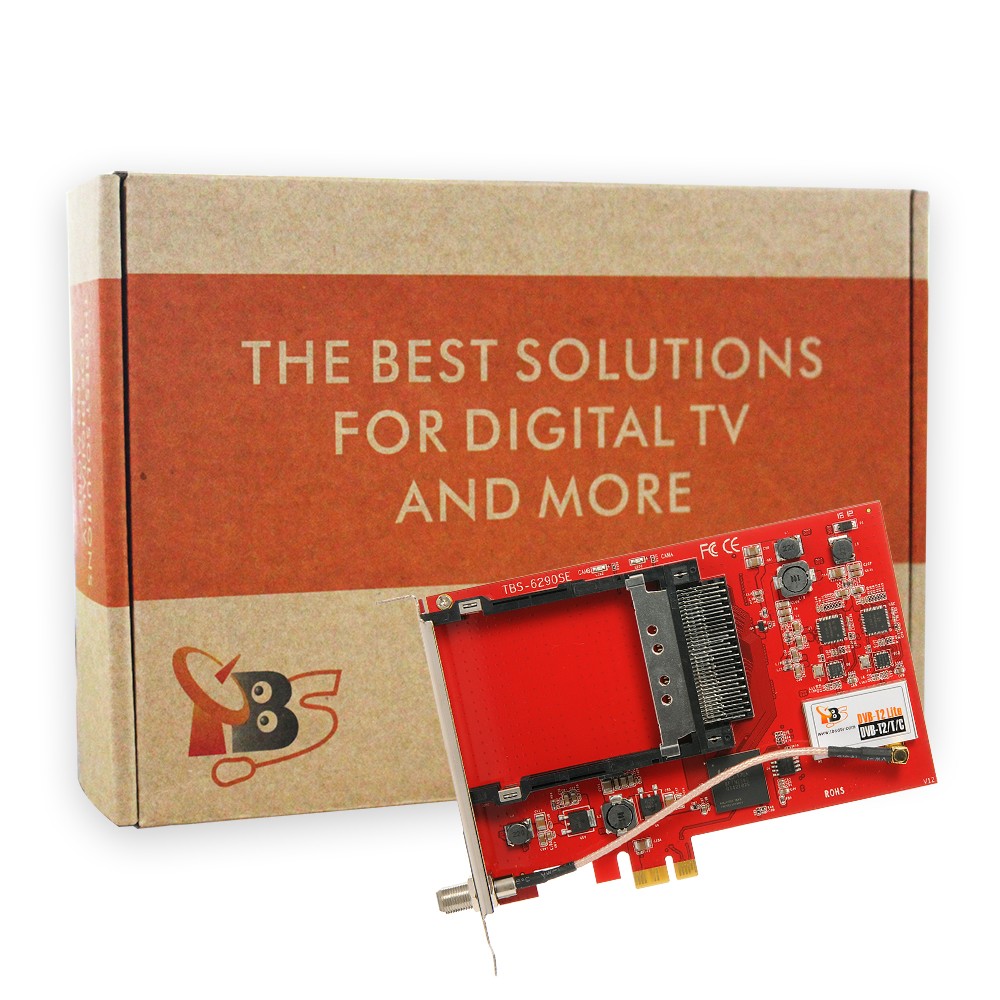

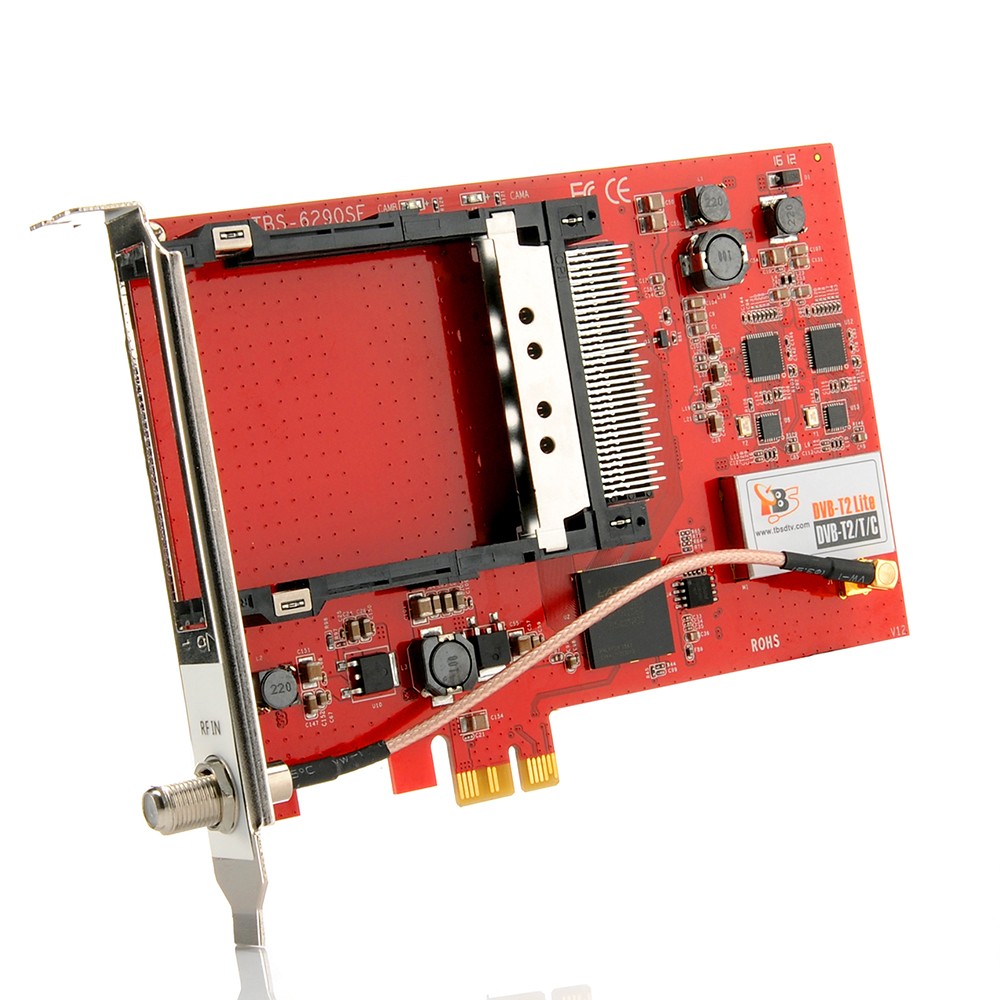

TBS6290SE DVB-T2/T/C Dual Tuner Dual CI PCIe Card,Terrestrial & Cable PCIe Card


Model#: TBS6290SE

Price:
179.99
Weight: 400 g(s)
Ship From: China
You will earn 180 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)
Optional:

If you need more, please Contact us directly.

Description:

TBS6290SE is the latest DVB-T2/T PCI Express tuner, it's equipped with dual tuner and dual CI slot, which allows you to enjoy two live terrestrial TV channels from two different frequencies at the same time, and it supports both reception of FTA (free to air) TV channels and encrypted TV channels.  TBS6290SE can be used as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the time-shifting function, it also enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver.

It's ideal for watching UK Freeview SD and HD channels on your desktop PC. Please ensure you can receive the Digital Terrestrial Television (DVB-T, DVB-T2, Freeview) service in your region. The TBS6290SE requires you use a high-gain roof aerial to enable and enjoy reliable digital television reception throughout the UK.

View More

Main Features:

  • Dual CI slot
  • Dual channel receiving simultaneously
  • DVB-T2/T/C SD or HD TV receiving
  • High-definition video, real-time and scheduled video recording
  • High sensitivity DVB-T2 Dual Tuner for the best digital TV reception
  • Windows BDA driver and Linux Driver ready

Specifications:

  • Support PLP (Physical Layer Pipe)
  • DVB-T2/T2 Lite/T
    • Receiving channel: VHF band and UHF band
    • Channel bandwidth: 6, 7, 8 MHz
    • DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
    • FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
    • Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
    • Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
    • Intermediate frequency
    • IF mode: low IF
    • Center IF Frequency: 3 ~ 5 MHz
    • Note: default 4MHz
    • RF-Input impedance 75Ω (IEC-DIN female)
    • RF-Output impedance 75Ω (IEC-DIN male)
  • DVB-C
    • Fully compliant with DVB-C and ITU J83 A/B/C specifications
    • Receiving Frequency: 47~862 MHz Tuning Range
    • Input level: -65~-10dBm
    • 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
    • Symbol Rate: 0.87 to 9Mbaud
  • TV card size: 145x104.5mm (length x height)
  • Power consumption: 12V * 600mA=7.2W, 3.3V*200mA=0.66W

System Requirements:

  • Windows XP / Vista/ 7/8, Linux
  • Pentium 4 2.0 GHz, Pentium M 1.3 GHz
  • For HDTV: 2.6 GHz multi core processor
  • Hard disk with min. 1 GB free capacity
  • Sound and graphics card with support for DirectX 9 or higher
  • Available PCI Express x1, x4, x8 or x16 slot
  • CD/DVD drive for software installation

*The TBS6290SEis with PCI Express x1 interface, which is compatible with motherboard that has PCI Express x4, x8 or x16 interface.

Package Contents:
  • 1 x TBS6290SE
  • 1 x F connector
  • 1 x Low profile bracket
