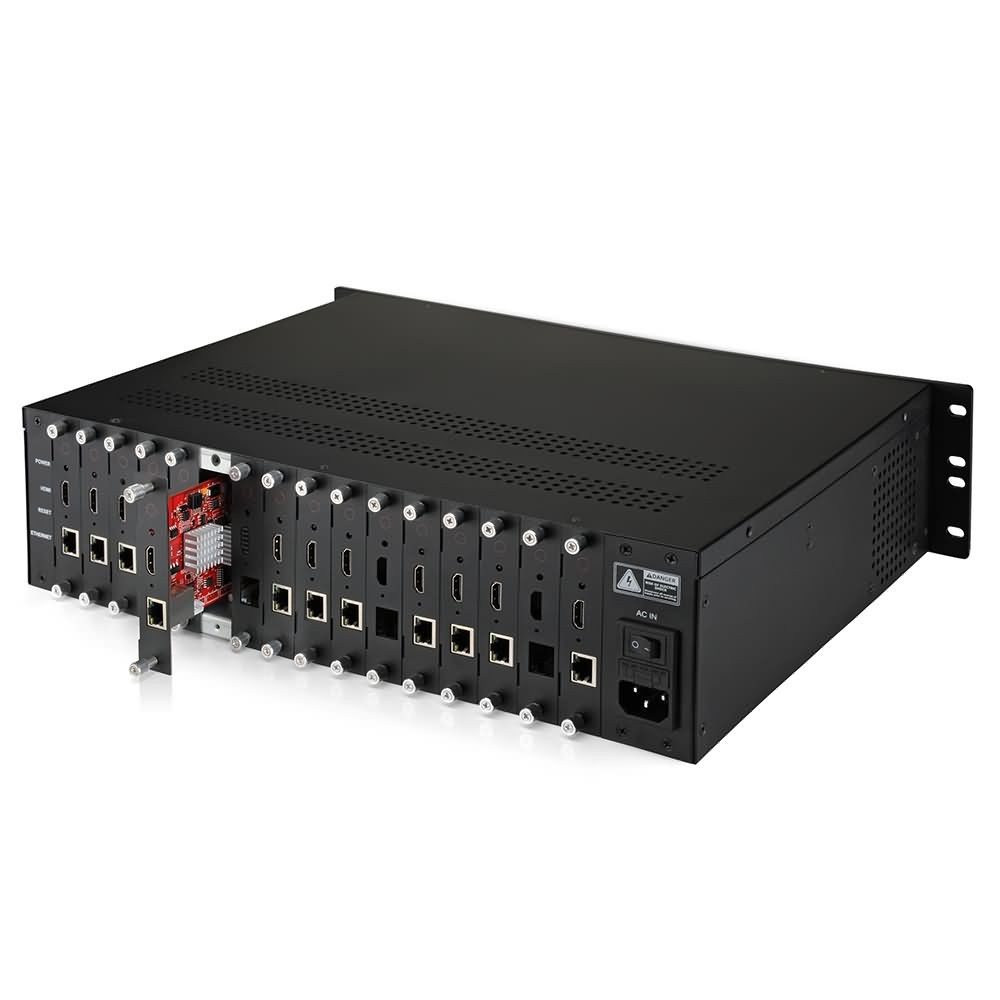

EU shipping!TBS2630 16 channel HD H.264/H.265 HDMI Encoder

  • item#: TBS2630
  • Price:
    0.00
  • Start from: 1 Unit(s)
  • Weight: 17000 g(s)
  • Ship From: Europe
  • You will earn 0 Points for buying this product. How to Use ?

Options:

16 x Channels

  • Shipping Methods
  • Payment Methods

Relative Products

Description:

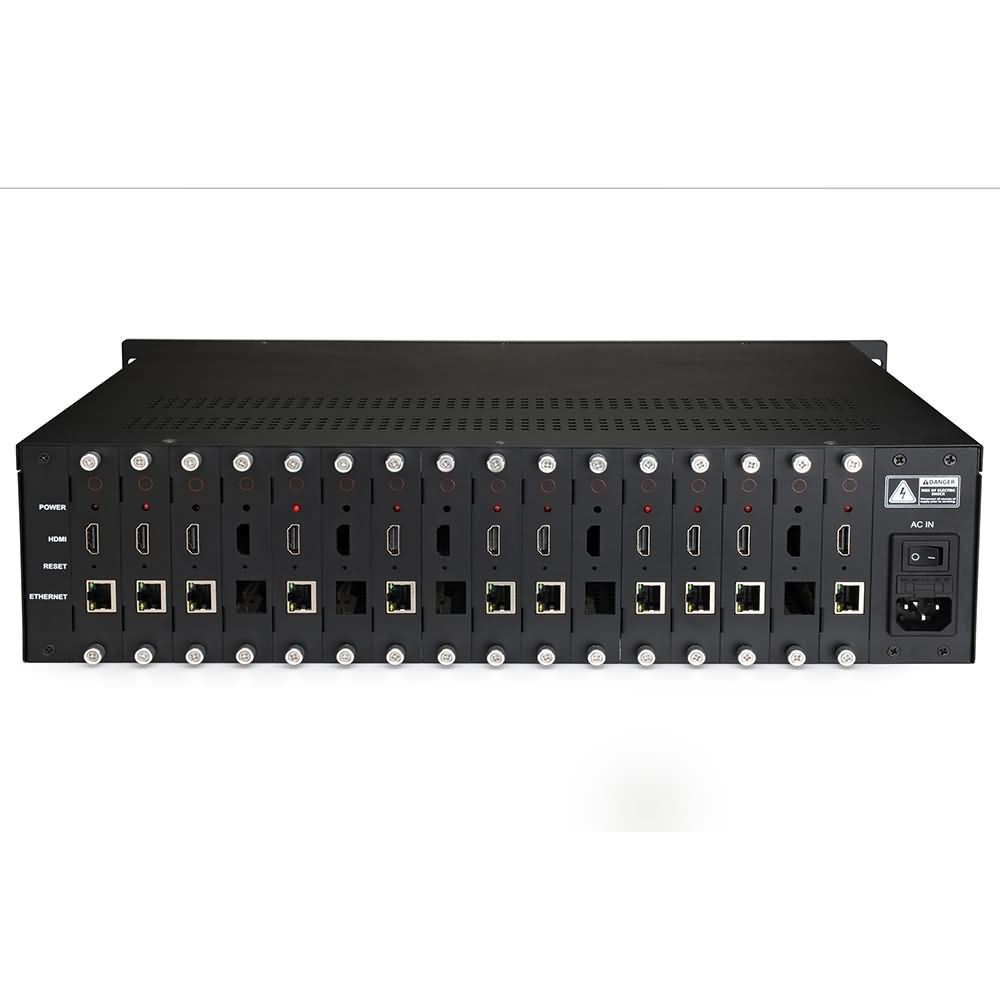

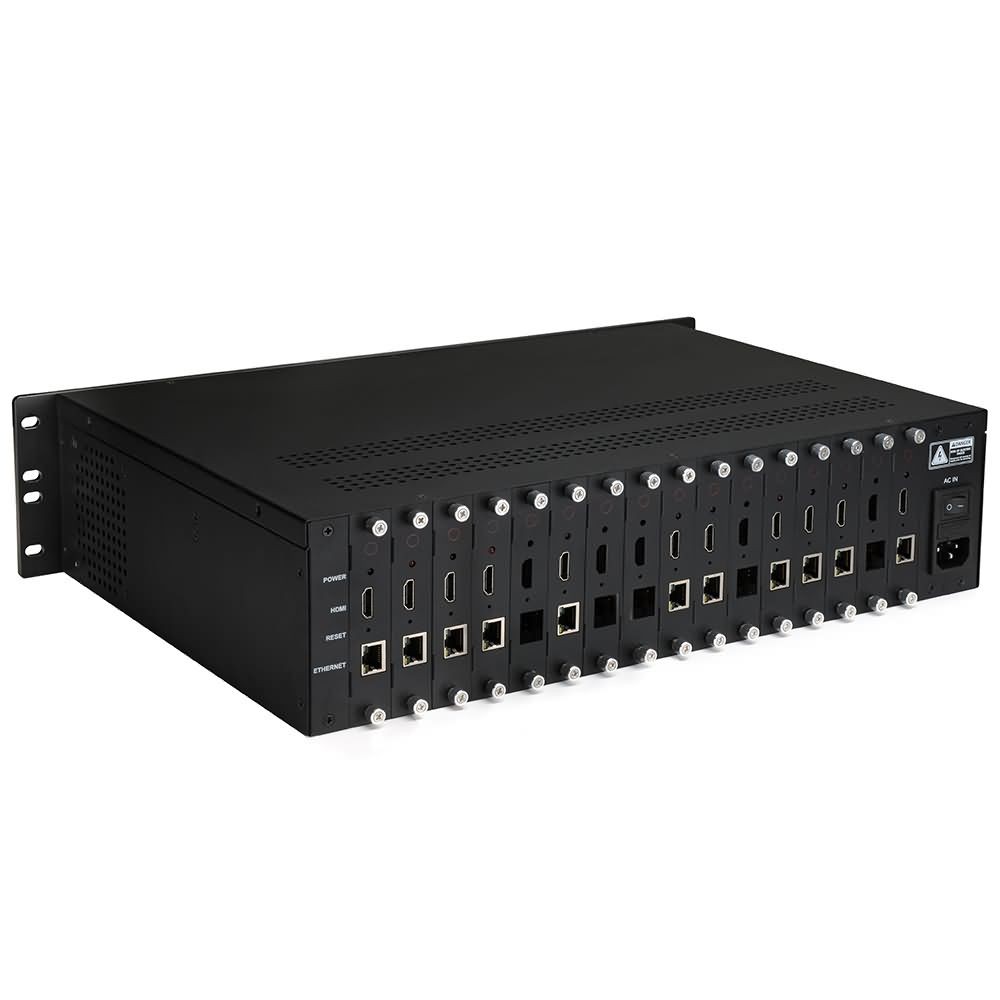

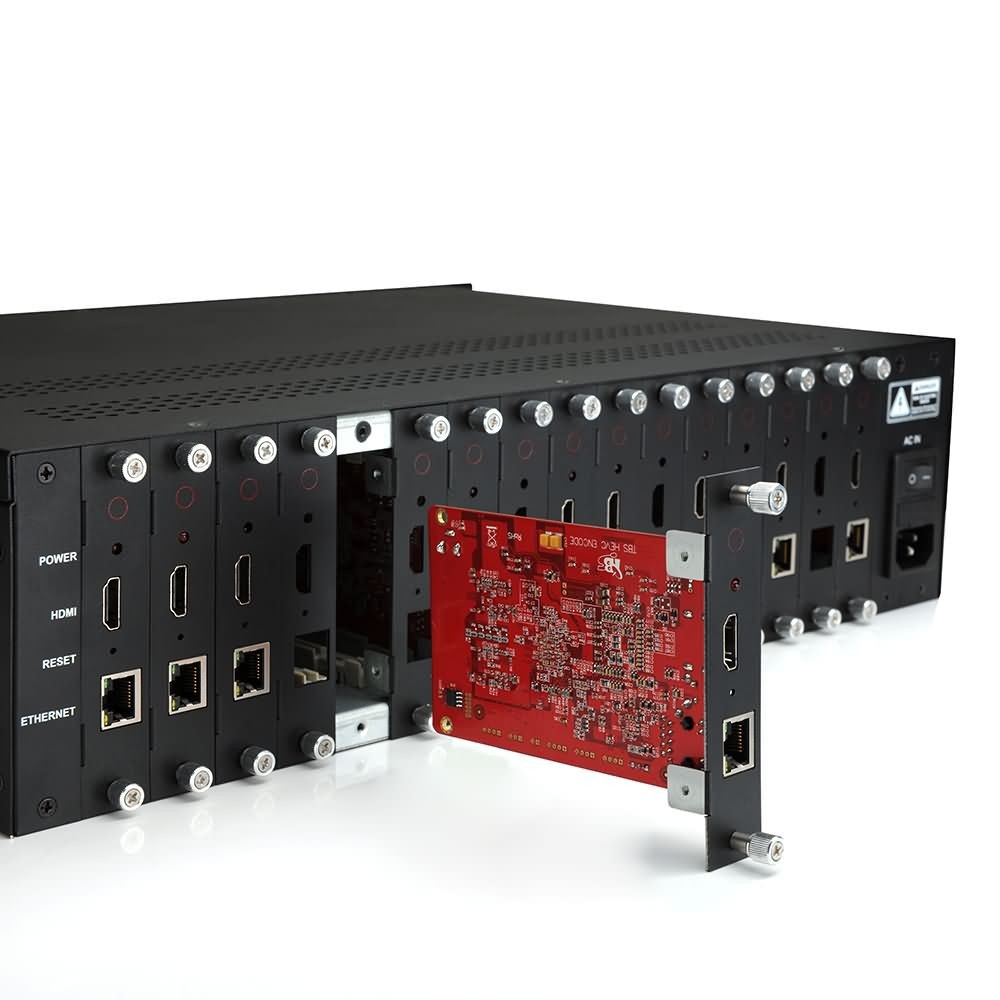

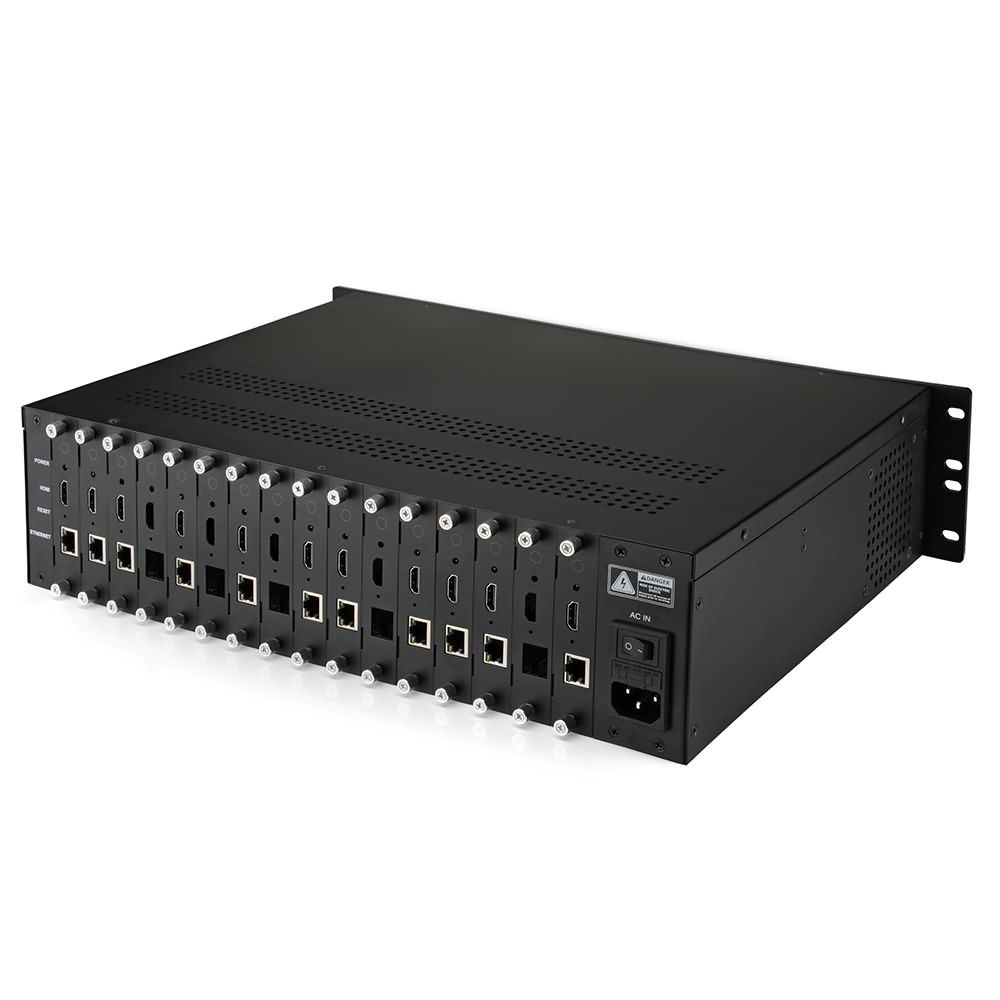

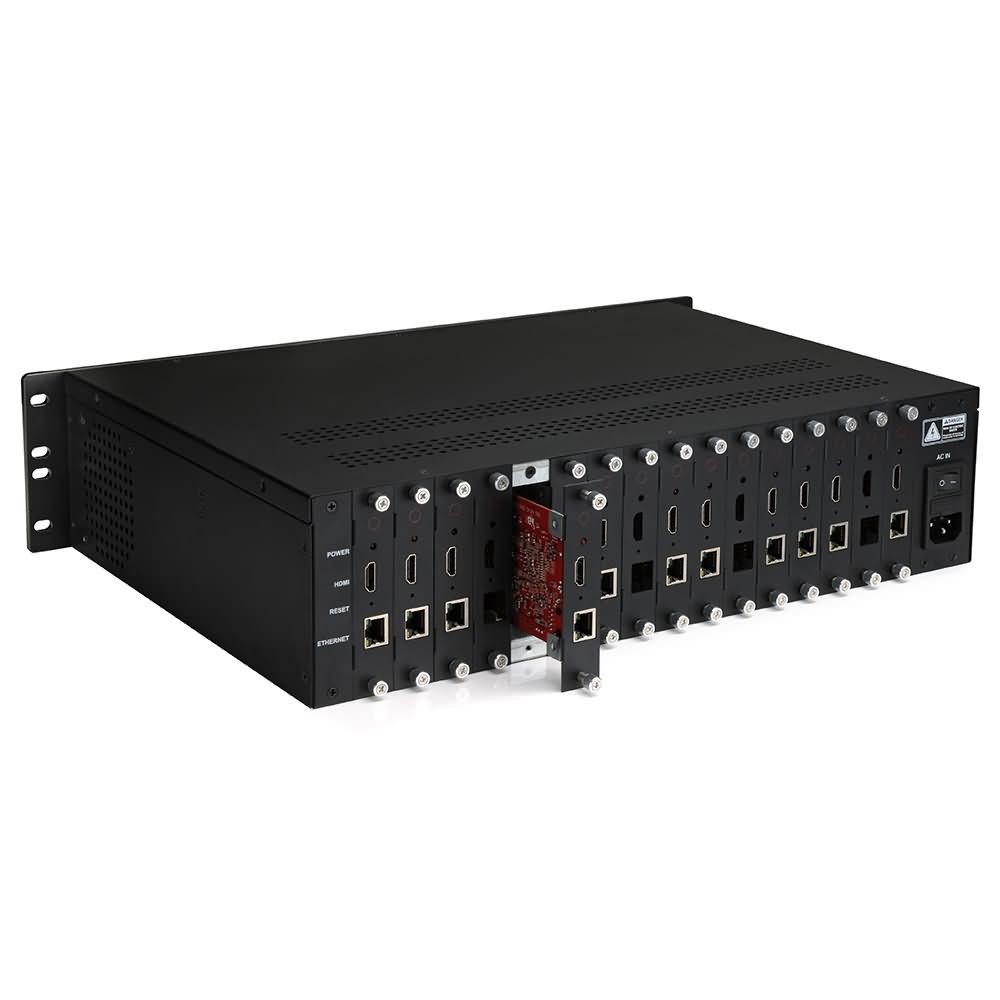

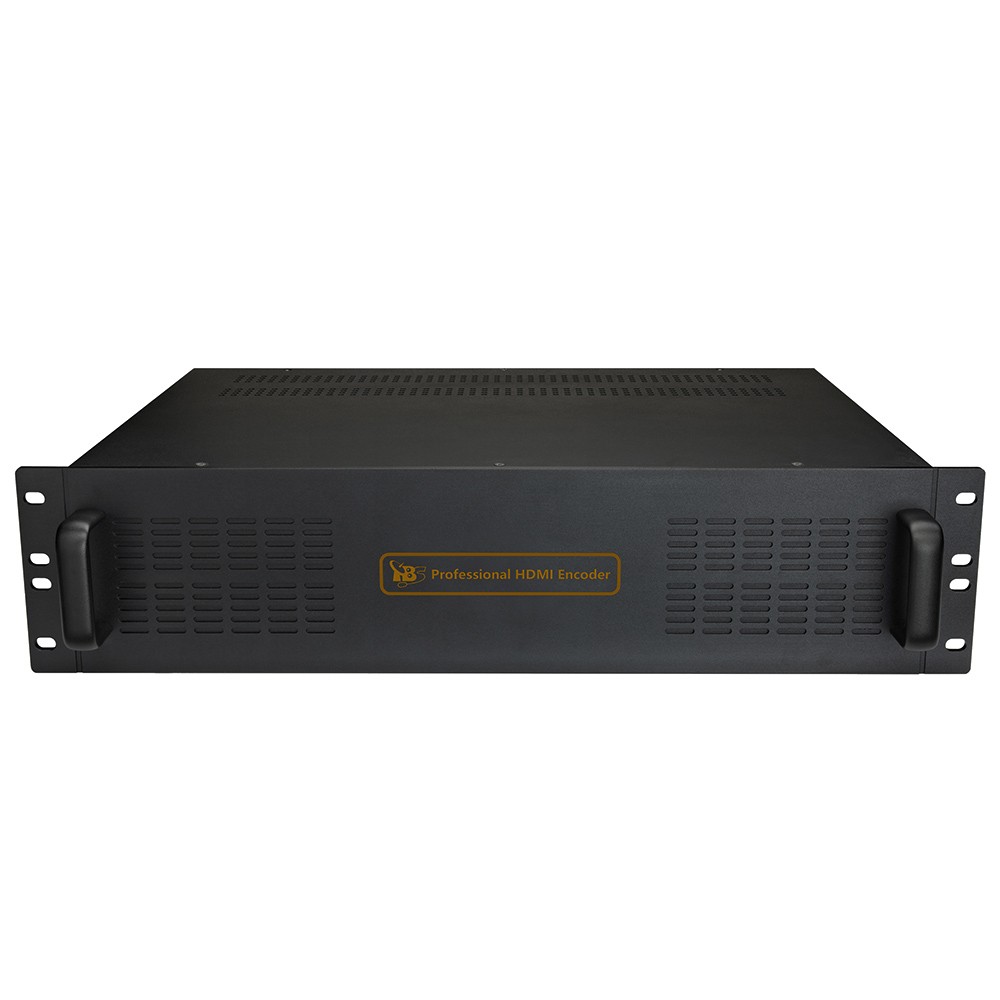

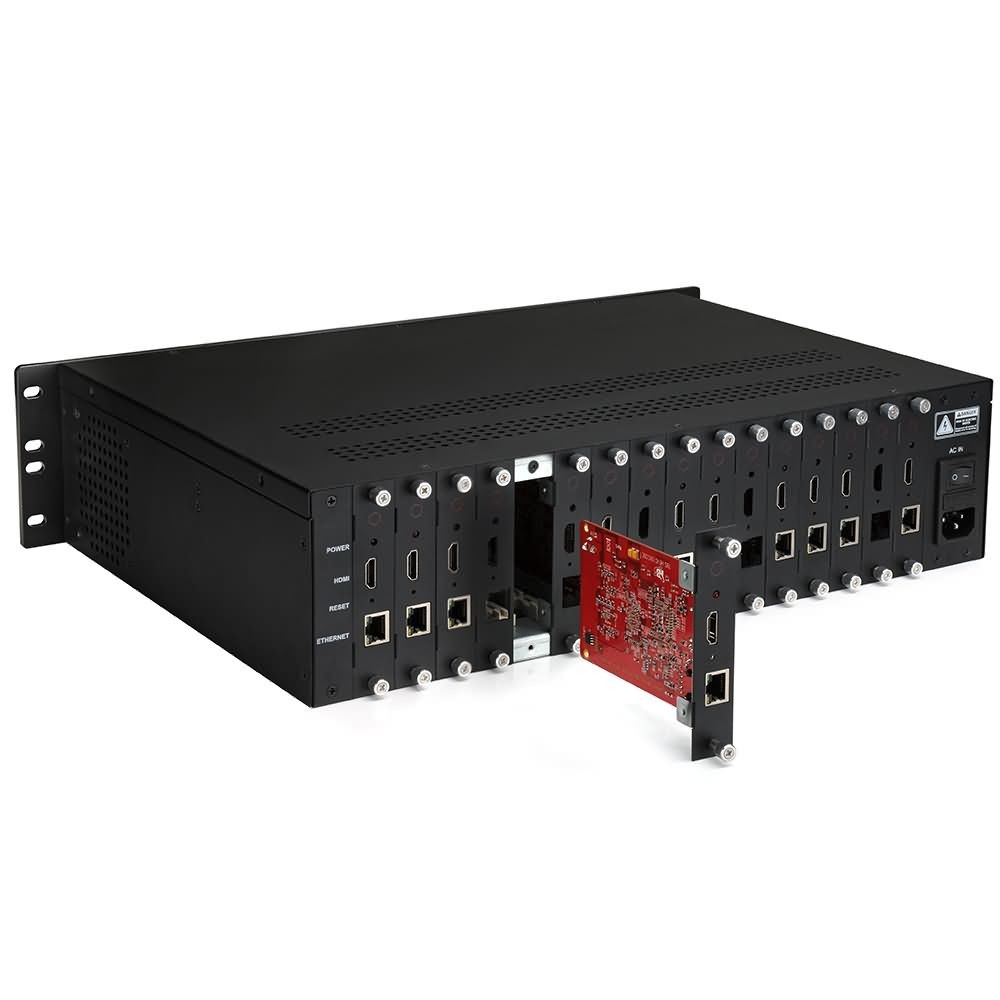

TBS2630 is a professional Multi channel HD H.264/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality, supports 8/16 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols.
The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.


View More

Features:

Support multiple equipments display at the same time on a computer
Support direct network connection without HD capture card
Main stream and secondary stream can use different network protocols for transmission
Low Power consumption, less than 6W
compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF


Application:

IPTV
Digital Signage
Video Conference
Replace HD Video Capture Card
Hotel TV system
Live Broadcast;
Teaching/Campus Broadcast
Recording System

Specification:

Input
Video Input 8/16 x HDMI 1.3a
Audio input HDMI embedded audio

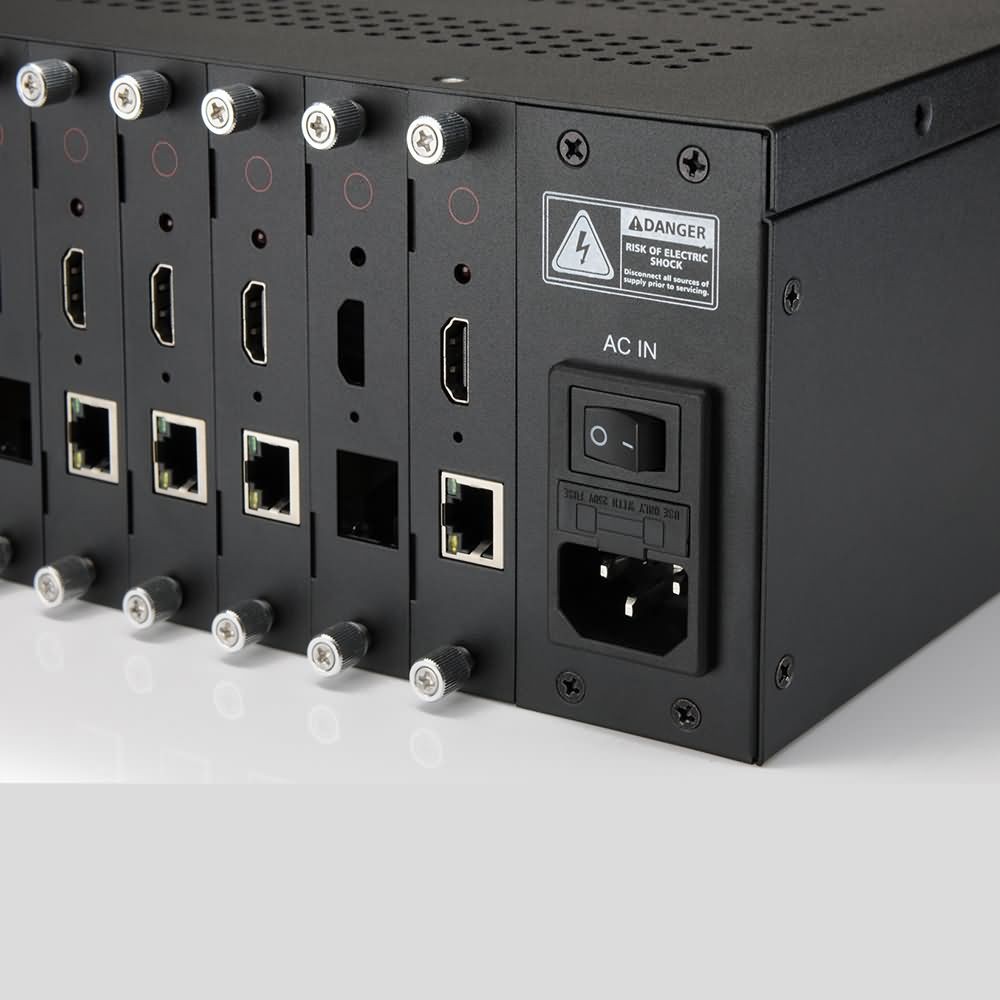

AC IN 110V~240V
AC rate 60/50Hz
Output
DC output 12V/12.5A
Power Dissipation 96W
Vedio
HDMI Resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc
Encoding BASELINE PROFILE (for H.264 and H.265)
MAIN PROFILE (for H.264 only)
HIGH PROFILE (for H.264 only)
Data Rate 0.8Mbps~12Mbps;
Rate Control CBR/VBR, 16KBIT/S~12MBIT/S
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio
Encoding AAC, MP3
Sampling rate Auto
Bit-rate 32K/48K/64K/96K/128K/160K/192K
Sampling precision 16 bit
Data Rate 64Kb/s ~ 384Kb/s
System

WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
Ethernet/RJ45 1000 Base-T Ethernet interface
Others
Dimension 482mm*320.2mm*108mm
Net weight 7.5kg
temperature -20℃+ 60℃

Package contents:

1x TBS2630
1x Power line
1x HDMI cable


Product Reviews:

Average rating: 2 (based on 1 reviews)

Recent Reviews

  • By shadrack senyonga
  • Jan 22, 2017

whats the digital out put format of this 8-16 channel modulator is it ASI,RF or Data

Reply
Dear Sir,

TBS2630 is IP OUT :)

Best Regards!
