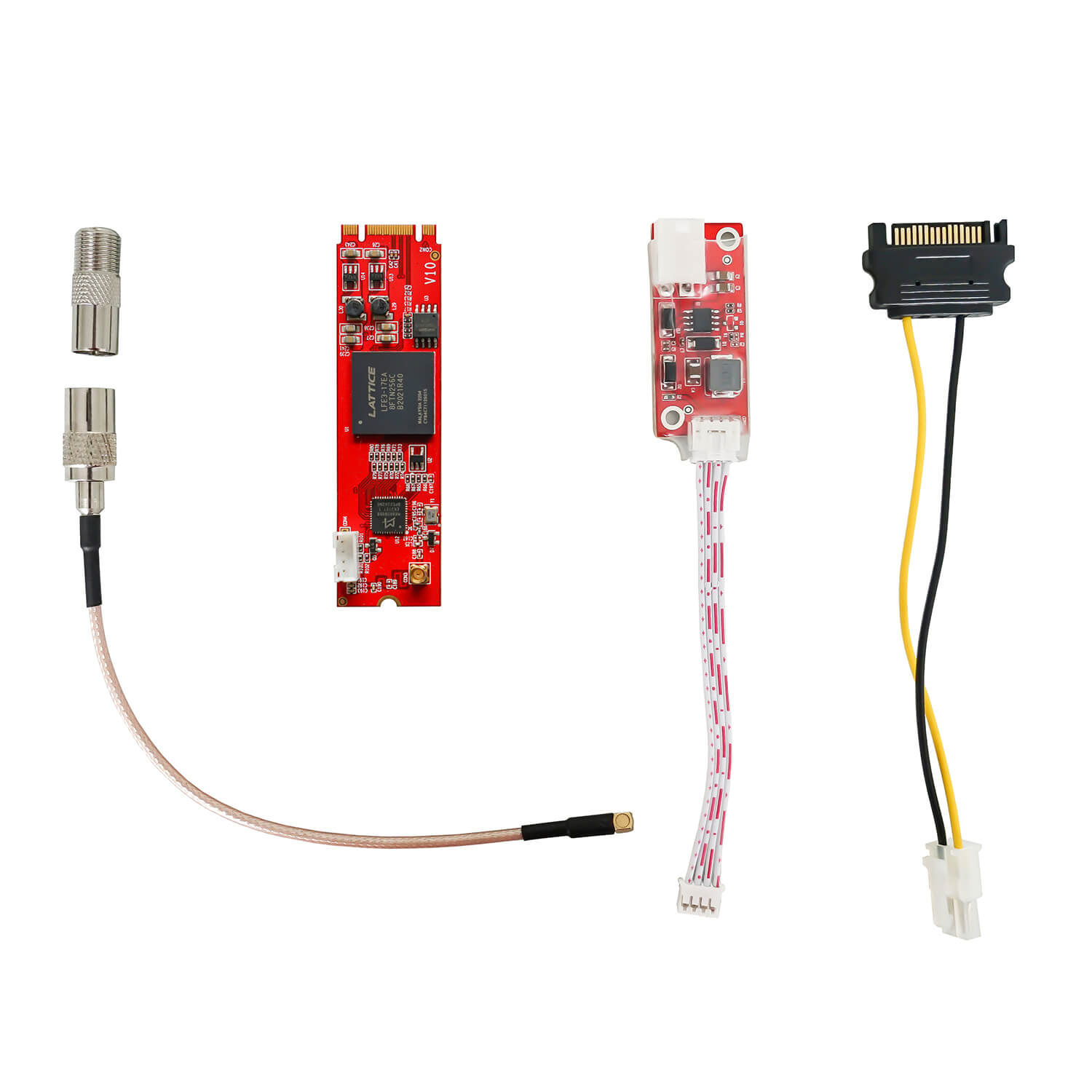

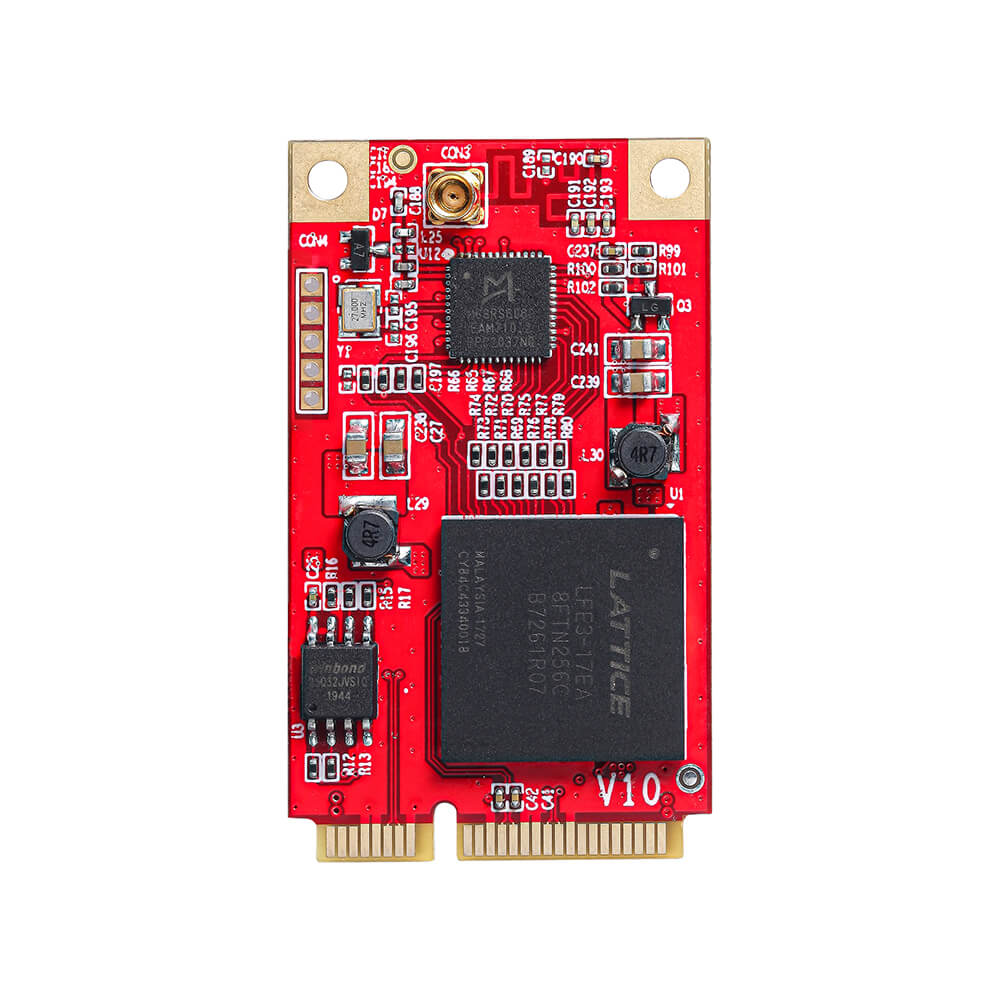

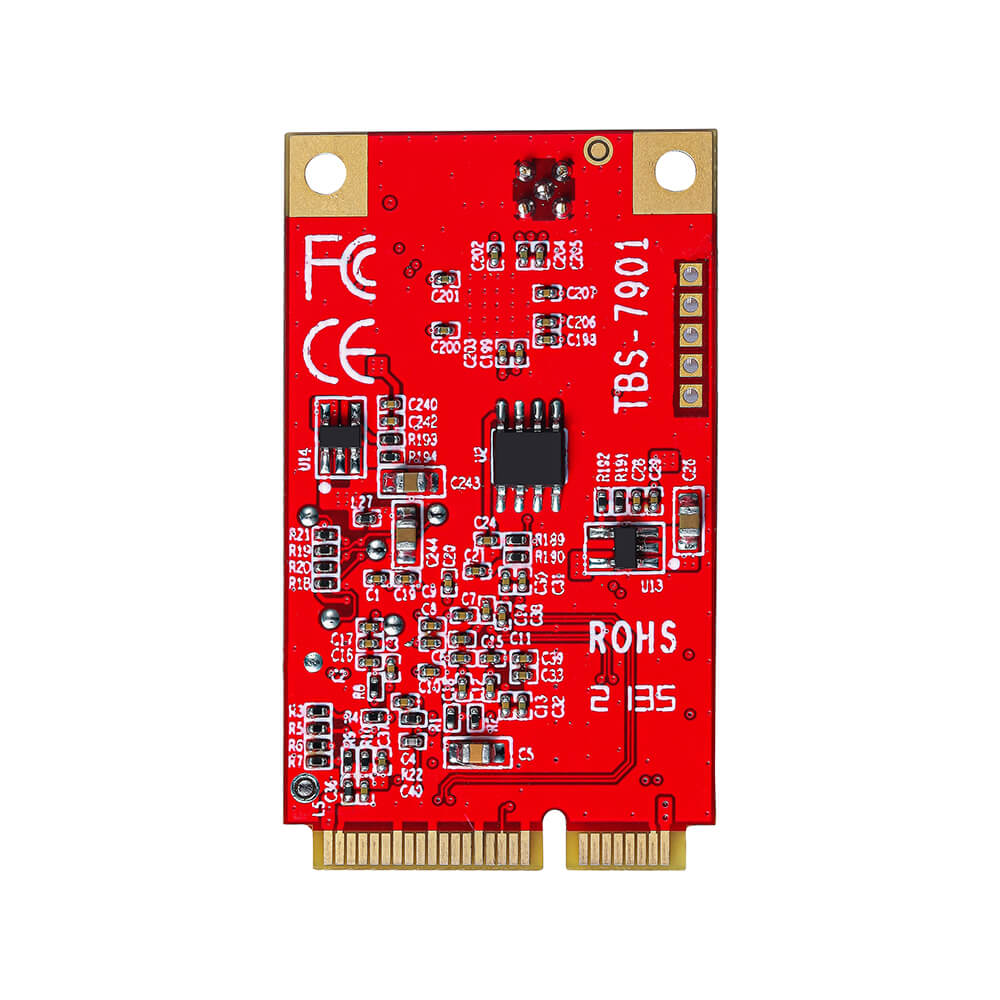

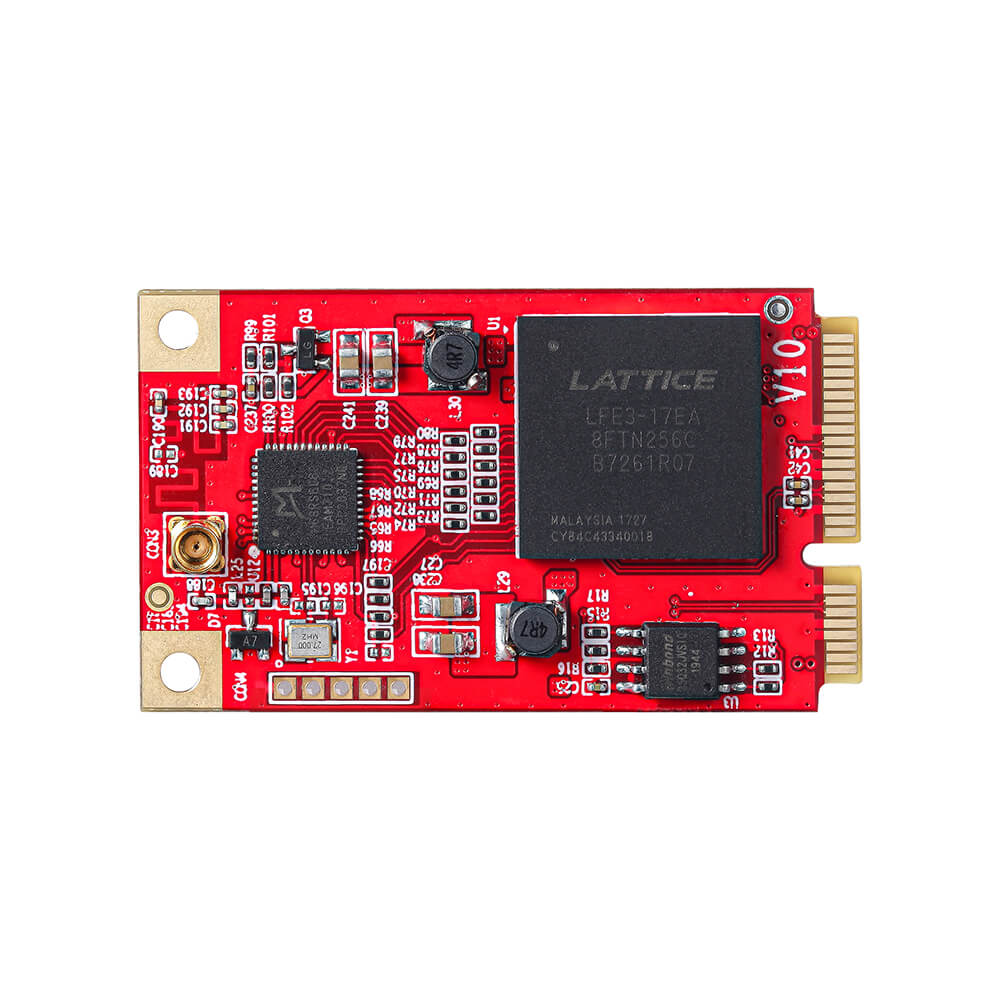

TBS7901 DVB-S2X/S2/S mini PCI-e card

Model#: TBS7901
Price:
US$
119.00
Weight: 100 g(s)
Ship From: China
You will earn 119 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

TBS7901 DVB-S2X/S2/S mini-PCI-e card is a digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. It supports not only advanced DVB-S2X/S2/S, but also VCM and multi stream, which is considered as a professional TV tuner for industrial-level users.

Main Features
  • Support DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports VCM and multi stream
  • High-speed data download via satellite
  • Watch & record satellite TV / radio programs on PC

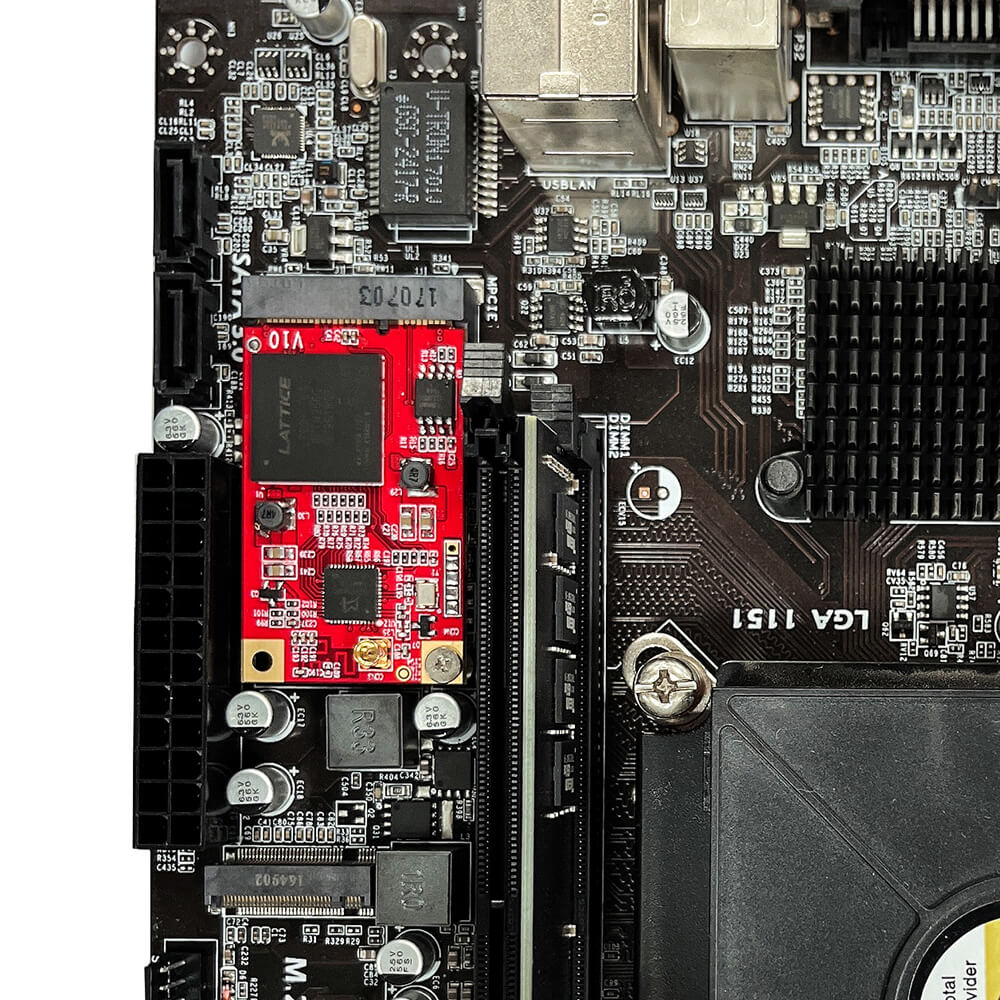

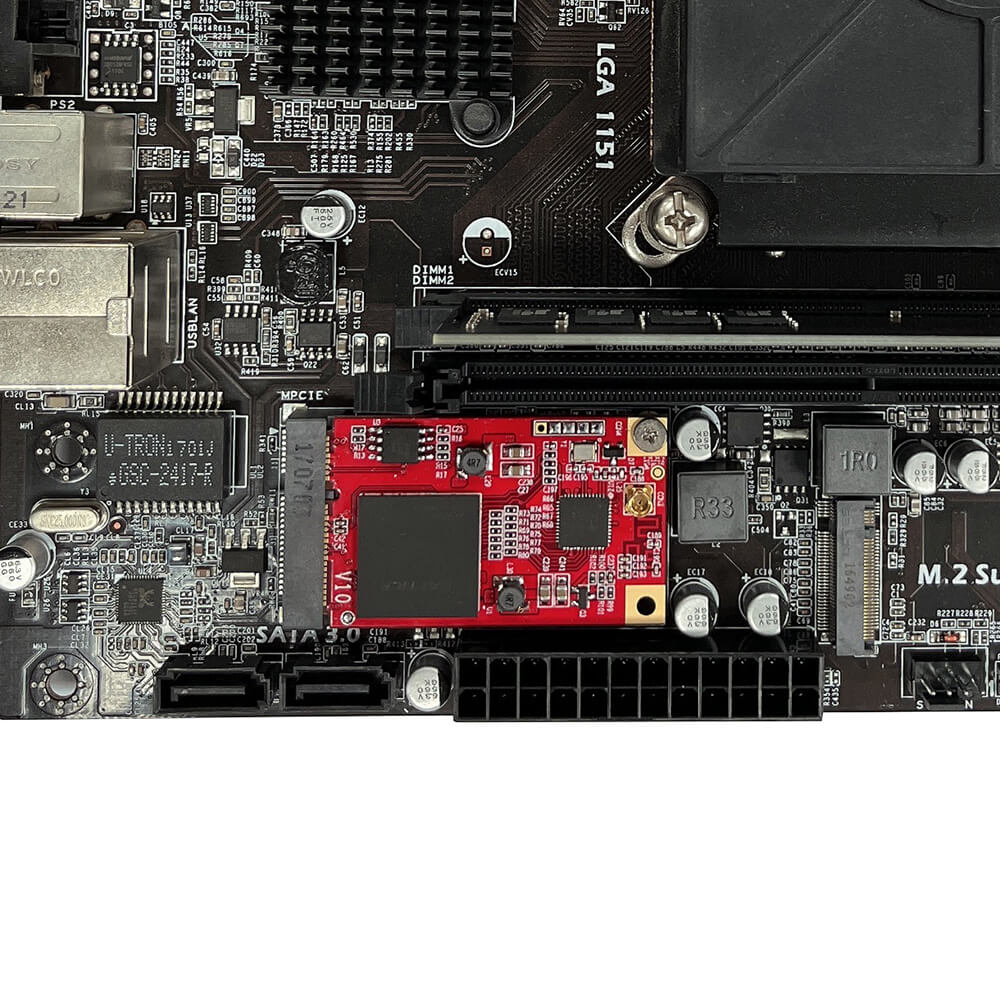

PCI-E Slot
Applications
  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution

Specifications

Model DVB-S2X/S2 mini card
Connection Mini PCI-express slot
1x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
∧
