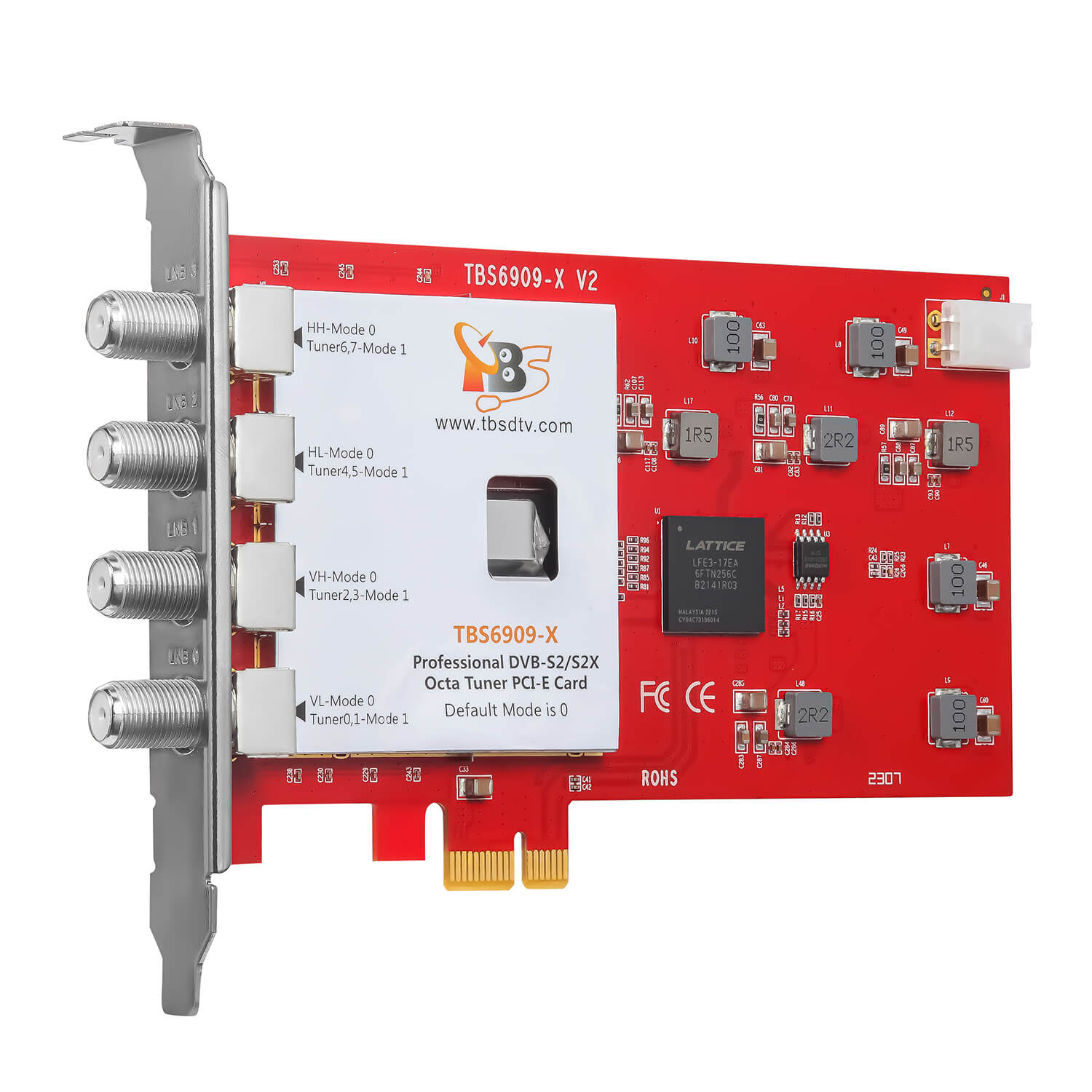

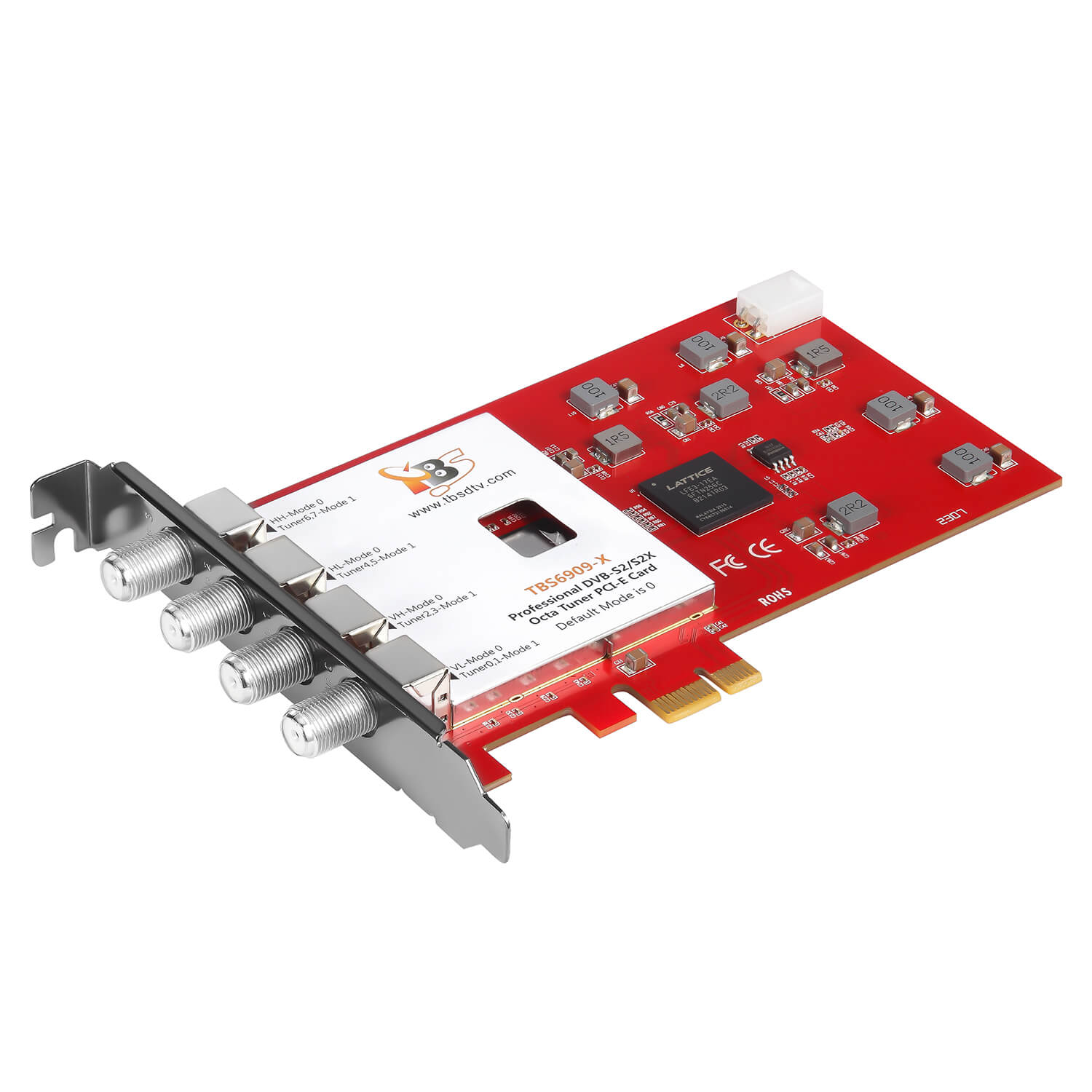

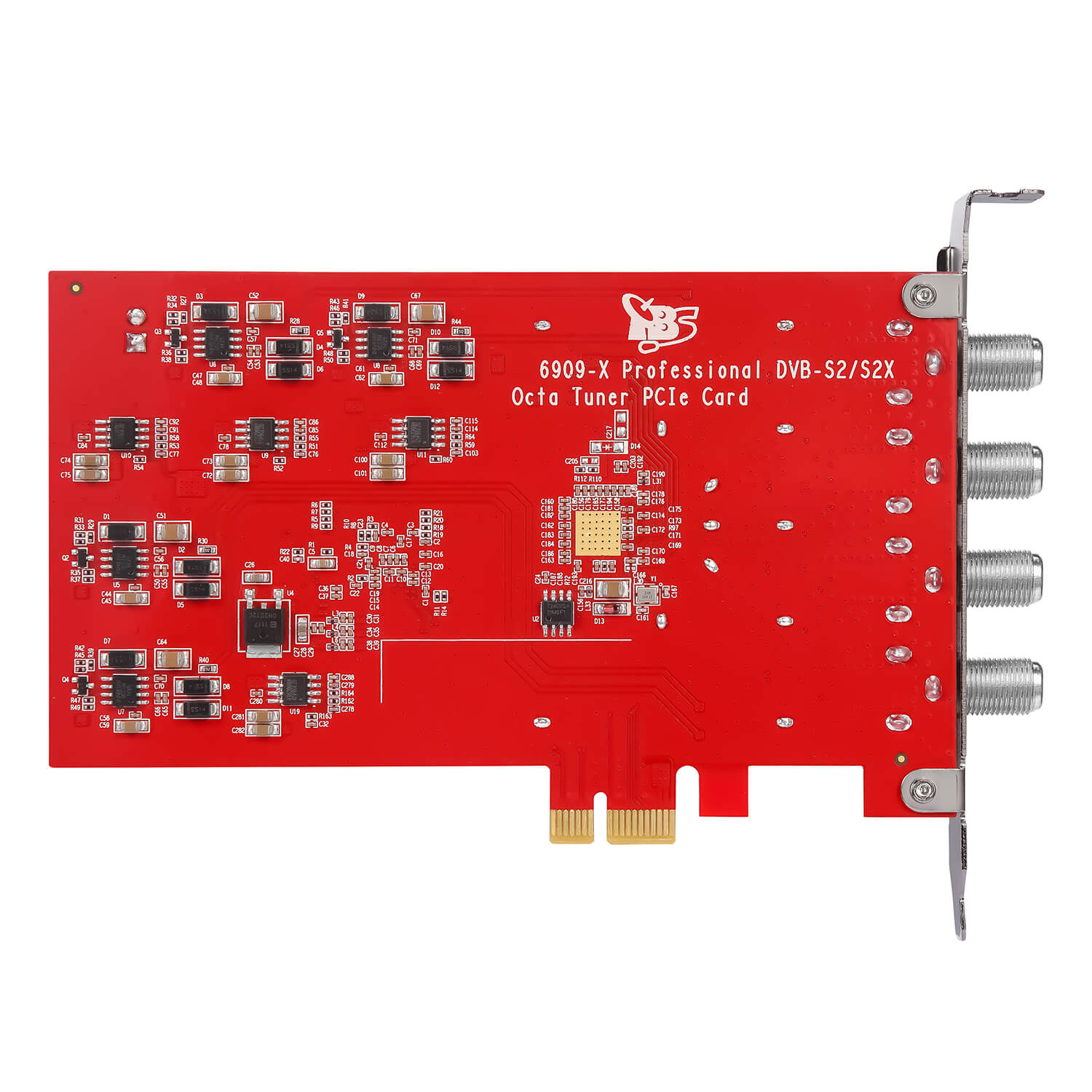

TBS6909-X V2 DVB-S2X/S2/S Octa Tuner PCIe Card Compatible with Tvheadend


Model#: TBS6909-X V2

List Price: US$329.00
Price:
299.00
9%
Save:US$30.00 ( 9% OFF )
Weight: 400 g(s)
Ship From: China
You will earn 299 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

TBS6909-X V2 is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it not only supports to receive SD/HD digital TV channels from 8 different satellite transponders simultaneously, but also supports CCM, ACM, VCM and Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X V2 enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for broadcasting system.

Main Features:

  • Support Octa DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports CCM, ACM, VCM and Multi Input Stream
  • Support wide band

Applications:

  • Data receiving
  • Media monitoring
  • Digital content distribution

TBS6909-X DVB-S2X Octa Tuner Card PCIe

DVB-S2X/S2; Octa tuner; Linux OS; PCI Express;

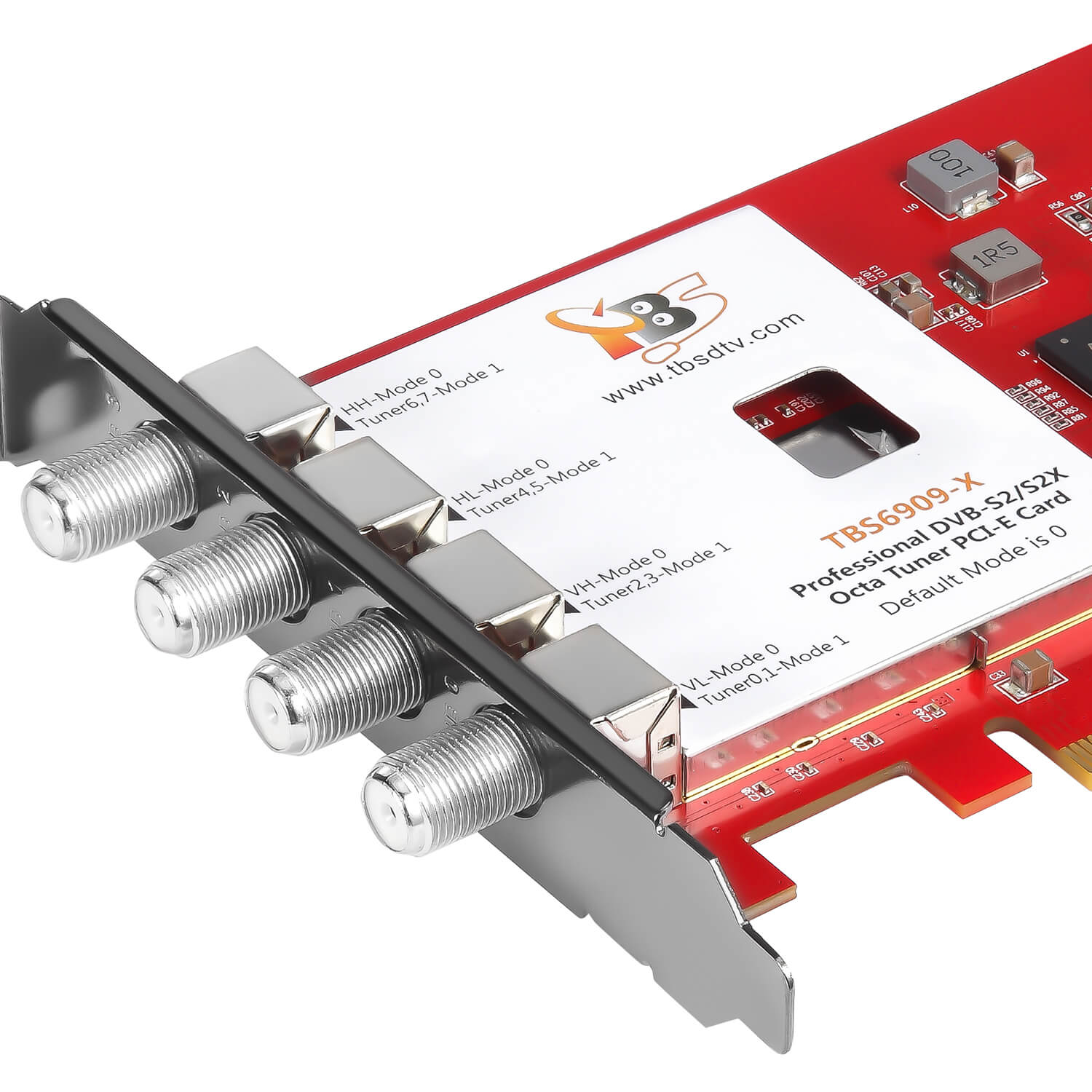

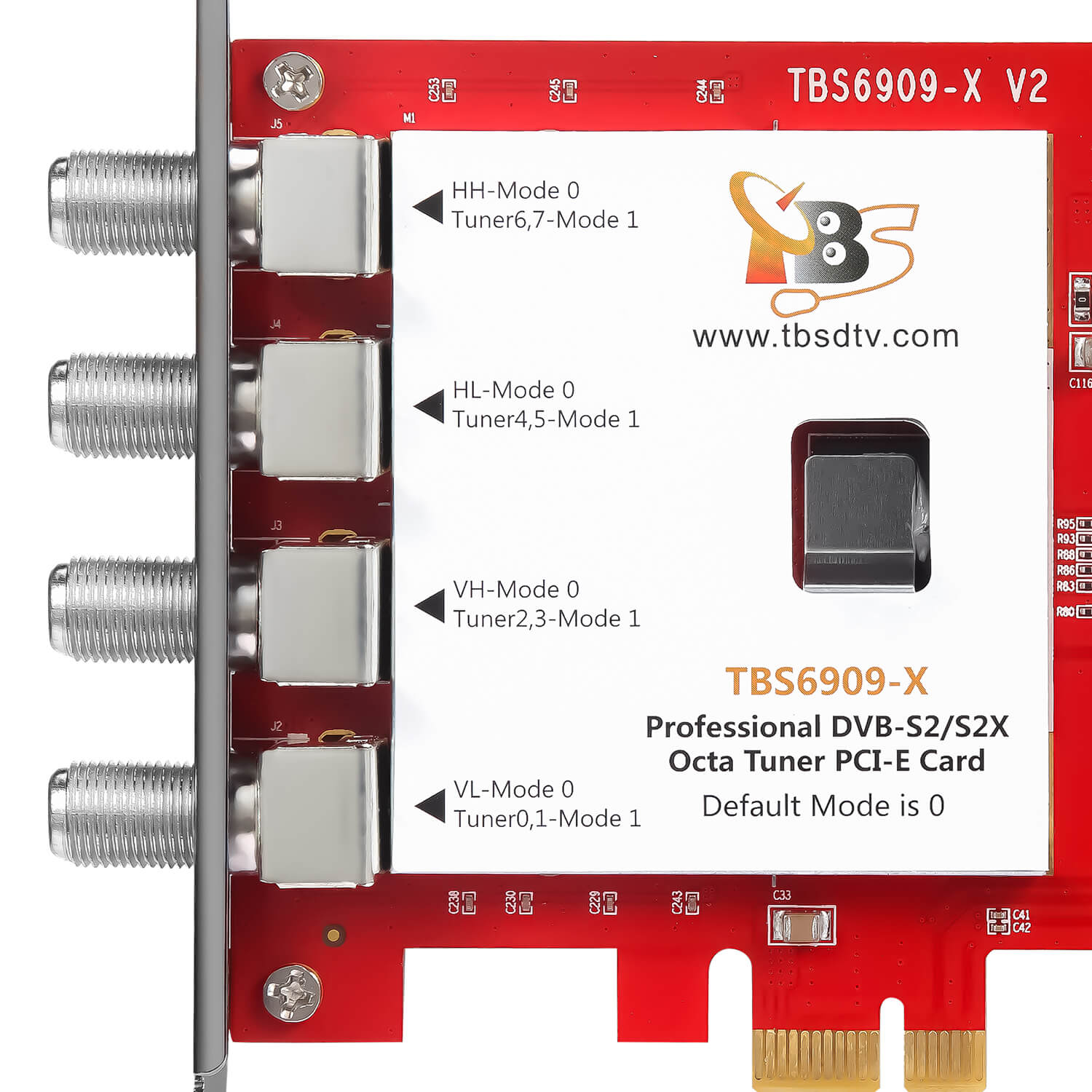

TBS6909-X Three Signal Input Way

Mode 0

Default mode is multiswitch mode. The signal input can be like this:

Master output
Quattro-LNB/Multiswitch

If you are using quattro LNB, you have 4 cables (V/L,V/H,H/L,H/H), connect the right one to TBS6909-X like the above picture ( input 0- input 3 should be connected to V/L,V/H,H/L,H/H respectively).

Quad-LNB

If you are using quad LNB, you can directly connect the 4 cables to the 4 ports of TBS6909-X.

Single C or Ku Band

If you are using single C or Ku band, then two inputs are enough, you just need to connect the cables to input 0 and input 2 to provide V and H signal.
In some case multiswitch have more than one satellite input, need to choose the satellite first.
Mode 1

LNB

If you want to use DiSEqC with TBS6909-X, you could use this mode.
Mode 2

Unicable LNB

When using with unicable you can connect the signal cable like this.

Specification

Model TBS6909-X V2
Connection PCI-express
4x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
FECFRAME (normal) 64800 (bits)
DVB-S2X (Normal) QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
13/45
9/20,11/20
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
23/36,25/36,13/18
8PSK-L 5/9,26/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (S2-MODCODs)
26/45,3/5,28/45, 23/36, 25/36,13/18,7/9,77/90
16APSK-L 5/9,8/15,1/2,3/5,2/3
32APSK 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs) 32/45 ,11/15,7/9
32APSK-L 2/3
64APSK 11/15, 7/9,4/5, 5/6.
64APSK_L 32/45
FECFRAME (short) 16200(bits)
DVB-S2X (short) QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3,3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45,7/15, 8/15, 32/45
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK 2/3, 32/45
VCM Yes
ACM Yes

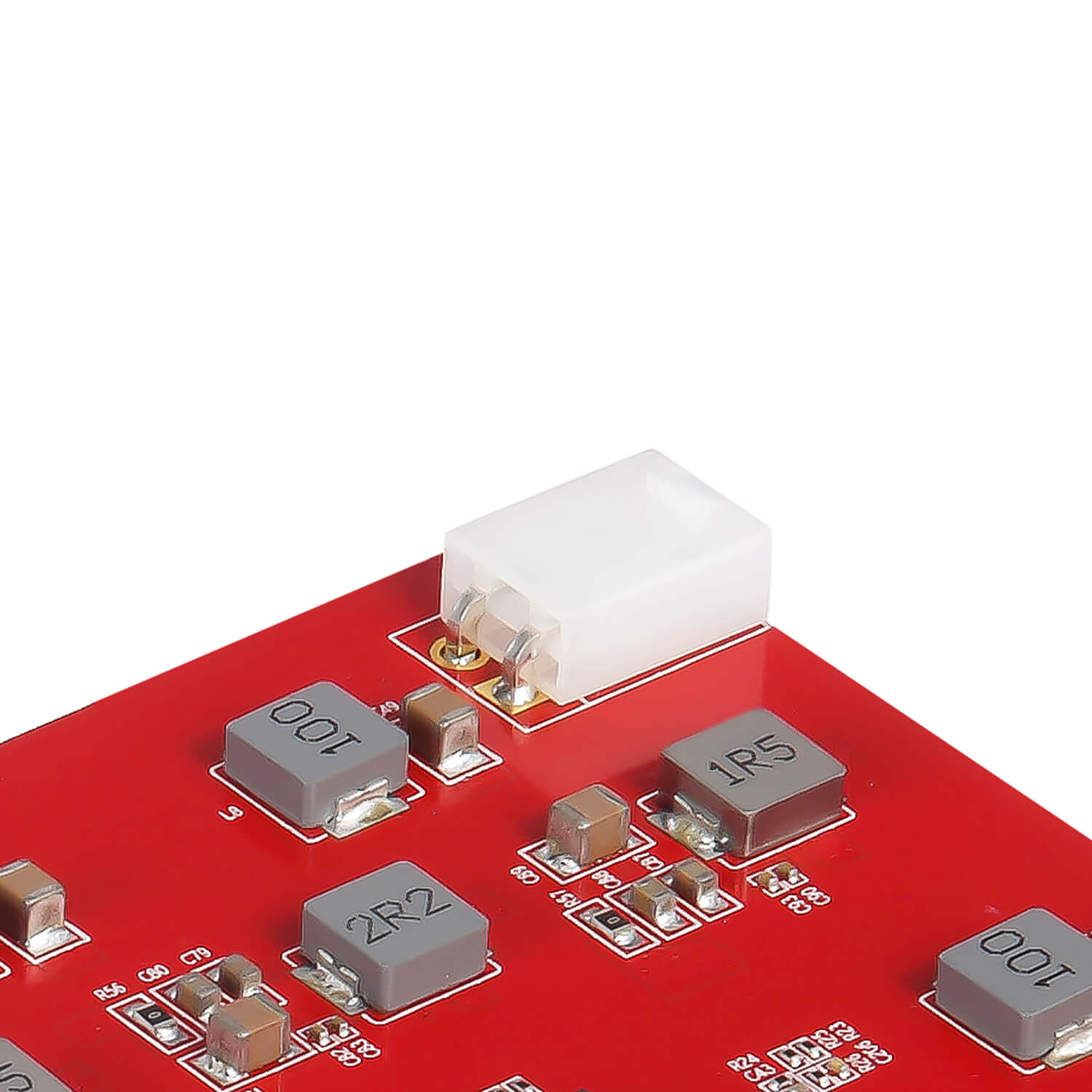

Power consumption
Input/ Power: 12V/7 ~ 20W
temperature 0° ~ 78°
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size 145 * 92 * 1.6mm
Gift Box Size 200 * 130 * 30mm
Weight 400g

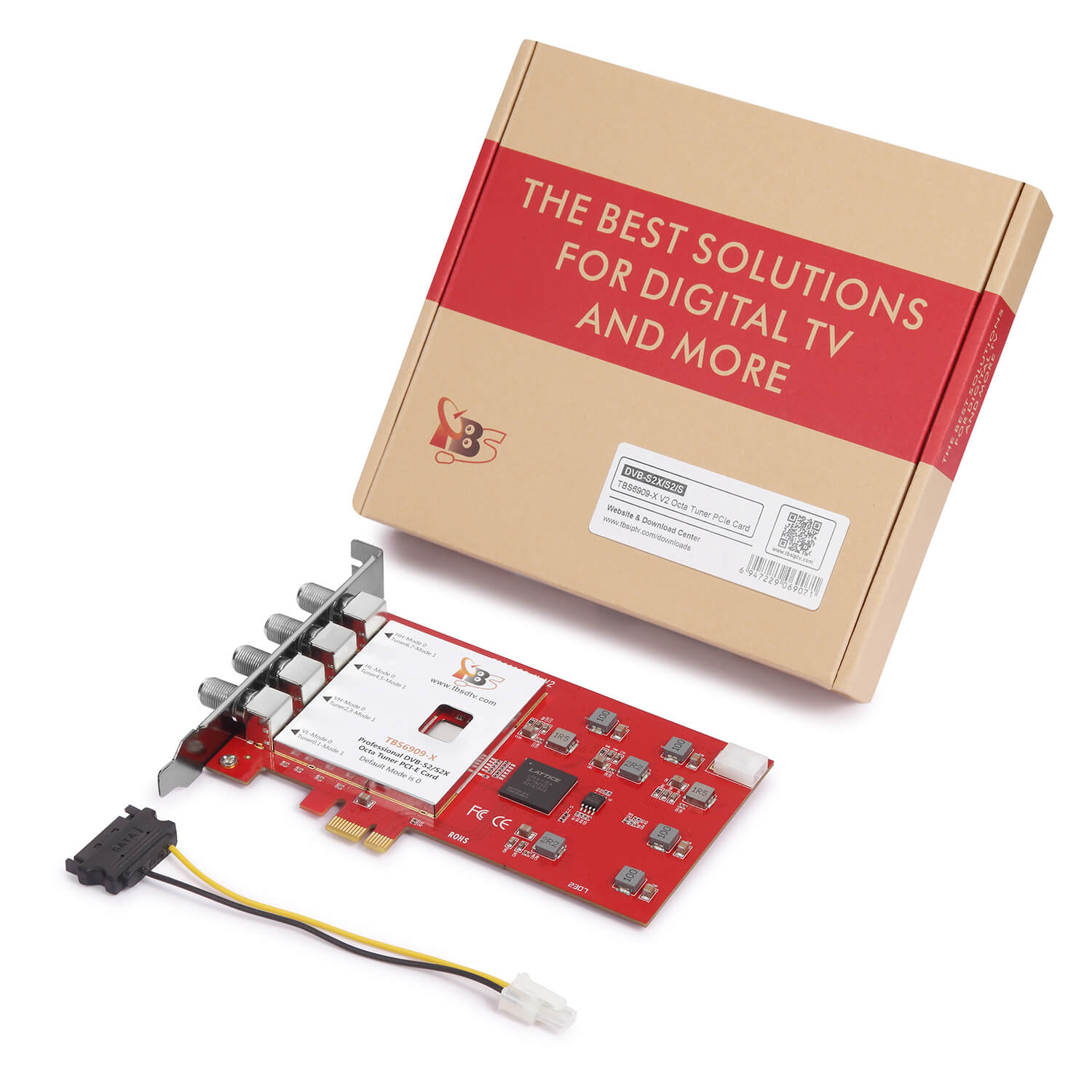

Package Contents 1 * TBS6909-X
1 * Power cable

Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

Msymb/s Demod LDPC 4 simultaneous
demodulators
6 simultaneous
demodulators
8 simultaneous
demodulators
QPSK 64 720 64 60 45
8PSK 64 720 60 45 30
16APSK 64 720 45 30 22.5
32APSK 51 720 36 24 18
64APSK 43 720 30 20 15
