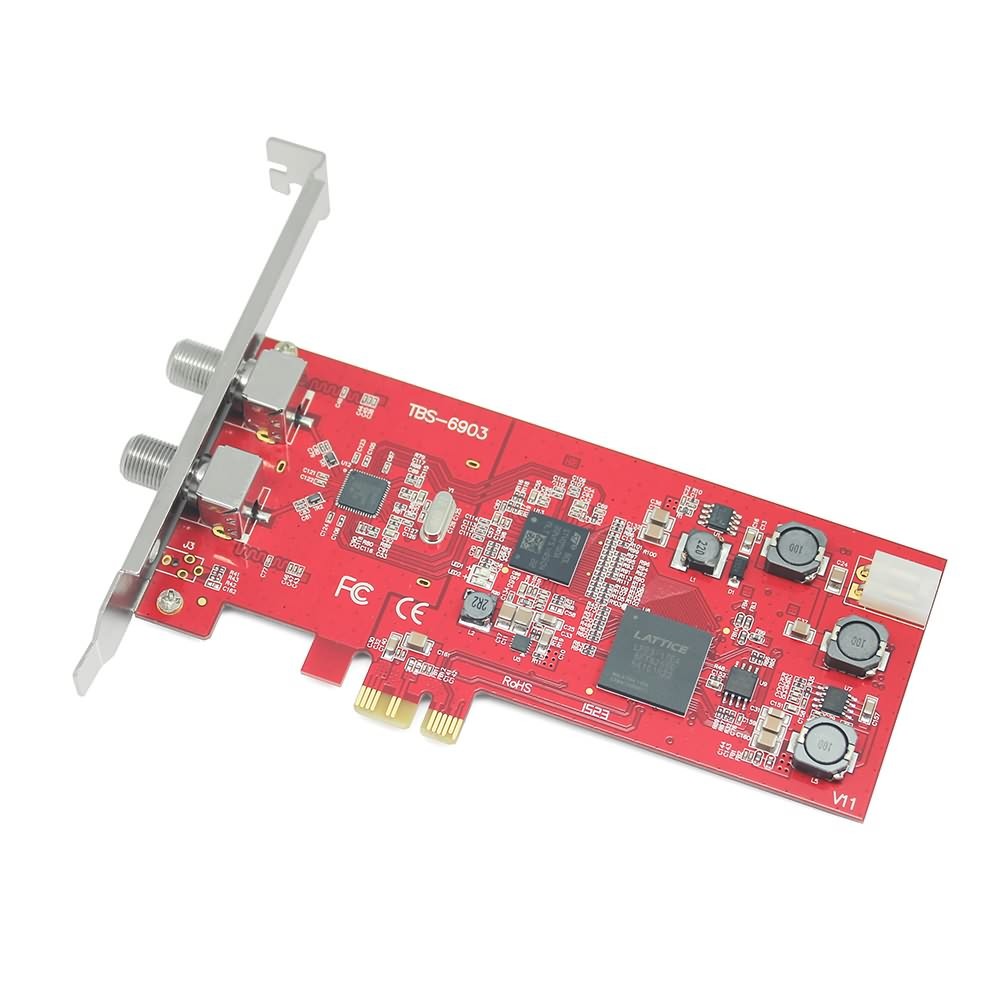

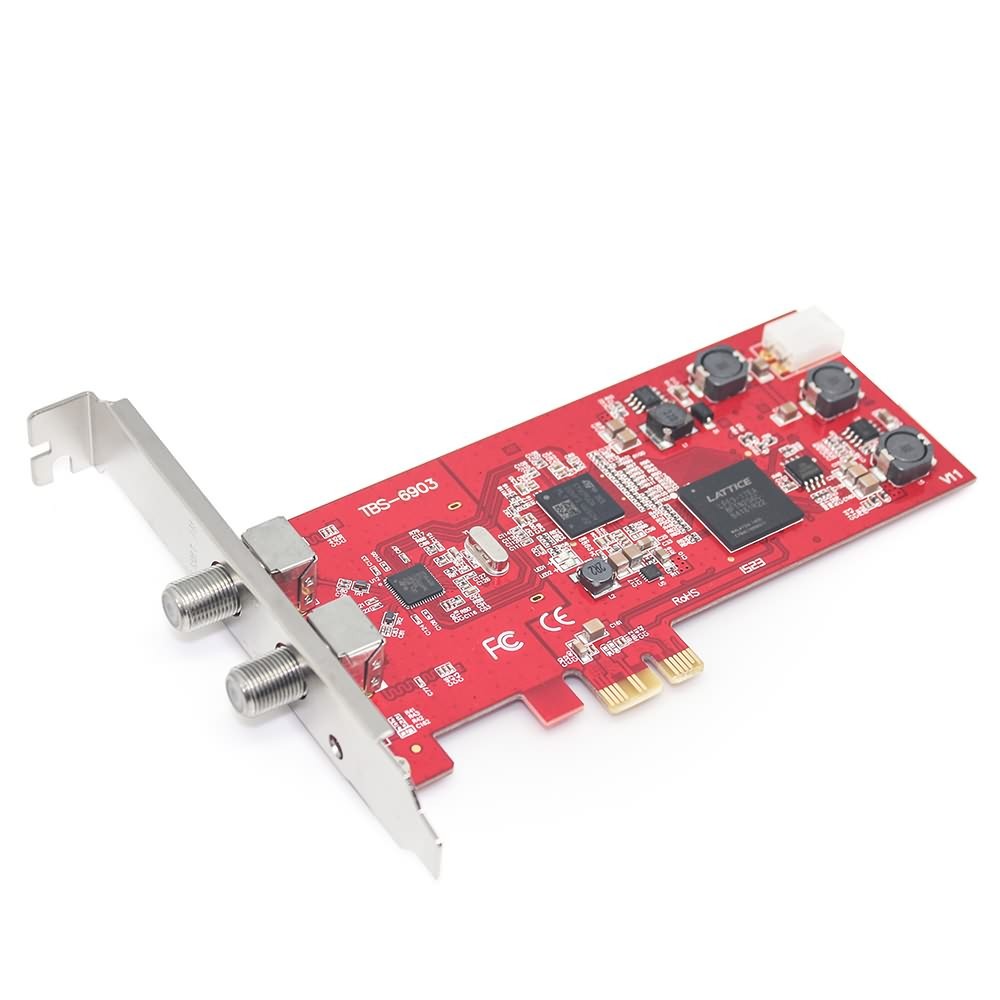

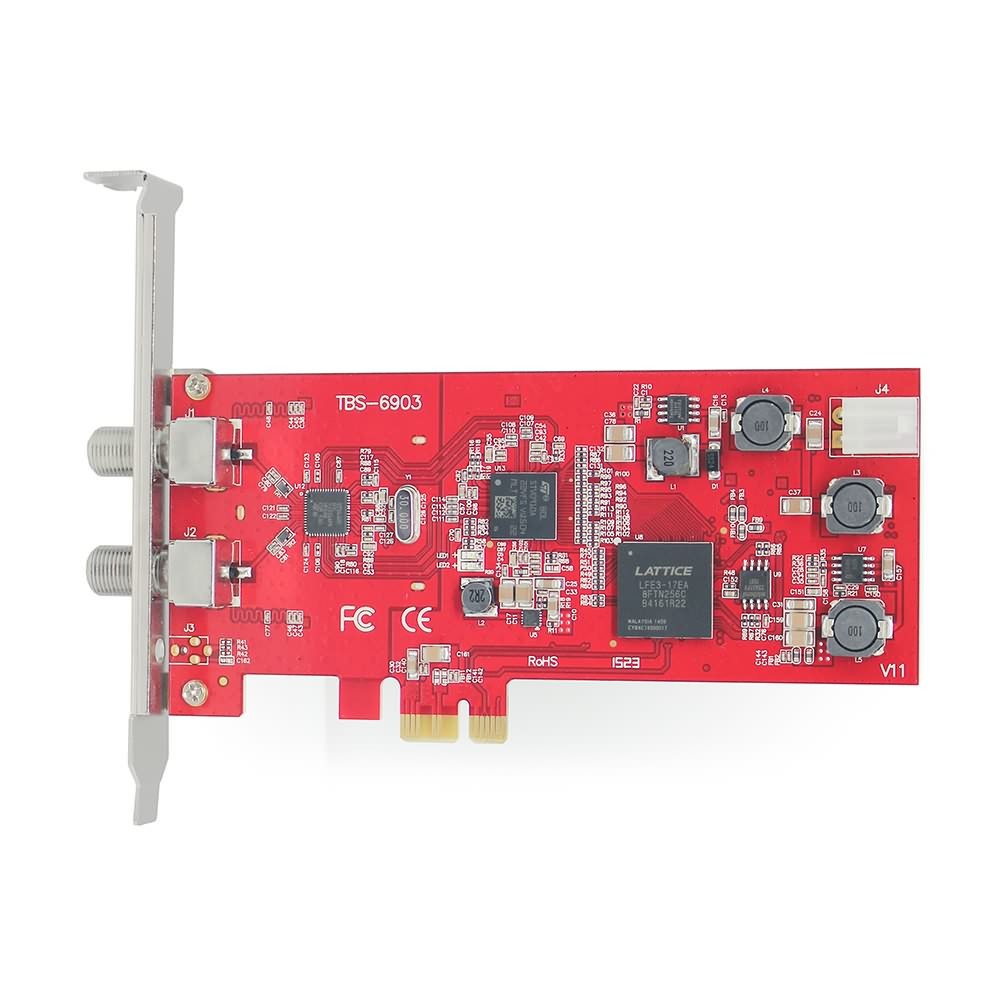

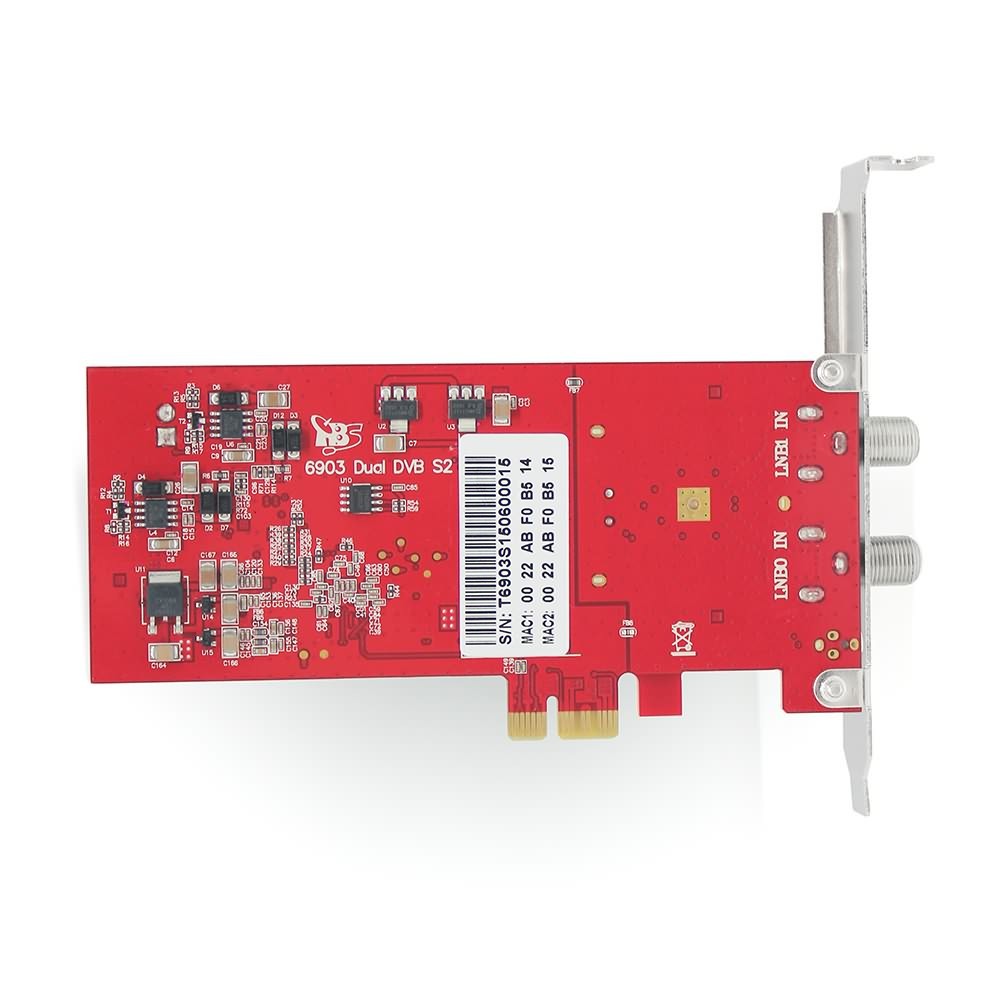

TBS6903 Professional DVB-S2 Dual Tuner PCIe Card,compatible with EUMETCast


Model#: TBS6903

List Price: 299.99
Price:
255.00
15%
Save:US$44.99 ( 15% OFF )
Weight: 350 g(s)
Ship From: China
You will earn 255 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

TBS6903, compatible with EUMETCast, is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS6903 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.

Main Features:

EUMETCast Compatibility
DVB-S2/S dual tuner
Watch & record satellite TV/ radio programs on PC
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite

Applications:

Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:
Frequency range: 950~2150 MHz
Dual channels DVB-S2/S 8PSK QPSK 16APSK 32APSK ACM/VCM
Demodulator
Symbol rate:
Maximum symbol DVB-S2 rate limitations (Msymb/s)

Msymb/s Demod LDPC Single Dual
QPSK 67.5 135 67.5 67.5
8PSK 67.5 90 67.5 45
16APSK 67.5 67.5 67.5 33.7
32APSK 67.5 54 54 27

DVB-S QPSK +1/2,2/3,3/4,5/6,7/8
Support Data Burst & Tone Burst
Support DiSEqC2.X and Motor

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB

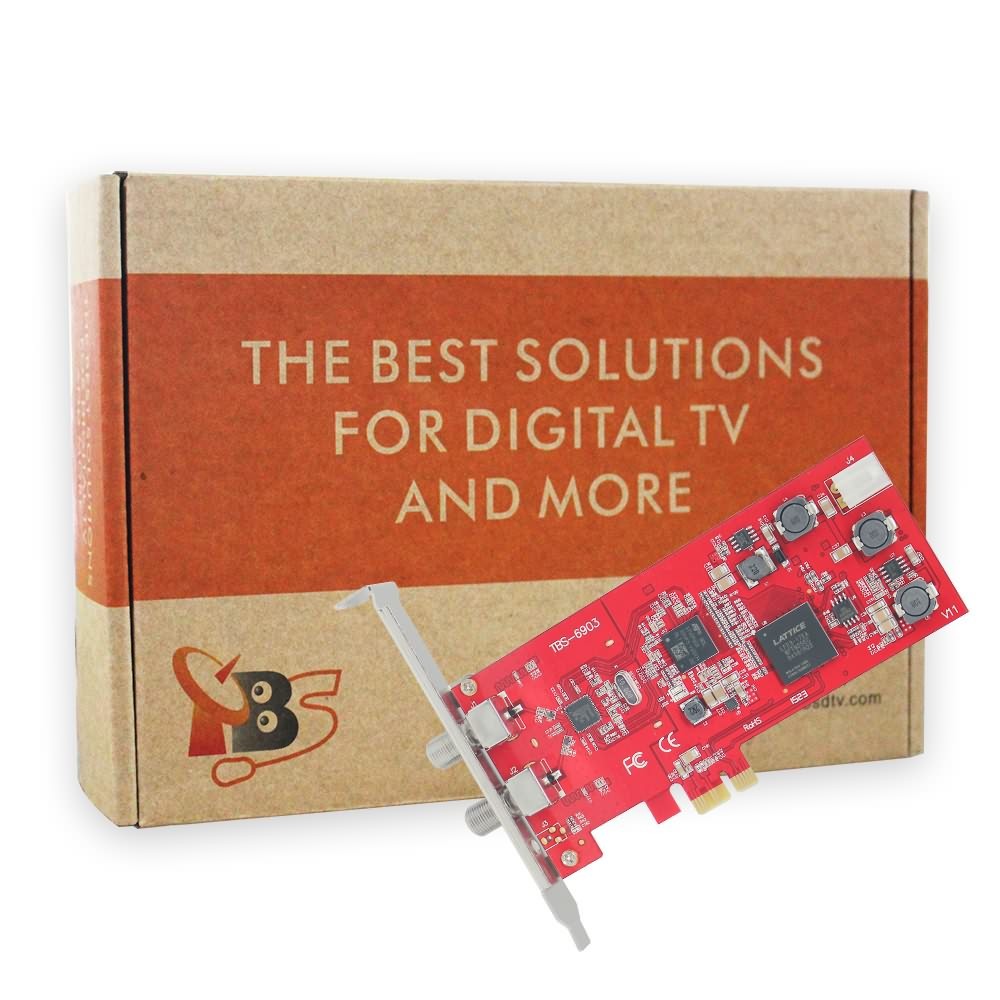

Package Contents:
1 x TBS6903
1 x Low profile bracket
1 x DC line
