TBS6304-T 4k@60fps 4-HDMI input Encoding PCIe Card


Model#: TBS6304T

Price:
1,499.00
Weight: 500 g(s)
Ship From: China
You will earn 1499 Points for buying this product. How to Use ?
Qty:
-
+
Unit(s)

If you need more, please Contact us directly.

Description:

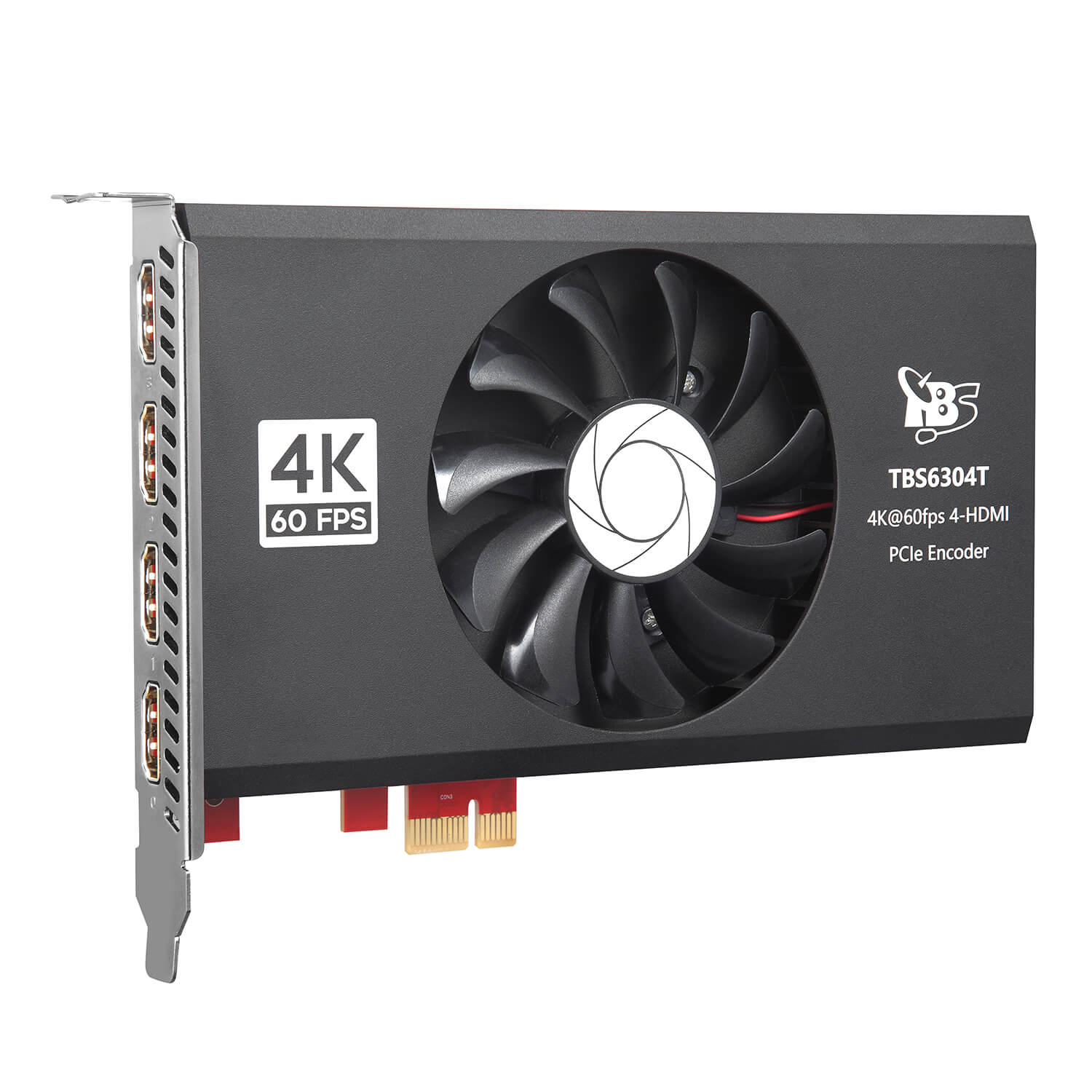

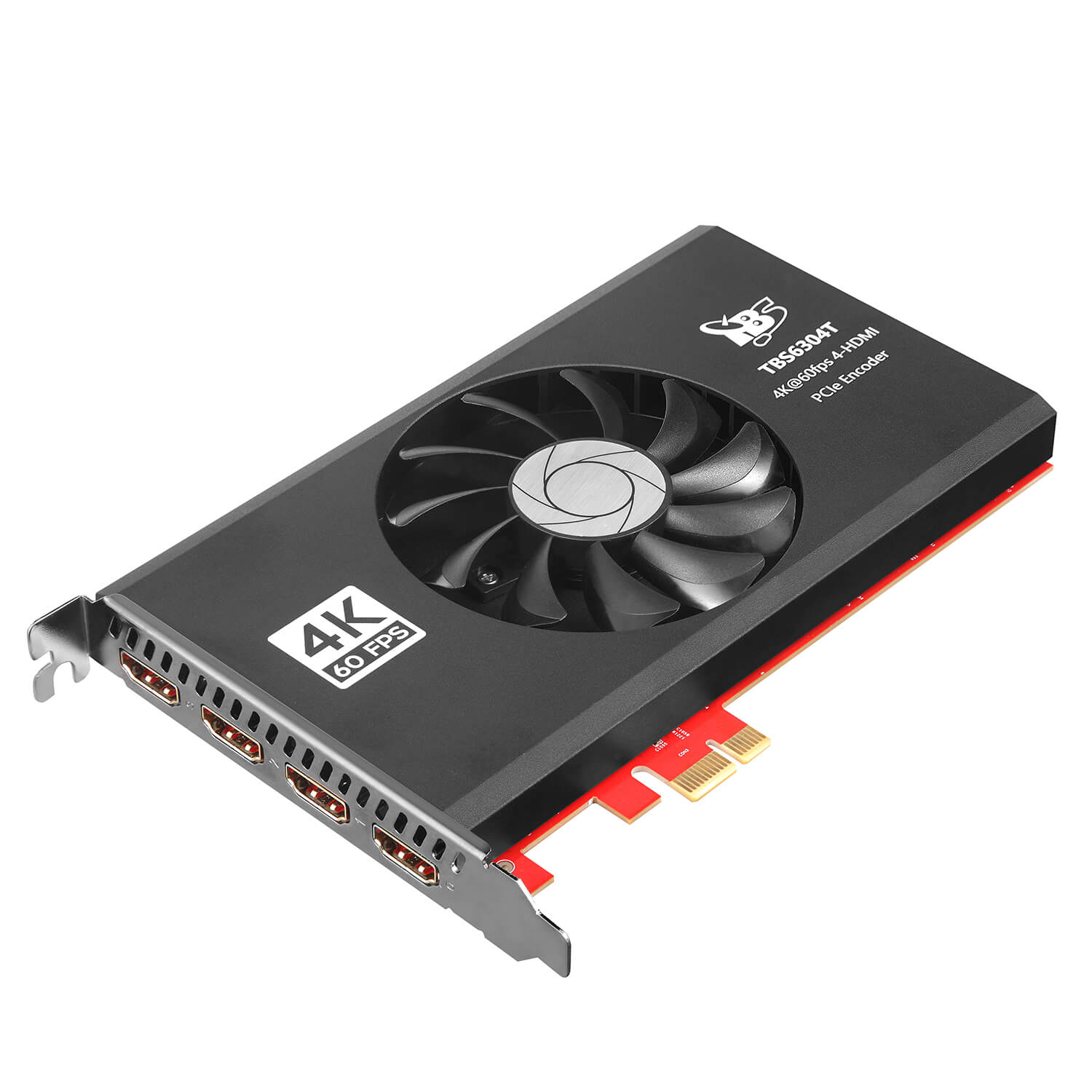

TBS6304T is a HDMI 4K UHD Video Encoding Card, with 4 HDMI 2.0 input. Each of the HDMI port supports max 3840 x 2160P@60hz input and H.265 & H.264 encoding. It is an ideal device for whom needs to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

A special encoding pattern:

After capturing UHD/HD video from 4 HDMI ports, TBS6304T will generate four H.264/H.265-encoded streams by TS packet and output via PCIe Interface. In short, TBS6304T can be used as a normal DVB Tuner PCIe card, so it can work with many DVB streaming software, like "DVBlast", "TVheadend" in Linux or "DVBDream" in Windows.

TBS6304T is equipped with 4 HDMI2.0 inputs. The PCIe interface allows users to install TBS6304T into any full-profile PCIe slot, including fixed workstations such as 2U or 4U Rack-mounted servers or media centers.

Main Features

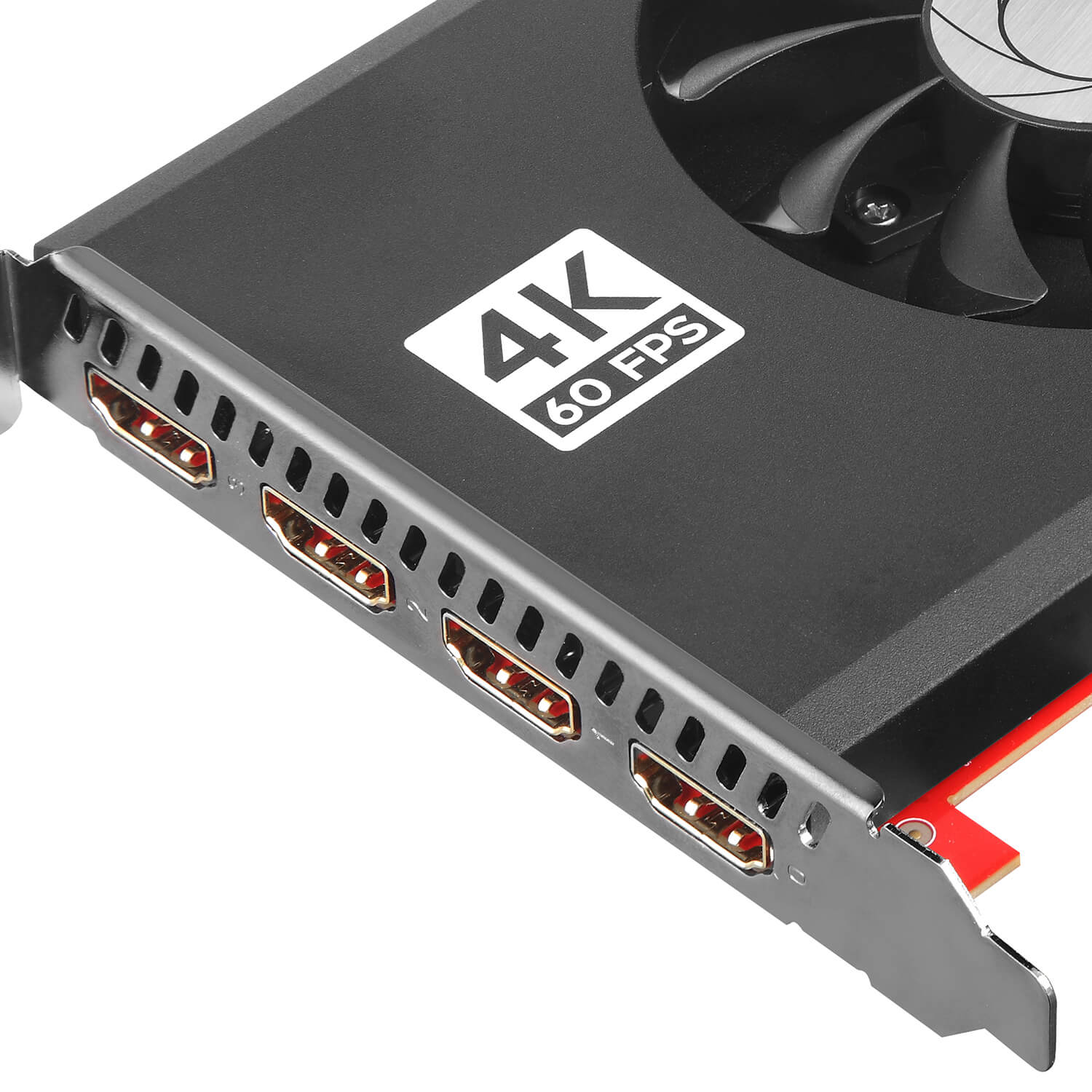

  • 4 x HDMI 2.0 Input, support 3840x2160_60hz Input Maximum
  • High efficient hardware encode, small CPU consumption
  • H.265/HEVC and H.264/AVC encode
  • Real 4K@60FPS encode
  • Compatible with DVB software. For example, DVBdream, DVBviewer, DVBlast, Tvheadend, Astra Cesbo and ect.
  • Widely used in the industries of Education, Health Care, Conference, IPTV, News Interview, and ect.

Specifications

Input Interface 4x HDMI 2.0, HDCP2.2 supported
Video Input 3840 x 2160p_60/50/30hz, 1920x1080p_60/50/30hz, 1280x720p_60/50hz, 720x576, 720x480, etc.
Sampling format YUV4:4:4:, YUV4:2:2; YUV4:2:0
Codec H.265 & H.264
Profile H.264, High; H.265 Main
Level H.264@Level 5.2; H.265@Level 5.1
Bit Rate Control CBR
Color depth 8bit
Audio Input HDMI Embedded audio, 44.1k/48k
Codec AAC(LC)
Bite Rate 1Mbps~70Mbps
GOP Structure IPPP,
Interface PCIe 1x
OS and Driver Windows: Windows XP / Vista / Windows 7 Windows 8 / Windows 8.1 / Windows 10. Linux: Centos 7.2/7.4. Ubuntu 14.04/16.04/18.04, or others Linux OS with kernel version 4.4.0 and above.
Application Compatible with DVB software: Windows platform: DVBream, DVBviewer, and etc. Linux platform: DVBlast, Tvheadend, Astra Cesbo and ect.
Working Environment
  • Operating temperature: 0 to 40 deg C.
  • Storage temperature: –20 to 70 deg C.
  • Relative Humidity: 5% to 90% non-condensing.
