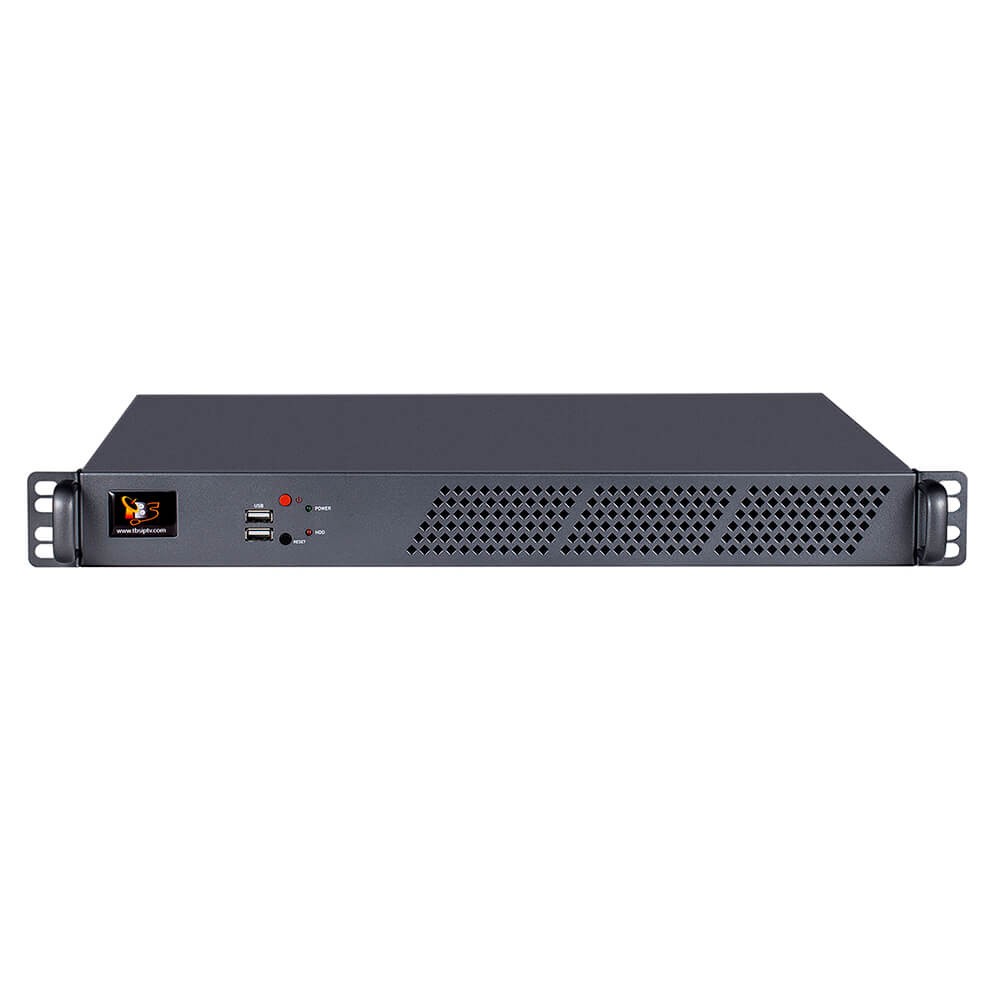

TBS8502 Small-Scale Transcoder Real -Time Streaming, re-encoding and Transcoding Mini Server

TBS8502 Small-Scale Transcoder Real -Time Streaming, re-encoding and Transcoding Mini Server

  • item#: TBS8502
  • Price:
  • Start from: 1 Unit(s)
  • Weight: 15000 g(s)
  • Ship From: China
  • You will earn 0 Points for buying this product. How to Use ?

If you need more, please Contact us directly.


TBS8502 card configurations
incl. 1x TBS6904 DVB-S2 Quad Tuner PCIe Card incl. 1x TBS6205 DVB-T2/T/C Quad TV Tuner PCIe Card incl. 1x TBS6909 DVB-S2 8 Tuner PCIe Card incl. 1x TBS6209 DVB-T2/C2/T/C/ISDB-T OctaTV Tuner
    Quantity: Unit(s)
      • Shipping Methods
      • Payment Methods


      Customers are increasingly watching video content in mobile or other portable devices. To enable this "any video to anydevice" environment, TBS provides a cost-effective and scalable solution – TBS8502 Mini real-time transcoder that is able to mesh with exist system infrastructure, seamlessly adapt to codec changes, and repurpose contents from different source andformats.

      Featuring multiplexing, scrambling and transcoding capabilities, TBS8502 is an ideal server for small-scale IPTV/OTT system to transcode SD and HD MPEG-2 and MPEG-4 AVC (H.264)/HEVC (H.265) video and audio.


      • Multiple recourse inputs: DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI and IP streams.
      • Enable to transcode up to 40 SD or 15 HD channels simultaneously.
      • HD to SD down conversion.
      • Supports SD/HD MPEG-2, MPEG-4 AVC, MPEG-4 HEVC re-encoding and transcoding.
      • Multiple inputs and output for multiscreen transcoding.
      • Audio transcoding and automatic audio leveling adjustment.


      • IPTV/OTT
      • Digital Signage
      • Video Conference
      • Replace HD Video Capture Card
      • Hotel TV system
      • Live Broadcast;
      • Teaching/Campus Broadcast
      • Recording System


      Connector Type: DVBS/S2,DVBT/T2,DVBC,ATSC,ISDBT,DTMB,HDMI,ASI, and RJ45
      DVB Tuner Transponders: Up to 8 transponders
      MPEG Transport Streams: MPTS and SPTS
      IP protocol: UDP, RTP, HTTP, HLS, Media Files
      Addressing: Unicast and Multicast
      Descramble: Soft-CAM descrambling
      Re-Encoding/Transcoding Scalability:
      SD/HD Re-encoding /Transcoding: Up to 40 SD channels
      Up to 15 HD channels
      HD to SD Down Conversion: Up to 15 HD to SD Conversion
      Logo Insertion: Yes
      Subtitle Display: Yes
      Deinterlace: Default, Close, Linear, Blend, Yadif
      PID Configuration: PMT/Video/Audio PIN; PCR delay/disp interval
      Video Processing
      Video Input Bitrate: SD MPEG-2: 0.5-12Mbps
      HD MPEG-2: 0.5-50Mbps
      SD MPEG-4 AVC: 0.5-12Mbps
      HD MPEG-4 AVC: 0.5-30Mbps
      HD H.265/HEVC : 0.5-30Mbps
      Bitrate Control: VBR, CBR
      Frame Rate: 2-30fps
      B-Frame: 2 (default)
      Key Frame Rate: 1-18
      Scale: Ordinary, Auto Padding intelligent Scale
      Fast Mode: Quality Priority, Balanced, Speed Priority
      Audio Processing
      Numbers of Encoding: 1 Audio channel for 1 Video source
      Audio Encoding: AAC, MP3
      Audio Track: 0, 1, 2, 3
      Sample Rate: 8khz to 48khz
      Bitrate Rate: 8kbps to 384kbps
      Management Environment
      Configuration: Web User Interface Power Supply: 110 – 240 VAC
      Port: RJ45, 100/1000m Base-T Power Consumption: 250W
      Language: English (Default) Dimensions/Weight: 44*39*5cm/14kg
