Connect – Configure –
Watch/ Stream!

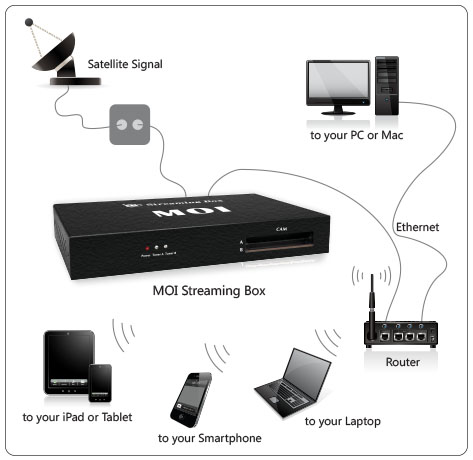

Connect MOI with satellite
signal and the router;
Configure the client end
(Windows/ Linux/ Android/ iOS);
Watch/stream the TV
channel from MOI!
| Device | Processor: Cortex TM-A8 1GHz |
| RAM : 512MB DDR2 | |
| Storage: 256MB SLC NAND Flash, 1 SD Card slot | |
| Ethernet: 10/100M Ethernet | |
| USB Ports: High Speed 2.0 USB Host | |
| Operating System : Linux | |
| DVB S2 Tuner | Supported digital TV standards: DVB-S, DVB-S2 |
| Demodulator :DVB-S2/DVB-S QPSK 8/16/32 APSK CCM | |
| Symbol Rate: DVB-S/S2 QPSK 1~45Msps | |
| Receiving Frequency: 950~2150 MHz Tuning Range | |
| Input level: -69~-23dBm | |
| Carrier Capture Range: ±10MHz | |
| 8PSK Puncture codes: 3/5,2/3,3/4,5/6,8/9,9/10 | |
| QPSK Puncture codes: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |
| 16PSK Puncture codes: 2/3,3/4,4/5,5/6,8/9,9/10 | |
| 32PSK Puncture codes: 3/4,4/5,5/6,8/9,9/10 | |
| Soft Support | MOI: TVHeadend, DVBLast, mumuDVB, szap, scan |
| Client: XBMC, VLC |
